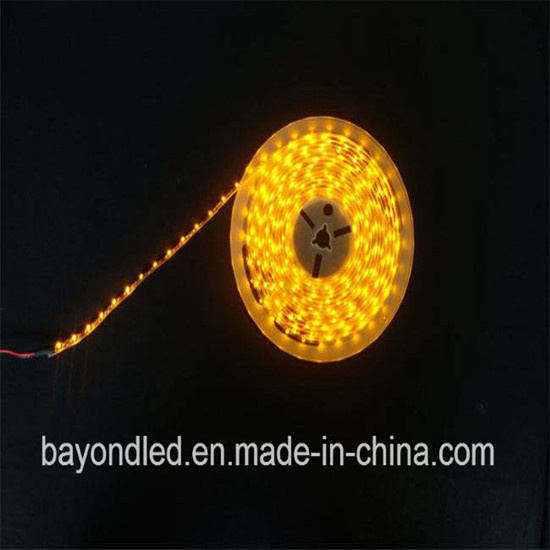

China Factory Yellow Flexible LED Strip Light
Led sources | 3528 flexible led strip series |
Led quantity | 30led/m,60led/m,120led/m,240led/m |
Power | 2.4w, 4.8w, 9.6w, 19.2w |
Voltage | DC12V |
Size | 5000x8x2mm |
Packing | 5meters/roll |
Color | Red,Blue,Yellow,Green, White, Pure white,Cool white,Warm white, Pink,RGB |
Chip: | Epistar |
Lamp material | double layer PCB |
Light beam angle | 120-160 |
CRI(Ra) | 80 |
Luminosity rate | 180lm/30led,360lm/60led,720lm/120led,1440lm/240led |
IP class | Ip20, Ip65, Ip67, IP68 |
Waterproof | have waterproof and non-waterproof |
Color Temperature(CCT) | White:3000-12000k |
Working temperature | -40~+60 |
Storage temperature | -40~+60 |
Warranty | 2years |
Life span | 30000-50000hours |
Certificate | CE and ROHS |
Related LED strip:
Single color LED strip:
Number | Model | LEDs | Voltage | color | Feature |
BY-ST5630CW30 | SMD5630 LED strip | 30LED/m | DC12V | R,Y,B,G,W | 5m per roll |
BY-ST5630CW60 | SMD5630 LED strip | 60LED/m | DC12V | R,Y,B,G,W | 5m per roll |
BY-ST5050CW30 | SMD5050 LED strip | 30LED/m | DC12V | R,Y,B,G,W | 5m per roll |
BY-ST5050CW60 | SMD5050 LED strip | 60LED/m | DC12V | R,Y,B,G,W | 5m per roll |
BY-ST3528CW30 | SMD3528 LED strip | 30LED/m | DC12V | R,Y,B,G,W | 5m per roll |
BY-ST3528CW60 | SMD3528 LED strip | 60LED/m | DC12V | R,Y,B,G,W | 5m per roll |
BY-ST3528CW120 | SMD3528 LED strip | 120LED/m | DC12V | R,Y,B,G,W | 5m per roll |
BY-ST3528CW240 | SMD3528 LED strip | 240LED/m | DC12V | R,Y,B,G,W | 5m per roll |
BY-ST3014CW60 | SMD3014 LED strip | 60LED/m | DC12V | R,Y,B,G,W | 5m per roll |
BY-ST3020CW60 | SMD 3020 LED strip | 60LED/m | DC12V | R,Y,B,G,W | 5m per roll |
BY-ST2835CW60 | SMD2835 LED strip | 60LED/m | DC12V | R,Y,B,G,W | 5m per roll |
BY-ST335CW60 | SMD335 LED strip | 60LED/m | DC12V | R,Y,B,G,W | 5m per roll |
RGB LED strip:
BY-ST5050RGB30 | SMD5050 LED strip | 30LED/m | DC12V | RGB | 5m per roll |
BY-ST5050RGB60 | SMD5050 LED strip | 60LED/m | DC12V | RGB | 5m per roll |
Full color addressable LED strip:
Number | Model | LEDs | Voltage | IC | IC quantity | PCB Width |
ST-6803-30D | SMD5050 LED strip | 30LED/M | DC12V | LPD6803 | 10PCS/m | 12mm |
ST-2811-30D | SMD5050 LED strip | 30LED/M | DC12V | WS2811 | 10PCS/m | 10mm |
ST-2811-48D | SMD5050 LED strip | 48LED/M | DC12V | WS2811 | 16PCS/m | 10mm |
ST-2811-60D | SMD5050 LED strip | 60LED/M | DC12V | WS2811 | 20PCS/m | 10mm |
ST-1903-30D | SMD5050 LED strip | 30LED/M | DC12V | UCS1903 | 10PCS/m | 10mm |
ST-1903-48D | SMD5050 LED strip | 48LED/M | DC12V | UCS1903 | 16PCS/m | 10mm |
ST-1903-60D | SMD5050 LED strip | 60LED/M | DC12V | UCS1903 | 20PCS/m | 10mm |
ST-1812-32D | SMD5050 LED strip | 32LED/M | DC12V | TM1812 | 8PCS/m | 12mm |
ST-1812-60D | SMD5050 LED strip | 60LED/M | DC12V | TM1812 | 5PCS/m | 12mm |
ST-1812-120D | SMD5050 LED strip | 120LED/M | DC12V | TM1812 | 10PCS/m | 20mm |
ST-1812-144D | SMD5050 LED strip | 144LED/M | DC12V | TM1812 | 12PCS/m | 20mm |
ST-1003-30D-A | SMD5050 LED strip | 30LED/M | DC5V | INK1003(build-in) | 30PCS/m | 10mm |
ST-1003-60D-A | SMD5050 LED strip | 60LED/M | DC5V | INK1003(build-in) | 60PCS/m | 10mm |
ST-1003-30D-B | SMD5050 LED strip | 30LED/M | DC5V | INK1003(build-in) | 30PCS/m | 12mm |
ST-1003-60D-B | SMD5050 LED strip | 60LED/M | DC5V | INK1003(build-in) | 60PCS/m | 12mm |
ST-1003-30D | SMD5050 LED strip | 30LED/M | DC12V | INK1003 | 10PCS/m | 10mm |
ST-1003-48D | SMD5050 LED strip | 48LED/M | DC12V | INK1003 | 16PCS/m | 10mm |
ST-1003-60D | SMD5050 LED strip | 60LED/M | DC12V | INK1003 | 20PCS/m | 10mm |
ST-2812-30D | SMD5050 LED strip | 30LED/M | DC5V | WS2812B | 30PCS/m | 10mm |
ST-2812-60D | SMD5050 LED strip | 60LED/M | DC5V | WS2812B | 60PCS/m | 10mm |
ST-2812-144D | SMD5050 LED strip | 144LED/M | DC5V | WS2812B | 144PCS/m | 12mm |
ST-2801-32D | SMD5050 LED strip | 32LED/M | DC5V | 2801 | 32PCS/m | 12mm |
ST-1809-30D | SMD5050 LED strip | 30LED/M | DC5V | 1809 | 30PCS/m | 12mm |
ST-2821-36D | SMD5050 LED strip | 36LED/M | DC5V | 2821 | 6PCS/m | 12mm |
Hight voltage LED strip:
Number | Model | LEDs | Voltage | Color | Feature | Size |
BY-HV3528-220V | SMD3528 High Voltage LED strip | 60LED/m | AC220V | R,G,B,W | 100m/roll | 10.5*7.5mm |
BY-HV3528-110V | SMD3528 High Voltage LED strip | 60LED/m | AC110V | R,G,B,W | 100m/roll | 10.5*7.5mm |
BY-HV5050-110V | SMD5050 High Voltage LED strip | 60LED/m | AC110V | R,G,B,W | 50m/roll | 10.5*7.5mm |
BY-HV5050RGB-110V | SMD5050 High Voltage LED strip | 60LED/m | AC110V | RGB | 50m/roll | 10.5*7.5mm |
BY-HV5050Y60-110V | SMD5050 High Voltage LED strip | 60LED/m | AC110V | 1800K | 50m/roll | 12.5*7.5mm |
BY-HV5050Y60-220V | SMD5050 High Voltage LED strip | 60LED/m | AC220V | 1800K | 50m/roll | 12.5*7.5mm |
BY-HV5730-220V | SMD5730 High Voltage LED strip | 60LED/m | AC220V | WW,PW, CW | 50m/roll | 12.5*7.5mm |
BY-HV3014-220V | SMD3014 High Voltage LED strip | 120/m | AC220V | PW,WW | 100m/roll | 11.5*7.5mm |
Special Features
1: Type of Housing: Sealed with glue to reach IP65 or enclosed in a tube to reach IP65 or without housing as non-waterproof for indoor use
2: Minimal Flexible Diameter: >30mm
3: Cuttable Length: Every 3 LEDs can be cut, every 3 cut strips can be re-connected by special and patent(DIP) connector
4: Installation method: To peel off the 3M tape on the back of the strip
IP Rate: IP65
Packing:
We used anti-static bag and the outer carton as packaging material, and also do some protective measures to ensure the LED flexible Strip light safety during transportation.
Applications:
1. Architectural decorative lighting
2. Archway, canopy and bridge edge lighting
3. Amusement park, theater and aircraft cabin mood lighting
4. Emergency hallway lighting
5. Auditorium walkway lighting
6. Stairway accent lighting
7. Concealed lighting
8. Backlighting for signage letters
9. Channel letter lighting
10. Emergency exit path lighting
11. Cove lighting
