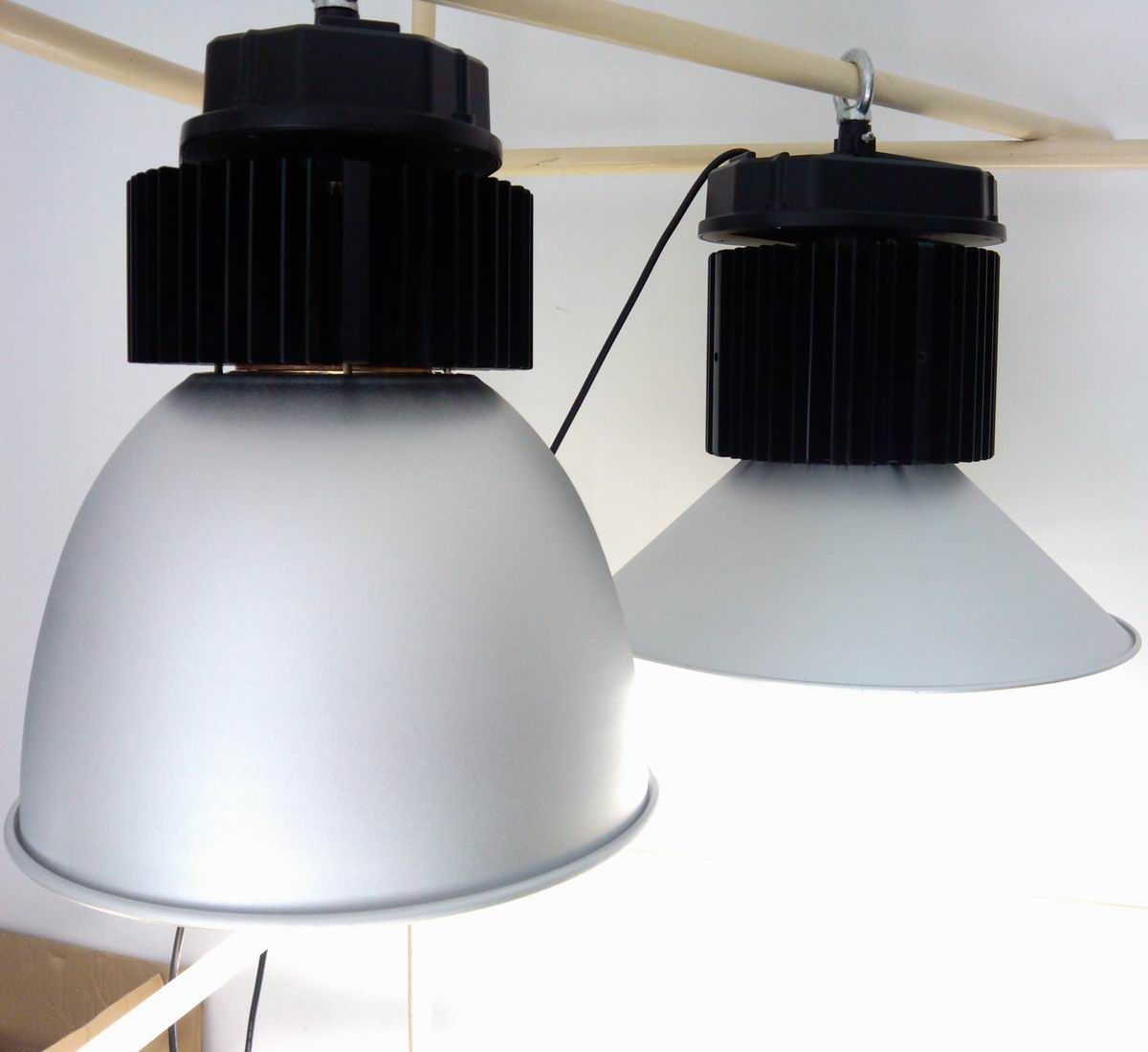

China 150W LED High Bay Light with 60 / 120 Deg Reflector

China 150W LED High Bay Light with 60 / 120 Deg Reflector
Price: US $ 239/Piece
Trade Terms: FOB,CIF,DAP
Min Order: 2/Piece
Pay Type: T/T,Paypal,Western Union
Forcate Super Quality 150W LED High Bay Light, 150W professional warehouse led bay light , 150W led bay light was 100% independent design with Red Copper Plate heatsink & Heavier Aluminum Housing.
Patented Oval Heat dissipation make whole light temperature less over 5ºC , longer lifespan guaranteed !

Technical Parameters:
Stable Quality 150W LED High Bay Light
Power150 Watts
Input VoltageAC100-277V, 50/60Hz
Beam Angle60° / 120°
MaterialAluminum + Copper plate Heat Sink
ReflectorPC /  Aluminum
CRI>80 or >85 for optional
LED BrandBridgeLux  45mil
LED Colour3000K  4000K  5000K  6000K
LED DriverMean-well driver, CE/ETL/UL/TUV/SAA/C-TICK approved
Power Factor>0.98
Installation TypeHanging, contains hook
Connect wire3*1.5 m rubber wires
IP GradeIP44 / IP65
Warranty5 Years
PackingLight body: 1PC / Box,  2PCS/Carton
Reflector: 10 pcs/ carton

Main Features & Advantages:

1. LED Chips
     BridgeLux 45mil super bright led chips with 120LM/W. Whole led light bay light efficiency >85lm/W
    Using 500W bigger packed fixture, wider heat plate, a mor uniform distribution of light souce.

2. LED Driver
    Famous Mean-well UL/CUL/ETL/CB/PSE/CE approved led driver.
    5 Years warranty and whole life time maintance service.
    Class II & DC low voltage output, safe protection.
    Quick connectors easier for replacement.
    PF>0.98,   Efficiency > 91%
    IP 65-IP67 Waterproof
    VDE / TUV approved cables

3. Heat Sink
     100% independent oval design, wider cooling area Aluminum Housing heat sink + red copper plate & inner red copper cylinder make high bay light temperature decrease over 5 ºC , longer lifespan guarantted.

4. LED Lens
    Use optical lens, made by SGS & RoHS approved PC materials, uniform lighting, no astigmatism.
    Light transmittance: >91%

5. Reflector
     Both 60/120 Degs Aluminum reflector & 60 degs Plastic reflector are available.

LED high bay lights are widely used in factory, food processing , filming tent, warehouse, subway, exhibition hall, Mine, Shipyard, Tunnel, Parking lot, School, etc.

Light body & reflector packed separately
For light body: 1 PC / carton box (inner EPE+PE bag)
For reflector: 10 PCS/ Carton box (inner PE bag + outer wood bracket )

Step 1.
Take out led high-bay light & fittings from packing boxes.
The whole led light bay light contains: 1 pc light body + 1 pc reflector + 1 hook
Step 2.
Install hook & reflector
a. Turn hook on top of light body
b. Loosen screws (4 pcs )
c. Install reflector & turn to the right position (on heat-sink)
Step 3.
Hung the whole led high bay light to a suitable load hook
Step 4.
Connect Wires
3*1.0-1.5m cables, length 1.0-6.0 is available

Prod Model: FOR-HBL-150A
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Heat Sink: Red Copper Plate + Aluminum
Light Efficiency: 120 Lm/W
Reflector: Aluminum or Plastic
Warranty: 5 Years
CRI: >80 or >85
LED Driver: Mean-Well UL/ETL/GS/CE/PSE Approved
Certification: SAA
Color Temperature: 3000k 4000k 5000k 6000k
Color: Black & Silver
Lamp Body Material: Copper + Aluminum
Usage: Mine, Warehouse, Factury, Exhibition,Shipyard
IP Rating: IP44 & IP65 for Optional
Beam Angle: 60 or 120 Deg
LED Chips: Bridgelux
