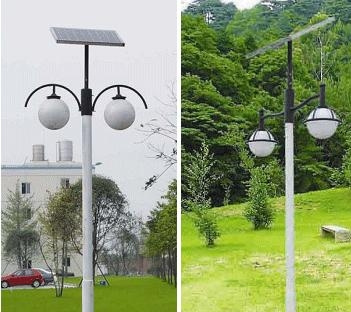

Cheap & Quality 10W~20W~30W LED Solar Garden Light
Price: |
US $ 88-888/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
We design & manufacture all kinds of 10W~20W~30W Solar LED garden Light
Features
Light Pole:
2~6m high Hot-dipped galvanized pole and surface spray treatment/powder coated.
Guaranteed warranty for entire system for 3 years, during which there any problem found, repair or replacement shall be provided free of charge ,also guarantee for life long repair.
System voltage: 12 or 24V DC
Light source: High-power LED
Total luminous flux: 3000 to 6000lm
Luminous flux: ≥ 100lm/W
Working each day: 4 to 12 hours (may design into full power illumination mode or an energy-saving mode (customized))
Number of overcast and rainy days: 2 to 7days (customized)
Illuminance: 10- to 45-lux (customized)
Wind resistance: 41.4m/s
Solar panel:
10~90W Mono or polycrystalline with high conversion efficiency
Life expectancy: ≥ 25years
Storage battery:
Type: Valued-controlled and sealed maintenance-free gel storage (for solar energy only) Life expectancy: 5 to 7 years
Controller:
Microcomputer intelligent waterproof with anti-overcharge, -over discharge, light and time control functions
Life expectancy: ≥ 5 years
Box:
Mold-pressing forming, fully-sealed waterproof, nice insulation effect
Life expectancy: ≥ 20 years
Light source lifespan: ≥ 50, 000 hours
Note:
Configuration said above is for reference only, actual configuration is designed according to local climate conditions and customer requirements
Payment Terms:
T/T, L/C or Western Union
Minimum Order:
1 to 99 Set
Delivery Details:
FOB Port:
Yangzhou
Lead Time:
7 - 15 days
Pole
Material: Q235 or die-cast aluminum
Height: 2-6m
Thickness: 2.5mm,2.75mm, 3mm
Finish: Hot-dip Galvanize, powder coating
Fastener:Made of stainless steel with high intensity and corrosion protection.
Life span: 25years
Details see CAD drawing of poles of different cases
Light
Power:10-30W
energy-saving light, LED light
Working temperature: -60 to +70 centigrade
IP rating: IP65
Working life: >50000hours
Solar panel
Power 15-90W
Mono-crystalline panel or Polycrystalline panel
Power tolerance : ±5%
Cell efficiency:15%-17%
Working temperature: -40°C to 85°C
working life ≥ 20 years
Battery
Solar Gel Battery (12V & 24V)
l Chinese leading manufacture of solar gel battery
l Maintenance-free Gel battery
l Long life span: Gel electrolyte – no acid layer, no leaking
l Echo-friendly: No Cadmium. No leaking
l Working temperature: -40 to +50 centigrade
l Easy transportation with no leaking of battery
l working life ≥ 3 years
Battery box
Waterproof
Anti-corrosion
Pressure resistant
Heat protection
Life span: 20years
Controller
Intelligent sensor of
l Light control
l Time control
l Power control
l Over charging protection
l Discharging protection
l Short Circuit protection
l Reverse polarity protection
Prod Model: |
YCSG10-30 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
LED Power: |
10W~30W /12V/24V |
Solar Panel: |
Poly or Mono |
Pole: |
2m to 6m |
Light Type: |
LED |
Style: |
Modern simplism style |
Certification: |
RoHS |
Warranty Period: |
3 Years |
Technics: |
Electroplating |
IP Rating: |
IP65 |
Material: |
Aluminum Alloy |
Voltage: |
12V/24V/220V |
Yangzhou Youchuang Renewable Energy Co., Limited, Established in 2007, an ISO 9001: 2000, TUV, IEC, CE&EN, RoHS, SONCAP CCPIT and CCC approved manufacturer and trading Group company.
Overseas Exploration and Popularity:
We had successfully sold our solar street lights and solar panels to overseas markets more than 60 Countries such as the sri landka, USA, Canada, UK, Greece, France, Italy, Australia, Turkey, Jordan, Saudi Arabia, Iraq, UAE, India, Philippines, Pakistan, Cambodia, Taiwan, Nigeria, Ghana, Congo, South Africa, Mexico, Haiti, etc.
For the Future:
With advanced manufacturing & testing equipments, our factories are growing better and better. We hope to cooperate with more partners and distributors to develop more business to create prosperous win-win partnerships. OEM is available. Welcome your inquiry mail or call.
Main Products:
Solar Street Lights & Solar Street Lighting & LED Solar Street Lighting;
Solar Garden Lights & Solar Landscape Lights;
Solar Panel & Solar Modules.
Small Solar Home System,
POLE,
LED light
Attention: We are good at
1: Designing, producing, installing solar 10W-120W Solar LED street lights
2: Designing, producing 10W-240W LED Lamp for outdoor street and road using.
3: Producing solar panel below 315W
4. Solar Battery 7Ah-300Ah/12V
5. solar garden light.
OEM Service for solar lighting and PV panel is available.
. Welcome to contact us for details!
