Charge Controller & Pole Solar LED Street Light

Charge Controller & Pole Solar LED Street Light
Price: US $ 500-1200/Set
Trade Terms: FOB,CIF,EXW
Min Order: 10/Piece
Pay Type: L/C,T/T

All in one 15W 20W 30W 40W 60W 80W 100W Solar Street Lights prices of solar led street lights manufacturer



We Are Manufacturer

Since 1998, we've manufactured solar street lights for over 15 years.

We manufacture main components from LED Lights, light fixture, solar panel, pole and even painting powder to control the cost and quality.



Specifications



30-400W solar street lights

Light Fixture

Material

Aluminum die casting & Toughened glass

Operating Temperature

-40°C~75°C

Protection Level

IP65

LED Chip

BRIDGELUX / Cree (Top brand in U.S.A.)

Color Temperature

3800-6500K(white)

Luminous flux

5300 LM

Operating temperature

-40°C~75°C

Current Source

DC 12V/24V

Power

15W/18W/21W/24W/30W/36W/42W/48W/54W/60W

Lighting Pole

Height

3m/ 4m/ 5m/ 6m/ 7m/ 8m/ 9m/ 10m/ 11m/ 12 m

Material

BAOSTEEL GROUP Q235/345/GR60

Surface Treatment

Hot-dip galvanizing, Static spray,

Size

φ60-φ200,δ3-5m, vary according to models

Flange Plate

300*300*16, vary according to models

Battery

Capacity

200AH (100AH*2pcs)

Type

Gel/AGM Battery

Dimension

546*1203*30

Weight

28Kg

Controller

Rated voltage and current

12V/10A or 24V/10A waterproof

Weight

0.165Kg

Two times rainy day backup

&Protective Function

Two times of rainy day backup.

Accessories

Cable

2.5 mm2, 15m

Battery Box

200AH ABS battery box or metal box with hot-dip galvanizing spray treatment

Foundation Kit

Dismountable foundation kit, saving in shipping

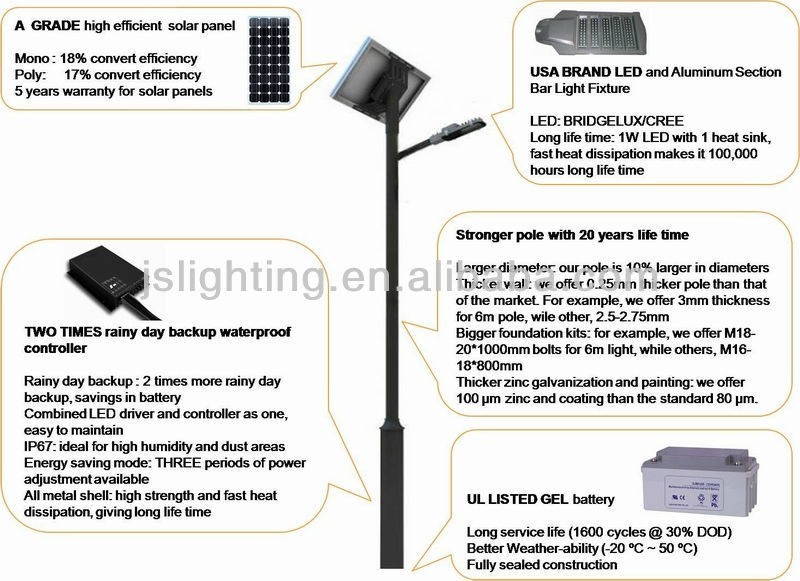

Solar LED Light Details





A GRADE high efficient solar panel

Mono: 18% convert efficiency

Poly: 17% convert efficiency

5 years warranty for solar panels



USA BRAND LED and Aluminum Section Bar Light Fixture

LED: BRIDGELUX/CREE

Long life time: 1W LED with 1 heat sink, fast heat dissipation makes it 100,000 hours long life time



STRONGER POLE with 20 years life time

Larger diameter: our pole is 10% larger in diameters

Thicker wall: we offer 0.25mm thicker pole than that of the market. For example, we offer 3mm thickness for 6m pole, while other, 2.5-2.75mm

TWO TIMES rainy day backup waterproof controller

Rainy day backup: 2 times more rainy day backup, savings in battery

Combined LED driver and controller as one, easy to maintain

IP67: ideal for high humidity and dust areas

UL LISTED GEL battery

Long service life (1600 cycles @ 30% DOD)

Better Weather-ability (-20 ºC ~ 50 ºC)

Fully sealed construction

 Standard Features

- Solar panel: 20 years power generation capacity

- LED light: ultra bright LEDs that last up to 50,000 hours

- Controller: typical operating life of 10 year, auto ON/OFF operation

- Pole: up to 25 years long life time

- Battery: long life of up to 5 years



Certification



SERVICES



WARRANTY

BAODE guarantees the purchaser for the period of two (2) years that BAODE's solar street lighting systems will be free from defects in materials and workmanship. BAODE will, at its option, repair or replace any BAODE's system that is defective for a minimum of two (2) years after the date of purchase.



INSTALLATION

BAODE offers detailed instructions and videos for installation of solar led lights. Besides, BAODE can provide onsite installation training and technical assistance free of charge in initial period for large projects more than 100 poles because we has developed her experienced technical team.



Prod Model: BDSSL-0012
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Light Source: LED Lamp
Lamp Body Material: Aluminum Alloy
Light Type: Solar
Color Temperature: Pure Wihte
Power: ≥30W
Technics: Electroplating
Illumination Time: 10h
Charging Time (',H): 10
Usage: Street
IP Rating: IP65
Certification: FCC
Voltage: 12/24V
With Light Source: With Light Source
Cell Type: Gel Battery
Jiangsu Baode Lighting Equipment Co. Ltd. is located in Songqiao industrial zone in the north of Yangzhou city, Jiangsu province, and enjoys highly convenient communications and smooth traffic access.

Under the leadership of Mr Baosheng Zhang, Baode has been advocating a corporate spirit of good faith, high efficiency and moving with the times. After over ten years of hard work it has grown into a big enterprise with registered capital up to 8, 038 million yuan, annual sales of over one hundred million yuan and covers an area of 40, 000 square meters. Baode has over 50 high level intellectuals, experts and technical staff and boasts over 120 sets of large and medium-sized equipment. It has set up long-term corporation with Shanghai Yaming, Nanjing Sanle, Shenzhen Gaolite and Wuxi Zhenfa in the transmission and distribution lines and solar panels. So far Baode has over ten patent technologies. The Jiaozi lamp series and solar powered lamps have been widely used in the industry.

In order to build up the brand name "Luyou" and keep the company growing, Baode stresses the concept of quality. Baode has established a full series of rules for labor management, production management and quality management, has formulated technological flows, quality criteria and rules of encouragement and discipline on the basis of different work positions and maintains real time control over the production process by means of a CCTV monitoring system. The Q. C. Department of the company maintains strict discipline in controlling product releases to ensure all the products delivered are 100% qualified to achieve zero returns. Based on goodwill, advanced technology, excellent product quality and reasonable prices we have won abroad market share and trust from our customers. Baode has been involved in national key projects many times. "Luyou" brand lamps have been used in Beijing, Shanghai, Tianjin, Qinghai's Ge'ermu airport, the sea-spanning bridge of Quanzhou in Fujian province and the seaside Bath site on Huludao island, in Liaoning province. The lamps have also experienced the test of severe cold, wind and snow in Harbin and Lhasa. At the same time Baode products have been sold in Europe, America, South-east Asia, MID-Asia, Australia and Africa and received high praise from overseas customers.

For many consecutive years, Baode has been appraised as a "faithful and trustworthy enterprise", "the enterprise with the top credit rating of AAA", "an excellent company in standard implementation" and "an outstanding enterprise in quality management". It has received accolades as a well-known brand of Yangzhou and of Jiangsu province and is recognized for the certification of its high-tech solar street light. It is also successfully certified with ISO9001: 2000, ISO14001: 2004, CCC, CQC and has been granted the permit for the use of high mast lamps at airports, issued by the CAAC. Baode has also been granted the "Permit for safety production" and the"Qualification of road lighting construction", "Certification of transformation of steel tubular structure products", "Radio communication towers and mast production certificate" and "Traffic lights certificate" among others.

Baode is ready to work with old and new customers in full sincerity to make the night of the world more colorful.
