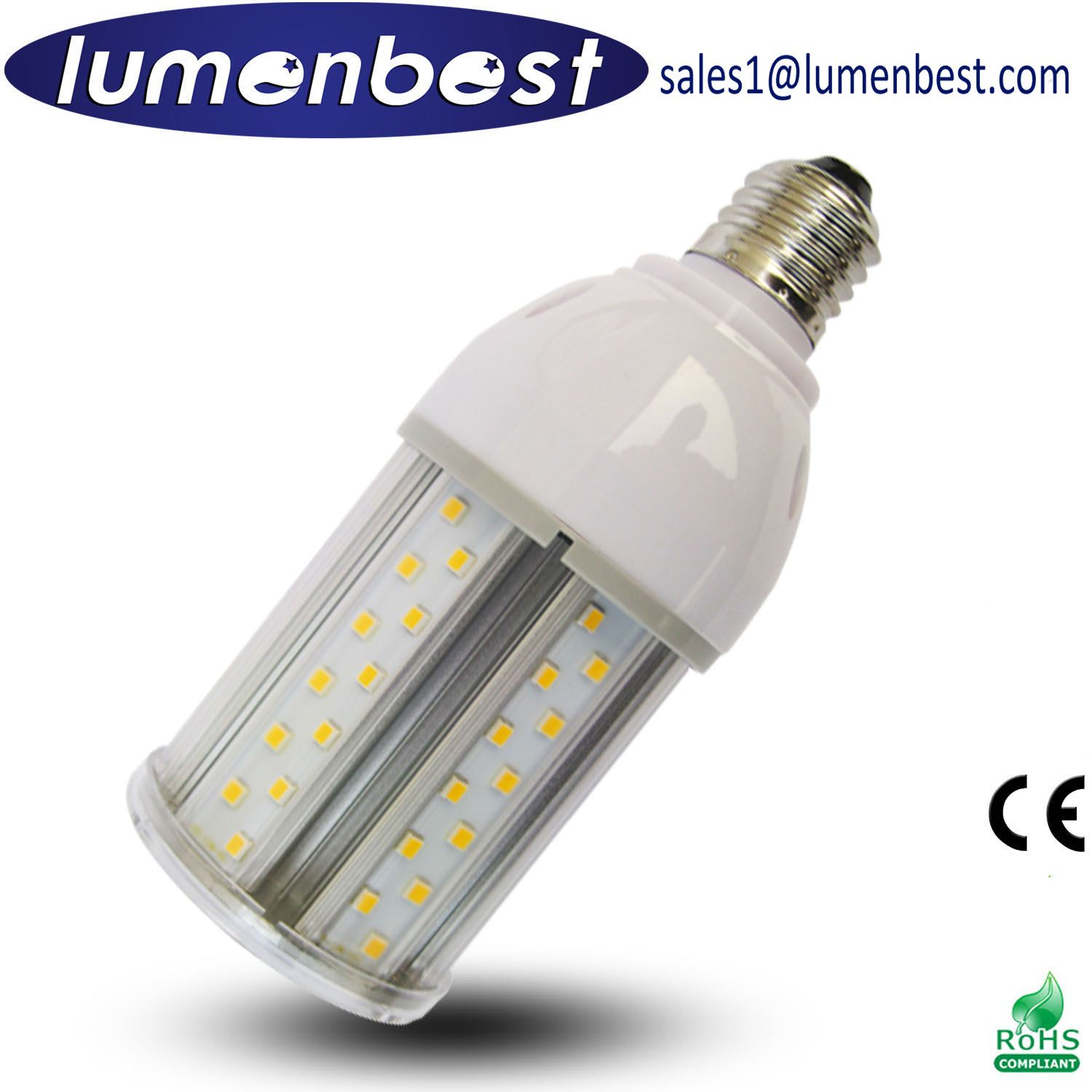

cETLus ETL Retrofit Approval 12W LED Corn Light

cETLus ETL Retrofit Approval 12W LED Corn street industrial light

1.led corn light for garden
2.good quality, best price
3.warranty: 3 years
4.CE Rohs certificated

Product detals

ITEM NO.		View angle	LED QTY	Power	LED Type.	Voltage	Lumens	Base	Color Temperature	Life
							(Lm)
LBCO-4M	E27 155*Φ64     E40 160*Φ65	360   Milky cover or clear cover	96 SMD	12W	Epistar 2835	AC 100-300v	1440 Lm	E27, E40	2700K-7000K	>50,000 hrs

Item model: E40/E39/E27/e26
PC cover: transparent / Milky
Voltage : AC85V-265V 50-60Hz
Power: 12W
Power factor: ≥ 0.95
LED quantities: 96
LED light source: Epistar 2835
Luminous Flux: 1440 LM
Luminous efficiency: 120LM/W
CRI: Ra ≥ 80
CCT: warm white (3000k-3500k),natural white (4000k-4500k), cool white (5500-6500k)
Light angle: 360 °
Working temperature: -35 ºC to 50 ºC
Certification: CE, ROSH
Warranty: 3 years
Size: 65*173 mm
Net weight: 240g
IP Class:IP64


Quick Details
Light Source: LED
Item Type: Bulb Lights
LED Light Source: Epistar 2835
Type: Corn Lights
Input Voltage(V): 100-300V
Lamp Power(W): 12
Lamp Luminous Flux(lm): 1440Lm

CRI (Ra>): 80
Color Temperature(CCT): 2700-7000K
Working Temperature(ºC): -35/+50
Working Lifetime(Hour): 50000
Lamp Body Material: Aluminum
Certification: CCC, CE, EMC, ETL, FCC, LVD, PSE, RoHS,CETLUS,Retrofit
Base Type: E39,E40
Place of Origin: Zhejiang, China (Mainland)
Brand Name: Lumenbest
Model Number: LBC04M
Power: 12W
Input voltage: AC 100-277V,50/60HZ
LED Brand: Epistar
Beam Angle: 360
Color Temp: 2700K-7000K
CRI: CRI>80
FC: >0.95,         IP 64
Life span: >50000 hours
Size: E40 295*120

Features of the Products:
1.High brightness,small volume, light weight, replace conventional CFL,incandescent lamp.
2.80% more energy  saving compared with conventional  lights
3.Special surface design for heat dissipation
4.Certificate: CE,RoHS,ETL,CETLUS,Retrofit
5.Beam Angle:360 degree


Applications:
1.Warehouse, indoor lighting, street landscape.
2.Conference / Meeting rooms/  Commercial Complexes
3.Residential / Institution Buildings/ Schools, Colleges / Universities
4.Places where need energy saving and high color rendering index lighting

Note:
The warehouse must work under the right voltage according to the specification.cut off the current before installation, and make sure the voltage is in right range,Recommend indoor use.

Item Technical Data
Series	LBCO04M	LBCO05M	LBCO06M	LBCO07M	LBCO08	LBCO09
Voltage	AC100-300V/ DC12-24V	AC100-300V/ DC12-24V	AC100-300V/ DC12-24V	AC100-300V/ DC12-24V	AC100-300V/ AC120-347V	AC100-300V/ AC120-347V
Lumen	1440Lm	1920Lm	2400Lm	2880Lm	3250Lm	4320Lm
Watt	12W	16W	20W	24W	27W	36W
Power factor	>0.95	>0.95	>0.95	>0.95	>0.95	>0.95
CRI	>80	>80	>80	>80	>80	>80
LED type	Epistar 2835	Epistar 2835	Epistar 2835	Epistar 2835	SAMSUNG or SEOUL 5630	SAMSUNG or SEOUL 5630
LED QTY.	96pcs	112pcs	135pcs	165pcs	90pcs	117pcs
Color	WW/NW/CW 2700K-7000K	WW/NW/CW 2700K-7000K	WW/NW/CW 2700K-7000K	WW/NW/CW 2700K-7000K	WW/NW/CW 2700K-7000K	WW/NW/CW 2700K-7000K
Dia.[φ]*H	64*155 (150)MM	64*165 (170)MM	64*165 (170)MM	64*185 (190)MM	93*205 (210)MM	93*237 (243)MM
Angle	360°	360°	360°	360°	360°	360°
Base	E26/E27/E39/E40	E26/E27/E39/E40	E26/E27/E39/E40	E26/E27/E39/E40	E26/E27/E39/E40	E26/E27/E39/E40
QTY	50pcs	50pcs	50pcs	50pcs	9pcs	9pcs
Carton	35*35-33(34)cm	35*35*34(35)cm	35*35*38(39)cm	35*35*42(43)cm	44*44*30cm	44*44*33cm
Packing Weight	14.5(16)kgs	15(17)kgs	17kgs	19kgs	9kgs	10kgs

Item Technical Data
Series	LBCO10	LBCO11	LBCO12/ TLLBCO12x60x	LBCO13/ TLLBCO13x80x	LBCO14	LBCO15	LBCO16	LBCO17
Voltage	AC100-300V/ AC120-347V	AC100-300V/ AC120-347V	AC100-300V/ AC120-347V	AC100-300V/ AC120-347V	AC100-300V/ AC120-347V	AC100-300V/ AC120-347V	AC100-300V/ AC120-347V	AC100-300V/ AC120-347V
Lumen	5400Lm	6480Lm	7200Lm	9600Lm	12000Lm	14400Lm	9880Lm	18000Lm
Watt	45W	54W	60W	80W	100W	120W	80W	150W
Power factor	>0.95	>0.95	>0.95	>0.95	>0.95	>0.95	>0.95	>0.95
CRI	>80	>80	>80	>80	>80	>80	>80	>80
LED type	SAMSUNG or SEOUL 5630	SAMSUNG or SEOUL 5630	SAMSUNG or SEOUL 5630	SAMSUNG or SEOUL 5630	SAMSUNG or SEOUL 5630	SAMSUNG or SEOUL 5630	SAMSUNG or SEOUL 5630	SAMSUNG or SEOUL 5630
LED QTY.	144pcs	162pcs	162pcs	240pcs	300pcs	336pcs	240pcs	392pcs
Color	WW/NW/CW 2700K-7000K	WW/NW/CW 2700K-7000K	WW/NW/CW 2700K-7000K	WW/NW/CW 2700K-7000K	WW/NW/CW 2700K-7000K	WW/NW/CW 2700K-7000K	WW/NW/CW 2700K-7000K	WW/NW/CW 2700K-7000K
Dia.[φ]*H	93*265 (270)MM	93*275 (280)MM	93*275 (280)MM	120*297MM	120*345MM	120*380MM	120*365MM	140*367MM
Angle	360°	360°	360°	360°	360°	360°	360°	360°
Base	E26/E27/E39/E40	E26/E27/E39/E40	E26/E27/E39/E40	E39/E40	E39/E40	E39/E40	E39/E40	E39/E40
QTY	6psc	6pcs	6pcs	6pcs	6pcs	6pcs	6pcs	6pcs
Carton	43*30*35cm	43*30*35cm	43*30*35cm	49*34*35cm	42*28*40cm	42*28*44cm	42*28*42cm	42*32*42cm
Packing Weight	8kgs	8.5kgs	8.8kgs	12.6kgs	14.8kgs	17.8kgs	13.5kgs	18kgs
