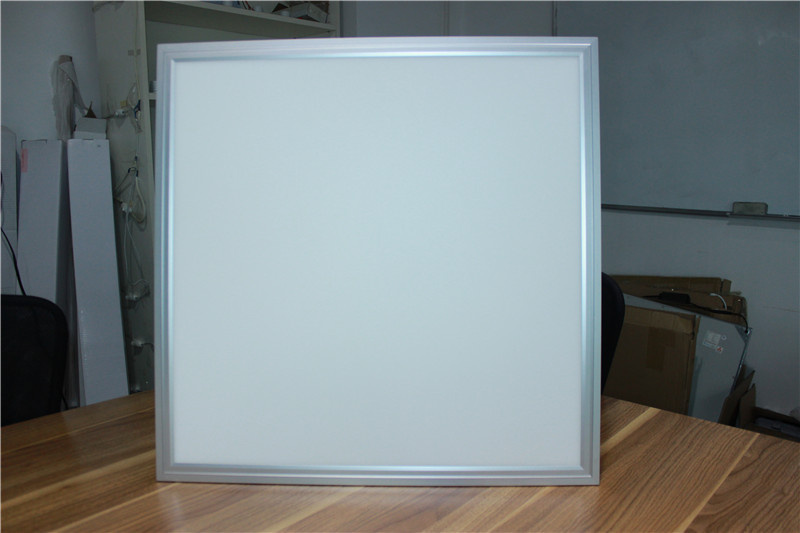

Ceiling Mount or Suspended IP44 30W 620X620mm LED Panel Light Price

Ceiling mount or suspended IP44 30w 620x620mm led panel light price

Advantages of our led panel 600 x600:
1.CE/RoHS certificated.
2. Philips driver.
3. 3years warranty.
4. Fast delivery.
5. 100lm/W
6. IES available

Features of ceiling lighting square  LED panel 600x600:
1. Energy saving: the brightness of the panel light than the equivalent of about 60% reduction in power consumption, power consumption than equivalent incandescent brightness decrease of about 80%, power PFC ≥ 92%, power conversion efficiency ≥ 88%, consistent with energy efficiency standards.

2. Environmental protection: infrared and ultraviolet spectrum free, free of harmful substances mercury content, meet RoHs requirements, led light source is typically green.

3. Life: LED life of up to 50,000 hours, or point that is light, there is no delay time, switching frequency does not affect the light source life.

4. Security: not easily damaged, green. Recyclable waste, no pollution; unlike fluorescent lamps contain mercury components panel, soft light, through the CE certification.

5. Wide scope of application: start at low temperature, normal and use. Common fluorescent panel lamp difficult to start at low temperatures, due to unique design, LED panel lights (special materials: aluminum shell + LGP + spread sheet), light emitted by the surface uniform light, look no glare, greatly reducing human eye injury, relieving eye fatigue, especially for hospitals.

6. Adaptation places: hospitals, offices, retail stores, supermarkets, schools, hotels, factories, car parks and other indoor places to use.

2ft*2ft LED Panel Light Installation:

A. Recessed installation
1. As the image-1, cut a hole with suitable size on the ceiling, and set the T-shape keel beam in advance(please refer to the products cut hole size table);
2. Make the lamp house installed in the hole, then connect the electric supply L, N electrodes to the related Led controllers' L, N.;
3. Set the lamp body steadily on the T-shape keel beam, turn on the power;
Attention: If your T-shape keel beam cannot be able to bear the lamp's weight or any other risks, please add the steel ropes to guarantee the installation's stable.


B. Surface mounted installation
1. As the image-2, set the steel ropes fixed on the ceiling.
2. Set the steel steel ropes connected to lamp house stability, then adjust the rope length to make the lamp house on horizontal position.
3. Connect the electric supply L, N electrodes to the related Led controllers' L, N.
4. Turn on the power
Attention: The led light source cannot to be replaced, please do not open the lamp body or unscrewed the screws among the LED light source, or the heating performance of the LED light source will be influenced, make the lifespan shorter, even the led burnt.

C. Suspension installation

Caution:

1. The lamp body cannot be able connected to the AC Commercial power directly, must via the led controller to supply.

2. According to the actual requirements, equip with the appropriate accessories, confirm the installation before put an order.

3. Cut off the power when you install or remove the light to protect exposed wiring.

4. Do not use organic solvents to clean the surface to prevent corrosion of plastic diffuser.

5. For good heat dissipation, suggest tearing up the protective film of the aluminum backboard after installation.

Item	Description
30w led panel light	30W, 100lm/W, ERP, IP44, CE, ROHS, Philips driver, Epistar chips
