LED High Bay Light High Bay Light LED Highbay light/Highbay light
Using CREE and famous brand Fuyuan or MEAN WELL driver UL listed, driver internal or external, 4ys warranty, CE RoHS PSE.
LED High Bay Light 30W 50W 80W 100W 120W 150W 160W 180W 200W
----Basic Parameter----
1. Input power: AC85-265V
2. Beam angle: 60/90/120°
3. CRI: >75Ra
4. Main material: Aluminum + PC
5. Life Span: >50000h
6. LED chip: CREE
7: CCT: 5800~6300K, 4000-4500K
8. Work Tempreture: -20~45ºC
9. Lamp Base: G13
10. IP 54
11. Recommendation Installation Distance: 15-20m
12. CE RoHS PSE
----Detailed Description----

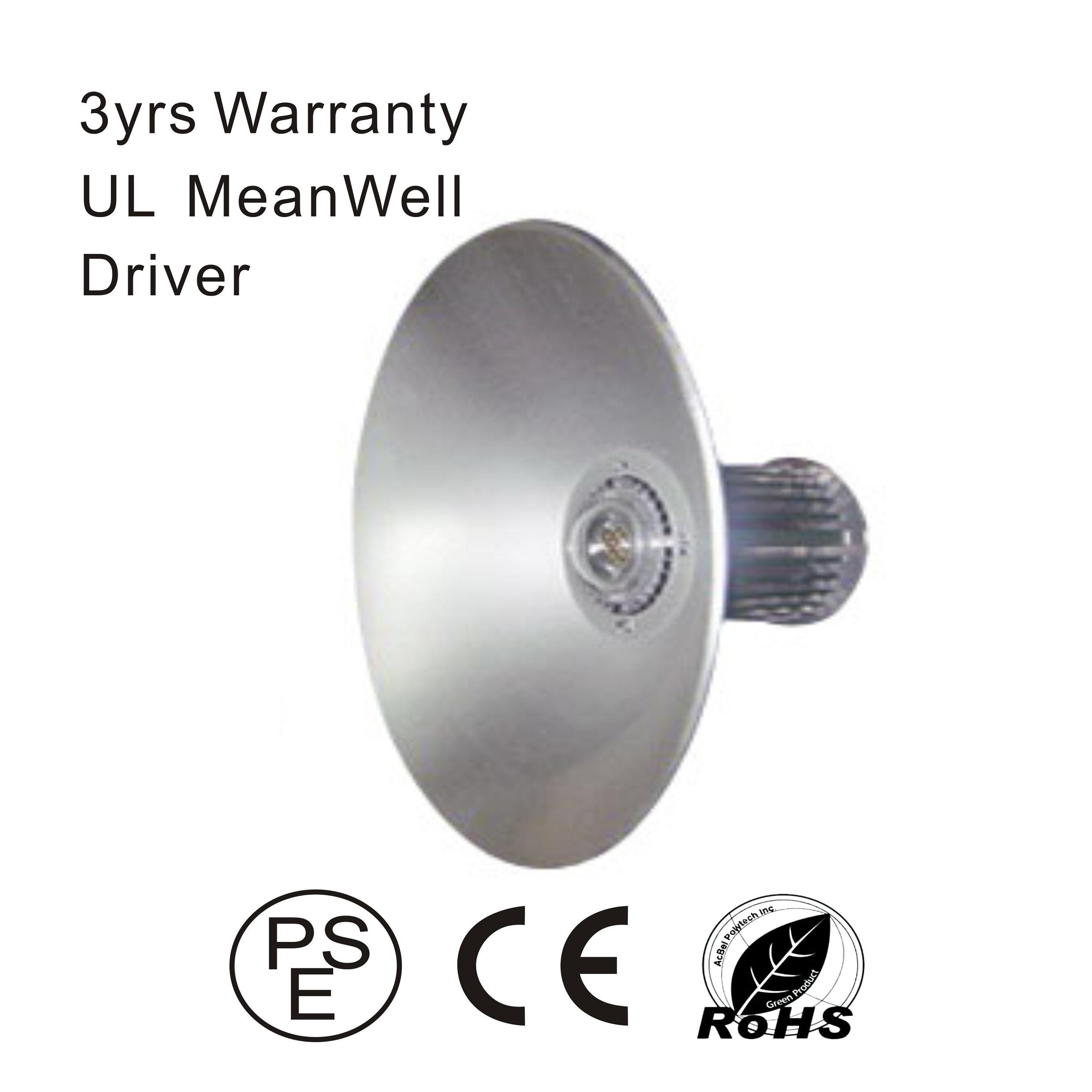

100W LED High Bay Light
1. Size: 460*500
2. LED quanlity: 10
3. Total Luminous Flux: 5000-5500lm
4. Power Factor: 0.94
5. LED Work Voltage: DC30V~40V
6. N.W: 5.25kg
7. Recommendation Installation Height: 5-6m(max: 12m)
Application
Industrial building, Gymnasium, Shops, Subway, Platform,Gas station.
Features
A. American CREE LED, 60% energy saving than HPS.
B. Adopt UL driver
C. Excellent decorative effect, easy to install and remove
E. No UV or IR radiation
F. Low heat emission.
----Quotation----
The price in the catalogue is based on FOB Shenzhen for final order excluding the freight charge.
For sample order, the price will be a little higher than bulk order, except the free sample.
----Freight----
Freight will vary depending on destination, weight(volume weight), courier, or forwarder. We will always choose the cheap but safe transportation for customers.
Customer can also assign the forwarder and pay the freight by customer.
----Shipment----
1. For sample order, taking 3 days, we use courier like DHL, UPS, FedEx, TNT, EMS. Customer can assign the courier.
2. For larger order, taking 10 working days, we could use courier, air cargo or ocean shipping.
3. Customer can also assign your forwarder to make the transportation.
----Payment----
Customers could choose T/T, L/C, Paypal, Western Union.
|
Item No. |
Power |
Total luminous |
LED qty. |
N. W |
Specification |
Recommendation installation height |
|
AEM-G01 |
80W |
4000-4500lm |
8pcs |
5.25kg |
CRI: > 75Ra |
Recommendation installation distance: 15-20m |
4.5-5m(MAX: 12m) |
|
100W |
5000-5500lm |
10pcs |
5.25kg |
IP level: IP54 |
Emitting color: Cool White, Neutral White |
5-6m(MAX: 12m) |
|
120W |
5500-6000lm |
12pcs |
6.3kg |
Voltage: 85-265V |
CCT: 5800-6000K, 4000-4500K |
|
150W |
7000-8000lm |
16pcs |
7.9kg |
Life span: > 30000h |
LED lighting efficiency: 60-80lm |
8-10m(MAX: 18m) |
|
160W |
8000-9000lm |
18pcs |
7.9kg |
Frequency: 50-60Hz |
Beam angle: 45° /60° /120° |
