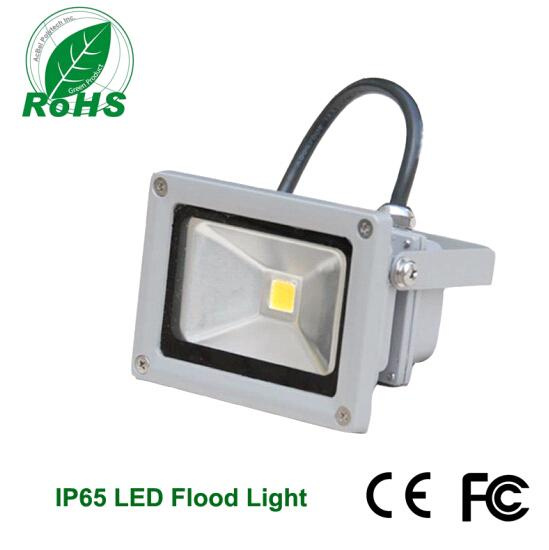

CE RoHS RGB Color Change 10W LED Flood Light
Product description
1)High power LEDs as light source. High Luminous Efficiency, long life span.
2)Adoption of constant-current to control the circuit. With over-temperature protection, short-circuit protection, high reliability performance, longer life can be achieved.
3)Die-casting aluminum cover. Driver cavity and Light source cavity are parted. The inside of Light source cavity is tightly closed to LED light source. Good cross-ventilation between external heat sink and air, which guarantee the life span of light source and driver.
4)Toughened glass, high temperature resistant silicon rubber sealing belt. Internal silicone potting ensures excellent waterproof properties and good thermal performance, high strength toughened glass inside strengthen the safety of lamps. Inner smooth mirror aluminum reflector enlarges the reflecting area. It is a idea choice for commercial advertising lighting.
5)Environmental friendly: No pollution, cold light source design, no heat radiation, no lead, mercury and other pollution elements.
6)Start without delay, Reach full brightness quickly after power on.
7)The inside and outside of the LED flood light is strong shockproof, effectively to resolve the problems such as LED falls off, lamp bead shorten life, structure breakdown.
Parameters of color change LED flood light 10W
Power 10W Size L180XW140XH110
Input Voltage AC85-265V (50-60Hz)
Material : Aluminum die dast&toughened glass
Color Effect RGB
Shell Color Grey, Black
Control Model DMX512
Work Temperature -30 to 60 degrees
Light Output > 700LM
Store Temperature -30 to 60 degrees
View Angle 100°
Protection Level IP65
Power Efficiency > 86%
Certificate CE RoHS
Power Factor > 95%
Wavelength R: 240-270lm
G: 360-390lm
B: 90-105lm
General Features
1. Rugged die cast shell with good quality of aluminum, and surface baking varnish disposal, beautiful generous, endure cauterization
2. Sealed up with the toughened glass and silicon rubber to make sure water-proof.
3. The appearance is silver grey or black.
4. Constant driver inside to make sure the LED steady.
5. Integrated hi-power LED inside.
6.3-core rubber cable of power supply is 1.0 meter.
7. IP rating is IP65.
8.3-year warranty.
Specialty:
[A] Adopting Bridgelux or Epsitar chip as light source with high lighting efficiency(70`80LM/W), high CRI(Ra> 75), good quality heat dissipation, low light degradation.
[B]Aluminum die dast & toughened glass, good strength, high quality heat dissipation. Anti corrosion and baking varnish surface, can be for outdoor using.
[C]Make a dedicated luminous intensity distribution design via the aluminium reflector, there are two options for lighting distribution, one is for focusing, another is for divergencing.
[D]Wide Input Voltage from 85V~265VAC, constant voltage constant current output, can start up at once, no flicker, lightning protection, PFC function available.
Application of flood light:
LED Flood light is used in bars, clubs, hotels, stages, parks, plazas, commercial buildings facade, mosques, museums, art galleries, historical buildings, Factories, gymnasiums, yards, advertising boards, buildings, lawns, garden designs and some other outdoor places where need spot lighting and lights decoration.
