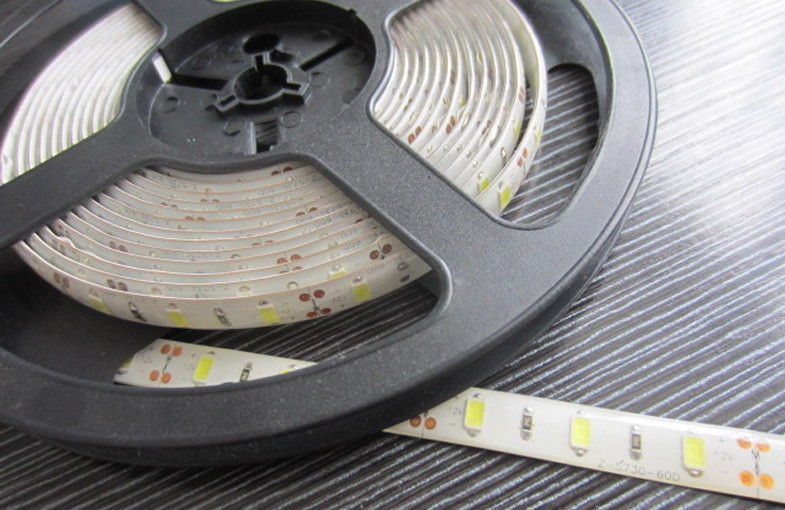

CE ROHS Outdoor SMD 5630 led Strip 12V / 24V / SMD 5730 led strip light 60LEDs/M
Quick Detail:
1. SMD5630 LED as lighting sources
2. Working voltage: DC12V or DC24V
3. Watt: 28.8W/meter
4. IP67(IP20, IP65, IP68 available)
5. Cuttable length: By every 3 leds for DC12V type (and every 6 leds/cut for DC24V type)
6. Warranty 3 years
Description:
Super bright 5630 SMD top LED, high intensity and reliability; Continuous length, packed with 5 meter; Flexible ribbon for curving around bends; Completely smooth and even light spread, solving the uneven luminous problem; Ultra-bright but running at low temperature; Easy for transporting, decorative effect is brilliant, energy saving, environmental protection.
Applications:
1. Car decoration
2. Architectural decorative lighting
3. Archway, canopy and bridge edge lighting
4. Amusement park, theater and aircraft cabin mood lighting
5. Emergency hallway lighting
6. Auditorium walkway lighting
7. Stairway accent lighting
8. Concealed lighting
9. Backlighting for signage letters
10. Channel letter lighting
11. Emergency exit path lighting
12. Cove lighting
Installation Note:
1. Please note this strip light can not be plugged into the mains directly! ! There are two bare wire at the end of each led strip. For home or garden use, you need a power Adapter/ Transformer to convert AC 240V to DC 12v.
2. The voltage of car is 12v DC. So you can install it directly, no need for an additional adapter.
3. When you use it in aquarium, please note that the bare power cord can not be soaked in water.
4. LED strip has positive and negative, and if it does not shine, then change the the direction in electrode.
5. The LED strips do not require any resistors. They are ready to work on any 12 volt power source.
6. Please note that these led strip lights can be used for aquariums/fish tank and also for cars. And the outside package is for protection only during the delivery.
The input voltage of this controller should to be only 12V DC. DC24V of other high voltage would most probably destroy it, In order to be used at home, you need to buy one 240v AC to 12V DC Transformer, we have 2A, 3A, 5A 8A 10A adaptor(24W, 36w, 60W, 96W available. )
More Details:
IP65 Waterproof
Flexible, every 3 lamps (approx. Per 5cm) can be cut apart
Flexible strip and can be bent at any angle
Self-adhesive back
Maintenance free, easy installation
Flexible ribbon for curving around bends
Completely smooth and even light spread, solving the uneven luminous problem
Ultra-bright but running at low temperature
Certification: CE & RoHS
Low power consumption
Perfect for your house, garden, auto, bar and Christmas decoration!
Perfect for accent lighting and enhancing certain areas around your home, Shop, decorating your home
Easy installment, with 3M high temperature resistance double-sided adhesive on the back
Wide viewing angle (160 degrees) ensures large illuminated surface
Technical Data |
|
Model |
YDL-F5730IP65-60P-W |
LED Qty |
60leds/m |
LED Type |
Epistar |
LED Color |
White,Warm white, Red,Green,Blue,Yellow |
Input Voltage |
12v dc (24V dc optional) |
Watt |
24W/meter |
Luminous Efficiency |
50lm-55lm per LED |
Color Temperature |
Warm white |
2800-3200K |
Natural white |
4000-4500K |
Cool white |
6000-6500K |
Light Efficiency |
>85% |
Beam Angle |
>120° |
Working Temperature |
-40 Deg~ +55 Deg |
Storage Temperature |
-25 Deg ~ +65 Deg (25 Deg best) |
Life span |
50000hrs |
Certificate |
CE, RoHS, FCC |
IP Grade |
IP65 (IP20, IP67, IP68 available) |
PCB Color |
Copper / White / Black |
Net Weight |
0.3kgs |
Dimension |
1000*10*0.2mm (3M adhesive on back) |
package |
5m/roll in each Anti-static bag |
Installation way |
3M adhesive on back |
