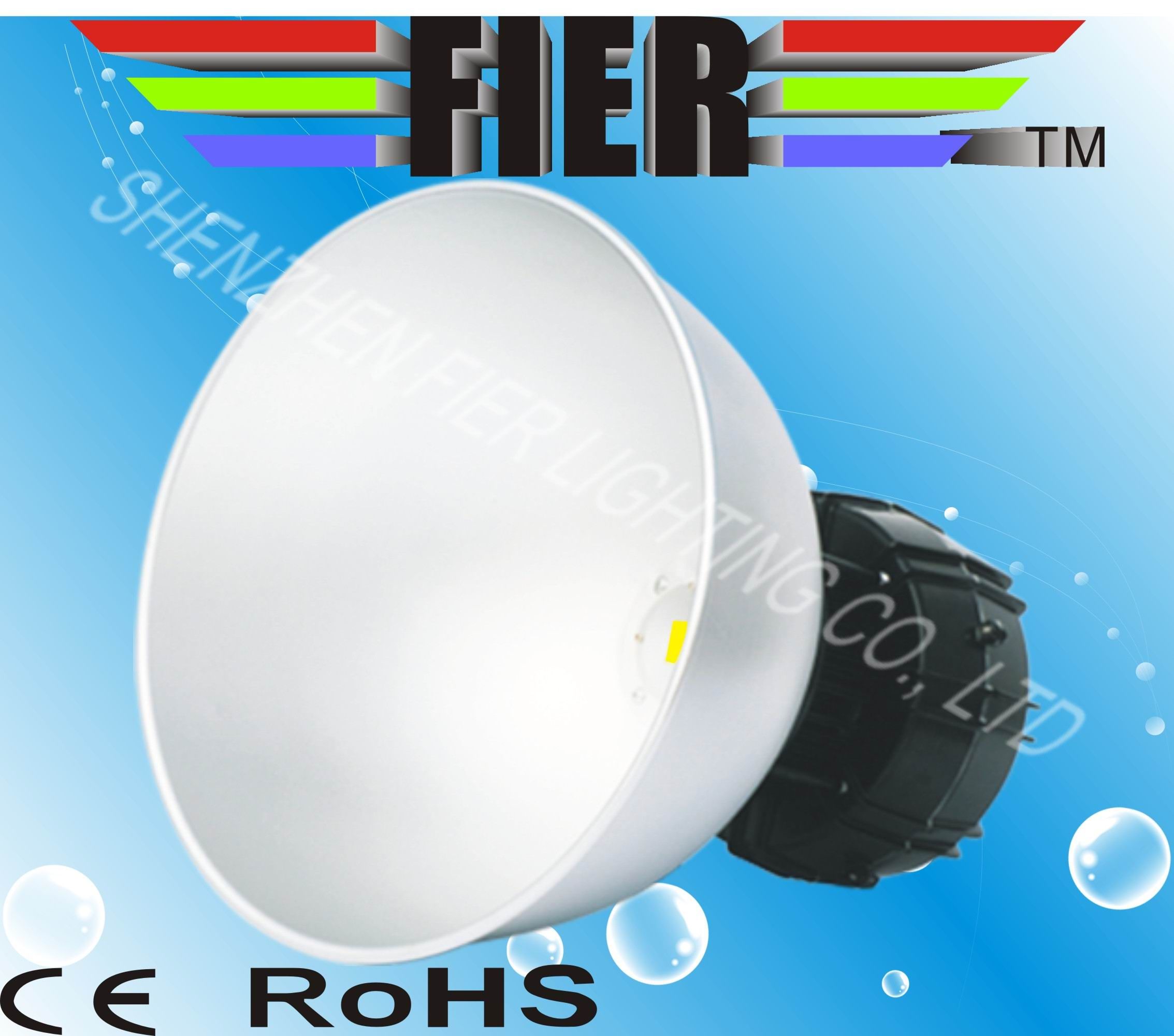

LED High Bay Light
Model: FEI101
Features:
1. Input Voltage: AC85V~265V
2. Freqency Range: 50Hz~60Hz
3. LED Working Voltage: 30-36Vdc
4. LED Quantity: 1PC
5. LED Consumption: 30W
6. System Consumption: 36W
7. LED Efficiency: 60-100LM/W
8. Initial Flux: WW/1, 700LM; NW/1, 800LM; CW/1, 750LM
9. Initial Flux: WW/1, 700LM; NW/1, 800LM; CW/1, 750LM
10. IP Rating: IP65
11. Working Life Span: 50, 000Hours
12. Connect Wire: Brown/L; Blue/N; Yellow, Green/G
13. Housing Color of Lamp Head: Black/ Silver (optional)
Color Temperature: WW/2, 700-3, 900K; NW/3, 900-6, 000K; CW/6, 000-7, 000K
Data:
Total Harmonic Distortion: ≤ 9%
Power Factor: >0.9
Height: Average Illuminance
3M: 164 Lux
6M: 60 Lux
9M: 30 Lux
Illuminance Area (Light Spot)(Round):
Height: 3M / Dia. 6.18m
Height: 6M / Dia. 11.97m
Height: 9M / Dia. 17.76m
Illuminance Uniformity: >0.5
Luminaire Efficiency: >75%
Juction Temperature: ≤ 80 Celsius degree
Operation Temperature: -40 ~ +55 Celsius degree
Storage Temperature: -25 ~ +55 Celsius degree (25 Celsius degree is best-fit)
Color Rendering Index: WW/Ra>68; NW/Ra>75; CW/Ra>75
Power Line: 0.75mm three-core cable
Material:
Light Source: Integrated LED
The chips are all internationally renowed brands
Light body: High quality aluminum body
Light distribution uses reflector processed by Aluminum CNC Machines.
Advatages:
Design/Engineering Simplicity
High-energy efficiency
Good heatabstractor
Gentle for eyesight when working
Long Life Span
Low Power Consumption
Pure color, no pollution, environment protected
High Quality, competive price
Prompt Services, etc.
Applications: Buildings, factories, warehouses, large supermarkets, exhibition halls, stadiums, squares, docks and so on.
Shenzhen Fier Lighting Co., Ltd., is located in the beautiful and open city Shenzhen, Guangdong Province, P. R. China. The company is formerly known as Zhuzhou Fei-hong Industrial Co., Ltd., Shenzhen Branch, which was established in 2004, and successfully rooted in LED industry in Shenzhen in 2009. Shenzhen Fier Lighting Co., Ltd., is a professional manufacturer who specializes in R&D, producing and exporting indoor and outdoor high power LED lamps. The products are produced with CE & RoHS approval which include downlights, flood lights, ceiling lights, spotlights, light bulbs, gem lights, wall lights, wall washers, tunnel lights, high bay lights, market lights and so on. All the light sources have brands in CREE, SSC, LUXEON and EDISON.
The main advantages of FIER LED lights are energy-saving, environmentally-friendly, high-efficient, long lifespan, practicability and unique radiator design. Our company management system is according to ISO9001: 2008. We have also developed some die-casting LED lamps which integrated with PC and aluminum materials. All the products go through the strict quality controlling procedures and aging test process to make sure all the lamps can work well.
The great advantage of FIER products is their various types which allows to be used at various occasions, such as hotels, stores, villas, museums, business centers, etc. With excellent quality, reasonable price, rapid delivery time and all-round after-sale services, FIER lamps have been well-accepted all over the world.
We always service our customers with the guiding policy as below: "Customer Satisfaction, Customer Reliance". FIER is your top choice about lighting business and hope we will set up business relationship in the near future on the basis of mutual benefit. And the world-wide customers are warmly welcomed to contact and visit us.
