CE RoHS high quality 24000lm 240W Roadway LED retrofit:
Item Code | Power(W) | Volltage(V) | Number of LED | Lumens(Lm) | N*W/box(Kg) | G*W (Kg) | QTY/Carton | Size/Carton(inch) |
| NS-RKP185-40 | 40 | AC100-277 | 21 | 3600-4000 | 2.05 | 21.29 | 10 | 15.6*11.81*18.42 |
| NS-RKP185-60 | 60 | AC100-277 | 28 | 5400-6000 | 2.06 | 21.37 | 10 | 15.6*11.81*18.42 |
| NS-RKP185-80 | 80 | AC100-277 | 42 | 7200-8000 | 2.46 | 25.44 | 10 | 15.6*11.81*18.42 |
| NS-RKP185-100 | 100 | AC100-277 | 49 | 9000-10000 | 2.65 | 27.36 | 10 | 15.6*11.81*18.42 |
| NS-RKP185-150 | 150 | AC100-277 | 70 | 13500-15000 | 2.69 | 27.67 | 10 | 15.6*11.81*18.42 |
| NS-RKP185-185 | 185 | AC100-277 | 28 | 16650-18500 | 2.69 | 27.67 | 10 | 15.6*11.81*18.42 |
| NS-RKP185-240 | 240 | AC100-277 | 35 | 21600-24000 | 2.83 | 29.21 | 10 | 15.6*11.81*18.42 |
| NS-RKP185-60H | 60 | AC347-480 | 28 | 5400-6000 | 2.35 | 24.37 | 10 | 15.6*11.81*18.42 |
| NS-RKP185-100H | 100 | AC347-480 | 49 | 9000-10000 | 2.84 | 29.27 | 10 | 15.6*11.81*18.42 |
| NS-RKP185-150H | 150 | AC347-480 | 70 | 13500-15000 | 2.75 | 28.42 | 10 | 15.6*11.81*18.42 |
| NS-RKP185-120 | 120 | AC100-277 | 56 | 10800-12000 | 2.64 | 27.28 | 10 | 15.6*11.81*18.42 |
Product Information

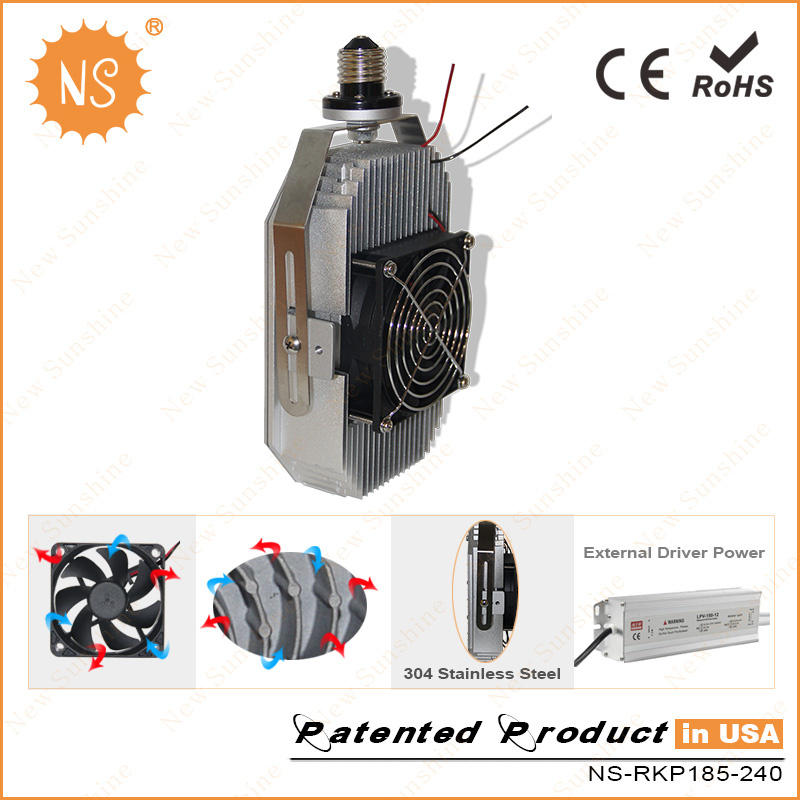

Part Number: NS-RKP185-240
Item Weight: N\W: 1.72KG, G\W: 2KG
Product Dimensions: 10.75*5.5*2.35inch
Warm White(3000-3500K) Neutral White:(4000-4500K) Cool White(6000-6500K)
Material: Fin aluminum housing
Wattage:240watts
Item Package: Quantity 35
Luminous Flux: 24000lm
Certification: UL cUL
Patent Design: United States and European Union
Technical Details
Eco-Friendly and energy saving
240W shoebox led retrofit Metal halide 150W Replacement
Products be free of charge within 6 month of replacement service,5 years warranty for repair parts.
Product Specifications:
1. Lamp Type: 240W shoebox led retrofit
2. Install: Screwed
3. Rating Power(W):240W
4. Luminous Flux(lm): 24000LM
5. Input Voltage: 100~300VAC, 50/60Hz
6. LED chip: 35PCS, Cree
7. Color Temperature(K): 2700-6500K
8. Beam Angle: 120 degree
9. Operation temperature: -20C~50C
10. Storage temperature: Normal temperature
11. Storage humidity: Normal humidity
12. Life Time (Hrs): 50000H
13.Waterproof Rating: IP44
Advantage:
1, Fin aluminum with UV resistant powder coating
2, UL/CUL DLC listed,suitable for wet location,
3, High impact polycarbonate diffuser
4, Operating temperature: -20°C to 50°C
5, THD<15%,Power Factor >0.9
6, 5 years warranty
6. Instant start, No flickering, No humming
7. Easy to install and operate
Installtion and Appliaction:
Package details:
240W reftofit led shoe box Inner box size: 9.75*6.5*2.35inch
Carton size :15.6*11.81*18.42 inch ,10PCS/CTN, G.W.: 22KG
Notice:
1. Make Sure To Cut Off The Power Before Instal 40W-240W shoebox led retrofit
2. Not suitable for dimmers or electronic switches or remote controls.
