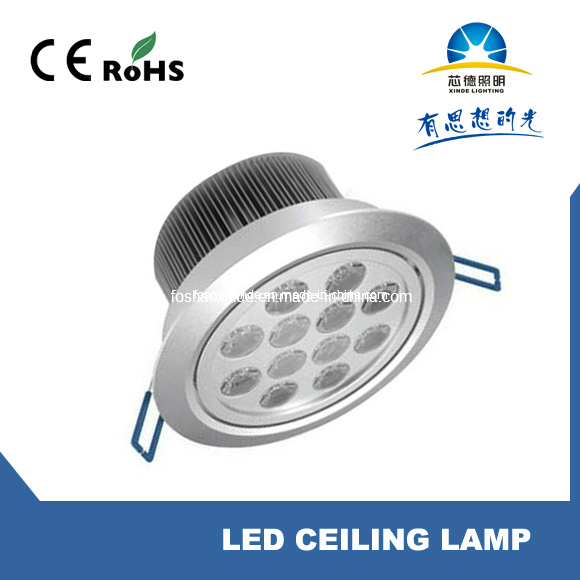

CE&RoHS Approved LED Ceiling Light (XD-12X1W)
Features:
1. Part No: XD-12X1W
2. Dimension: Φ 138*70(H)mm, open hole 120mm
3. Power: 12W
4. Voltage: AC100-240V 50/60Hz
5. Luminous flux: 950Lm
6. Beam Angle: 30° , 45° , 60° 90°
7. Color range: White/ yellow/red/green/blue.
8. CCT: 2700K-8000K
9. CRI: >70
10. Cutout: Φ 120 LED Source: 12PCS high power LED
11. Power factor: 0.85~0.98
12. Life time: 30000Hrs
13. Certification: CE, RoHS
14. Warranty time: 2 years
15. Many power: 3W, 4W, 5W, 7W
Applications:
1. Ceiling of Home and office lighting
2. Shopping mall lighting
3. Display case lighting
4. Under cabinet lighting
5. Art lighting
6. Board lighting
7. Back lighting, step lighting, light boxes
8. Cabinet and under counter lighting
|
Item No. |
XD-12X1W LED ceiling light |
|
Color |
White |
Warm white |
|
CT (K) |
6000K |
3000K |
|
Lumen efficiency |
90lm/W |
85lm/W |
|
Power |
1*12W |
1*12W |
|
Voltage |
AC 100~240V |
AC 100~240V |
|
CRI |
>80Ra |
>80Ra |
|
Power factor |
PF>0.8 |
PF>0.8 |
|
Energy conversion rate |
>88% |
>88% |
|
Viewing angle |
45deg(60deg) |
45deg(60deg) |
|
IP rank |
IP50 |
IP50 |
|
Size(mm) |
D130*H70mm |
D138*H70mm |
|
Installation size |
D120mm |
D120mm |
