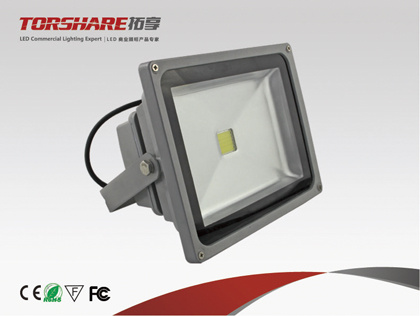

1. LED Flood light use High power Single COB LEDs as light source. High Luminous Effeciency, long life time.
2. Adopt constant-current control circl, steady performance. Provided with high temperature protection, short-circle protection, long life time, high reliablitity.
3. High Voltage die-casting integrated light cover. Driver cavity and Light source cavity are departed. The inside of Light source cavity is tightly closed with LED light source. Cross-ventilation between external heat dissipation and air. This guarantee the light source and driver's life time.
4. The LED flood light is made by Toughened glass, high temperature resistant silicon rubber sealing belt. Internal silicone potting to ensure excellent waterproof properties and good thermal performance, external use high strength toughened glass, increase the safety of lamps. Internal for inferior smooth mirror aluminum reflector, flashing the area is large, is the commercial advertising lighting ideal choice.
5. Green environmental protection: No pollution, cold light source design, no heat radiation, no lead, mercury and other pollution elements.
6. Start without delay, can reach the normal brightness after the power supply in, without waiting for.
7. The inside and outside of the LED flood light with strong earthquake resistant structure design, effectively resolve for strong vibration lead to light bead falls off, lamp bead shorten life, stent fracture and so on breakdown.
|
TL05 |
TL01 |
TL02 |
TL03 |
TL09 |
Power Dissipation |
10W |
20W |
30W |
50W |
70W |
Input Voltage |
AC85-265 |
AC85-265 |
AC85-265 |
AC85-265 |
AC85-265 |
LED Working Voltage |
9-12 |
32-36 |
32-36 |
32-36 |
32-36 |
LED Working Current |
900 |
1500 |
1000 |
1600 |
2300 |
LED Light Source |
10 W high power |
20 W high power |
30 W high power |
50 W high power |
70 W high power |
CRI |
> 70 |
> 70 |
> 70 |
> 70 |
> 70 |
CCT |
White |
5500-6000 |
5500-6000 |
5500-6000 |
5500-6000 |
5500-6000 |
Warm White |
2500-3000 |
2500-3000 |
2500-3000 |
2500-3000 |
2500-3000 |
Brightness
|
White |
650 |
1400 |
2300 |
3600 |
5200 |
Warm White |
600 |
1300 |
2100 |
3400 |
4900 |
Viewing angle |
140 |
140 |
140 |
140 |
140 |
Founded in 2006, Torshare Ltd. Is one of the biggest manufacturers of LED-related products in China, which is specialized in researching, developing, engineering and marketing of LED products. Occupied by 12, 000 square meters, 200-250 staff, due to good quality and perfect after sales service, Torshare Ltd is enjoying high reputation. It is located in the center of Chinese LED, Shenzhen Shiyan Town, where is about 30 minutes drive from Hong Kong, and 15 minutes drive from Shenzhen Airport, we welcome any group or person to visit our factory.
Our products cover a wide range, such as LED Tube Light, LED downlight, LED spotlight, LED panel light, High power series, LED Sign, Strips, Modules, OEM etc. We are specially proud of our OEM business since we have many professional engineers who have worked in the field of LED for over 10 years. Highly trained workers make sure our products are in 100% good quality. Professional sales follow up with our customers at any time. According to our advantages, we have witnessed our rapid development. Right now, our annual export sales topped $13.5 million in 2010, a 60% increase from the previous year.
We have one set of strict Quality Inspection System. Our 15 QC staff monitor the entire production process to ensure our product quality meets your requirements. We use advanced temperature testers, luminance testers and photoelectric instruments to conduct strict testing such as voltage withstand, shock proof and salt spray tests. All our operations are ISO 9001: 2008-certified. Our qualification rate is above 99.5%. All our products comply with CE standard and the RoHS Directive.
Under the common effort of all staff; We fully believe we will do better and better in the following days.
