Application:
Desktop, aisle, showcase, residential lighting for bedroom, studyroom, living room etc. Commercial lighting for office, hotel lobby, shop, exhibition room etc.
Transformer application
Magenatic transformer with 12~24 v AC/DC output or electronic transformer with 12~24V DC output voltage.
Outstanding performance
Effiecent > 80%, pf > 0.9, life span > 50, 000 hours.
Features:

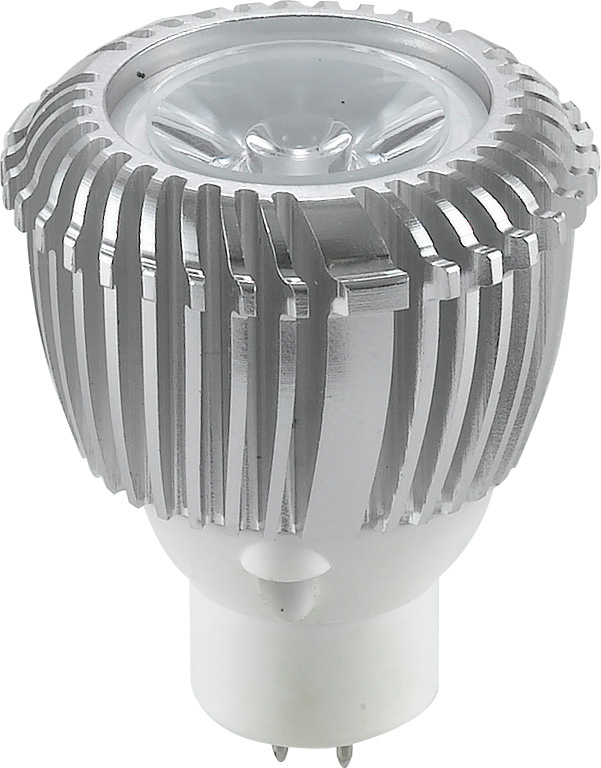

Item number: Wd-MR11-1semi
Bulb type: High power LED MR11 bulb
LED chip q'ty: 1PC LED
Base type: MR11
LED type: Semiled
Available input voltage: 12V DC
Applicable dimmers: Triac dimmer for lutron, teviton, legrand, CE, orsam etc.
Total length: 35(dia. )x 45mm
Output current: 340mA
Lumen output: Ww: 85lm, cw: 110lm
Color range: 2, 700~6, 500k
Beam angle: 15, 30, 45, 60, 90, 120 degrees
Reflector efficiency: 90%
Life span: >50, 000 hours
Body temperature: <65degrees
LED working temperature: <72degrees.
CRI: Ra> 80
Net weight: 25g
Housing material: Aluminium extrustion
No UV or IR radiation
Certification: CE, RoHS, c-tick, FCC, PSE.
|
Item Number |
WD-MR11-1SEMI |
|
Voltage |
12V AC/DC |
|
Lumens |
WW: 85lm
CW: 110lm |
|
Dimmable |
NO |
|
Dimension |
¢ 35 x 45mm |
|
Available Base |
MR11 |
|
Weight |
25g |
|
LED Type/ Qty |
SEMI/ 1pc |
|
Power Consumption |
2.1W |
West Deer Technology Co., Limited is a skilled manufacturer and knowledgeable exporter of indoor and outdoor LED lighting fixtures. We have nearly 3 years of experience in the export business and we have grown into a highly efficient team, serving and providing our customers with an extensive range of high quality lighting fixtures at competitive prices.
West Deer Technology Co., Limited owns advanced production facilities and we have strong product development capabilities. Our corporate aim is "good quality and service and mutually beneficial cooperation". Our indoor line mainly produces LED tube lights, LED spotlights, LED global bulbs, LED ceiling lights, etc. Our outdoor line produces LED floodlights, LED streetlights and LED high bay lights Our lighting sources are always an imported brand name such as CREE, SemiLED, Bridgelux and Lumenmax, etc. All of our products are IEC and EMC standard qualified and CE, Rhos, C-tick FCC certified, some are UL certified as well.
West Deer Technology Co., Limited will work with our customers to establish a mutually beneficial relationship. We provide high quality products and an excellent service for partners from all over the world.
