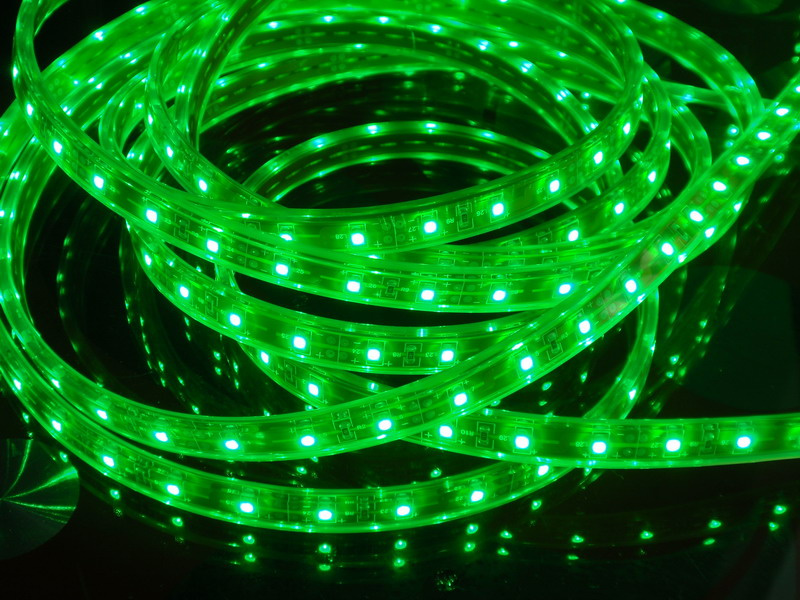

Product name: LED strip light
LED type: SMD 3528 / 5050
LED Qty: 120 LEDs/ per meter
Size: 1000X8X2.2MM, 1000x10x2.2mm
Voltage: DC12V/DC24V
Beam angle: 120
Color: Red, Yellow, Blue, Green, White, Warm white, Pink
Packing: 5M/Roll, 1 Roll/bag
Total output lumens(LM/W): Red=18.75, Yellow=18.75, Blue=12.5, Green=50, White=62.5, Warm white=50
Encapsulation type:
Naked(NK) IP00
Waterproof tube(PC) IP56
One side filling glue another side ahere 3M tape, IP44
Full waterproof, PC+PU, IP68
Features:
Three LED bulbs to one section of the soft PCB, with double-sided tapes on the back for the paste, small size and easy to install
Standard length: 5M/ per roll
Color: Red, Yellow, Blue, Green, White, Warm white, Pink
Voltage: DC12V/DC24V/AC110V/220V
Apply to Signing the figure and route advertising
|
Item |
LED Size |
LED Qty/ per meter(PC) |
Electric current |
Voltage |
Wattage/ per meter |
Beam angle |
Size |
Packing size |
|
WDSMD-3528-30 |
SMD3528 |
30 |
0.2A |
DC 12V |
2.4W |
120° |
1000X8X2.2mm |
5M / per reel |
|
WDSMD-3528-60 |
SMD3528 |
60 |
0.4A |
DC 12V |
4.8W |
120° |
1000X8X2.2mm |
5M / per rell |
|
WDSMD-3528-96 |
SMD3528 |
96 |
0.64A |
DC 12V |
7.6W |
120° |
1000X8X2.2mm |
5M / per rell |
|
WDSMD-3528-120 |
SMD3528 |
120 |
0.8A |
DC 12V |
9.6W |
120° |
1000X8X2.2mm |
5M / per rell |
|
WDSMD-5050-30 |
SMD5050 |
30 |
0.6A |
DC 12V |
7.2W |
120° |
1000X10X2.2mm |
5M / per rell |
|
WDSMD-5050-60 |
SMD5050 |
60 |
1.2A |
DC 12V |
14.4W |
120° |
1000X10X2.2mm |
5M / per rell |
|
WD-SMD5050-30 RGB(full color chasing) |
SMD5050 |
30 |
1.94A |
DC 5V |
9.7W |
120° |
1000X10X2.2mm |
5M / per rell |
|
WDSMD-3528-240 |
SMD3528 |
240 |
0.8A |
DC 24V |
19.2W |
120° |
1000X14X2.2mm |
5M / per rell |
|
WDSMD-5050-120 |
SMD5050 |
120 |
1.2A |
DC 24V |
28.8W |
120° |
1000X20X2.2mm |
5M / per rell |
|
|
|
|
|
|
|
|
|
|
|
Red , Blue , Yellow, Green, Day white, Warm white |
|
|
|
|
