LED strip light, RGB strip LED, flexible strip light

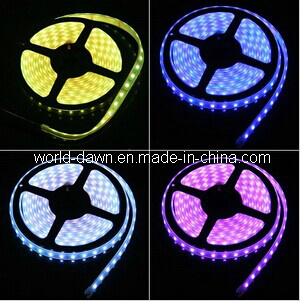

Product name: LED strip light(SMD 5050-RGB)
Item No.: WDSMD5050-30-RGB
WDSMD5050-60-RGB
LED type: SMD 5050
LED Qty: 30/ 60 LEDs/ per meter
Size: 1000X10X2.2MM
Voltage: DC12V/DC24V
Beam angle: 120
Color: Red, Yellow, Blue, Green, White, Warm white, Pink
Packing: 5M/Roll, 1 Roll/bag
Total output lumens(LM/W): Red=18.75, Yellow=18.75, Blue=12.5, Green=50, White=62.5, Warm white=50
Encapsulation type:
Naked(NK) IP00
Waterproof tube(PC) IP44
One side filling glue another side ahere 3M tape, IP44
Full waterproof, PC+PU, IP68

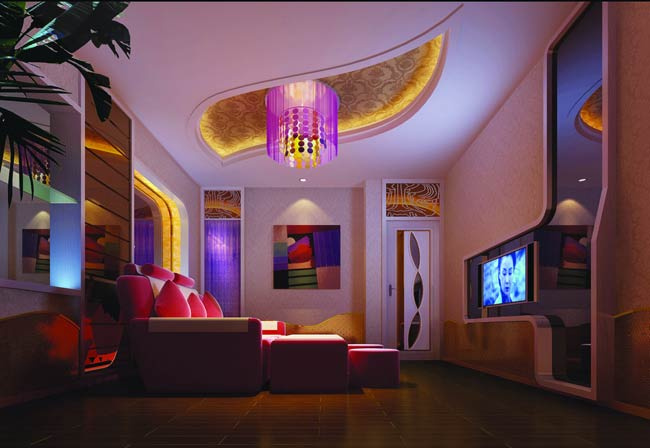

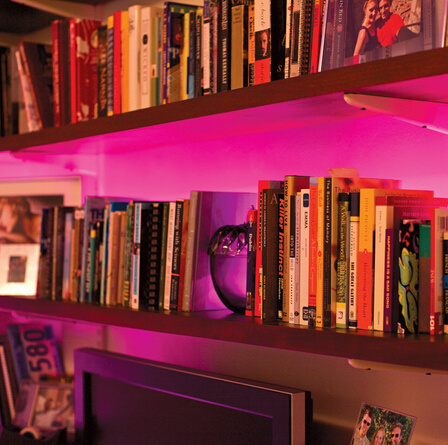

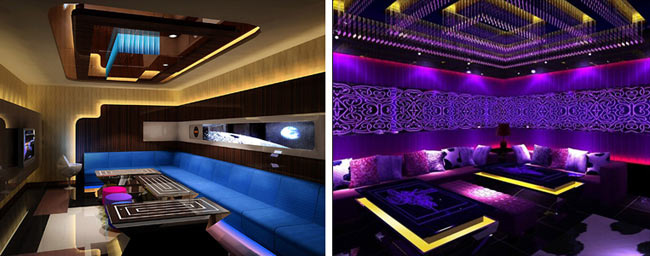

LED strip light Apllications:
1. Car decoration
2. Architectural decorative lighting
3. Archway, canopy and bridge edge lighting
4. Amusement park, theater and aircraft cabin mood lighting
5. Emergency hallway lighting
6. Auditorium walkway lighting
7. Stairway accent lighting
8. Concealed lighting
9. Backlighting for signage letters
10. Channel letter lighting
11. Emergency exit path lighting
12. Cove lighting
| Item | LED Size | LED Qty/ per meter(PC) | Electric current | Voltage | Wattage/ per meter | Beam angle | Size | Packing size |
| WDSMD-5050-30 | SMD5050 | 30 | 0.6A | DC 12V | 7.2W | 120° | 1000X10X2.2mm | 5M / per rell |
| WDSMD-5050-60 | SMD5050 | 60 | 1.2A | DC 12V | 14.4W | 120° | 1000X10X2.2mm | 5M / per rell |
Zhongshan World-Dawn Lighting Co., Limited Established in 2003, located at south area in Zhongshan City Guangdong province, border on the lighting capital Guzhen town, transport is very developed, near Guangzhou air port and Guangzhou international exhibition center only about one hour by car, beside the Jiangzhong highway, it is only 25 minuts near from Zhongshan port, deal with the shipment and export is very convenient.
Feature Products
Our company have a strong R&D, sales and service term, with modern standard workshops, we are a professional manufacturer of LED lighting application products, including LED chips encapsulation, LED flex neon, LED strip light, LED high voltage SMD rope light, LED floodlight, LED wall washer and LED tube.
Modern Equipment & Strict Quality Control
World-Dawn Lighting owns assembly lines of more than 15, 500m2.Our fabrication process is undertaken by automatic facilities, like wave-soldering, reflow-soldering and component SMT machines.Every production procedure is monitored by quality control staff and any piece of World-Dawn products is checked by our QC team.We have standard warranty for any item produced by World-Dawn.Furthermore, all our products have attained RoHS and CE certificates.
Competitive Price
As manufacturer, we are competitive in price.Meanwhile, Many accessories are produced by our own factory and We have own LED chips encapsulation factory, So we can control the cost very well.
Our major sales market
Europe, America, Japan, South Korea, World-Dawn company welcome the LED distributors who come from all over the world to make friendship and business to set up a beautiful future.
World-Dawn's operation philosophy:
Good quality is the life of the enterprise
Good service is the heart of the enterprise
