CE Approval Indoor LED Display

CE Approval Indoor LED Display
Price: US $ 1500/Square Meter
Trade Terms: FOB,CFR,CIF
Min Order: 1/Square Meter
Pay Type: L/C,T/T,Money Gram,Western Union
Specifications

P5 indoor ture color LED ad screen
1)High definition
2)High intensity
3)Best quality, big view angle
4)Colorful...

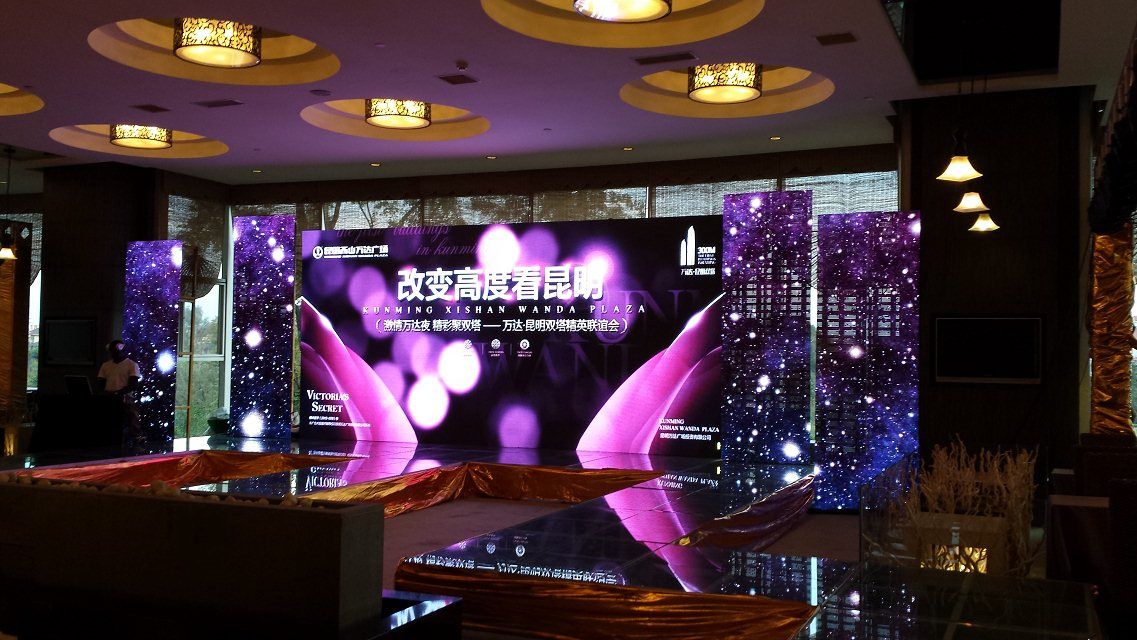

P5 indoor LED displays with high density, can provide high definition pictures. P5 LED display are widely used in indoor LED
Video wall, on the stage of concert, as the background in the theater etc...

[Model]: P5 indoor full color LED display
[Spacing]: 5mm
[Applications]: Indoor LED video wall, Concert, Theater, Advertising
[Features]: High definition, High intensity, Best quality, big view angle, Colorful...
Technical parameters:
1 Pitch size 5mm
2 Pixel configuration SMD 3 in 1
3 Power consumption 50-1500W/m2
4 Color scale 65536degree
5 LED module size 160*160mm
6 Module resolution(W*H) 32*32dots
7 Pixel density: 40000dots/m2
8 Brightness(average) ≥ 1000CD/m2
9 View angle H≥ 160° , V≥ 160°
10 Net weight <50kg/m2
11 Power supply 220V/110V± 15% 50Hz
12 Display mode VGA640X480— VGA1600X1024
13 Life-span ≥ 100, 000hours
14 Refresh frame frequency ≥ 600Hz
15 Control distance ≤ 100M (Cat. 5 without repeater) /500M(multi-mode optical fiber)
/20000m(single-mode optical fiber)
16 Operating temperature -25° C~+60° C
17 Operating humidity 10%— 95%RH
18 Best viewing distance: Front 3--150m
19 Opterating system Windows98/Me/2000/XP/Vista
20 Brightness adjusted 100 level automatic or manual
P5 3-in-1 SMD indoor full-color LED display
Item Details Parameters

Pixel
Physical pixel pitch 5mm
Pixel Configuration RGB 3-in-1
Module Module resolution 16×32 pixels
Module Size 80×160 mm



Cabinet



Physical resolution 128×128 pixels
Cabinet Size 640×640 mm
Physical density 16384 pixels/cabinet
Module quantity 32pcs=8(H)×4(W)
Material Steel
Weight 20kg. Approx
Power supply (50V40A) Quantity 3pcs
Average power consumption 250W
Max power consumption 600W










Electricity
parameter









Brightness 4000 nits
Brightness adjusted 100 grade by software, or by Auto-optic induced
Color processing 8-16 bit
Display color 16 million - 281 trillion
Color temperature (K) 6000 - 8000K
Physical density (pixel/M2) 40000
Whole display flatness Less    than 1.2mm juncture
Best view distance 3 - 25m
View angle Horizontal>160 degree, Vertical>160 degree
Storage temperature 40 degree to 60 degree
Working temperature 20 degree to 50 degree
Driving Method Constant driving current, Scan: 1/8
Refresh frequency Up to 3000 Hz
Frame rate 75 Hz
Relative Humidity 10% - 90%
Protection grade IP31
Working voltage DC 5V
Power supply AC 110V±10%    /    220V±10%
Average power consumption 500w/per square meter
Max power consumption 1500w/per square meter
MTBF 10000 hours
Screen lifetime >50000 hours

Control
System
Control System Linsn
Signal Interface DVI
Communication distance CAT5 cable<100m, optical/fiber>500m
Signal transfer mode dot to dot synchronized with computer monitor

Prod Model: P5 SMD
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Tube Chip Color: Full Color
Display Function: Video Display
Scanning Mode: 1/16 Scan
Application: Shopping Guide
Pixel Configuration: 1R,1G,1B
Pixel Pitch: 5mm
IP Rating: IP43
Certification: CCC
Pixel Density: 27,777 dots / m²
System Operating Platform: WIN XP
About Hivision

Guilin Hivision Technology Co., Ltd. Was founded in 1994, starting as a spin-off of a Bank Database System with LED display project at Computer Science department of Guilin Electronic Engineering University. Through the years, Hivision has grown from a small startup to a full-fledge LED sign and light manufacturer.

Hivision is an ISO9001 certified LED manufacturer with extensive in-house R&D capabilities.

Why choose Hivisi?

In-house LED package ability

We complete the entire LED manufacturing process in-house. Our fully automated LED production process includes from die and wire bonding to package, populating, wave soldering and so on.

Three-step QC process with 1st class inspection equipments

Our strict QC process involves 3-step:

1. Incoming Quality Assurance -BOM

2. Inspection Process Quality Control -Producing

3. Final Quality Assurance - Finished product

Throughout these process, we conduct brightness, white balance, vibration and turning-in tests starting with modules, then panels and completed displays. Once finished, we perform high-pressure water resistance assessments to conform to IP65 standards.

Lastly, we assemble the LED cabinets for video aging and on-site simulations, as well as aesthetic inspections on cabinets and internal components. And prior to shipment, all spare parts are evaluated one last time.

Backed by heavy investment and a strong R&D team composed of 20 professionals with average ten years' experience covering software, firmware, hardware, and mechanical engineering, we are able to provide to you customized need.

Aftersales service

When you receive your shipment, you will find an array of materials to assist you with installation and operation. Documentation and user manuals, as well as software will provide you with all the information that you need to get your LED displays up and running.

Technical support

Free training for operation, maintenance and trouble shooting before the shipment in factory

Life-long free Technical support through Skype and Teamviewer (remote operating your computer).

We strive to understand, inspire and enable our customers and partners to turn their large image dreams into results with known outcomes. We are keeping the aim to add value, through our industry leading competence, with a complete range of high impact screens for permanent installations as well as the rental and staging markets. If you are looking for a reliable partner to realize your project, Hivisi is the right man for the job.
