LED downlight, LED down light, LED ceiling light, LED spotlight, LED spot lamp, LED light, LED lamp
1. Input voltage: 85-265V AC
2. Power: 1W/3W/5W/7W/9W/12W/15W/18W
3. Size: Φ 130*80(H)MM...
4. Installation hole diameter Dia: 120mm
5. Luminous flux: 100lm~1800LM(white color)
7. Color: Red/green/blue/white/warm-white/Amber/RGB
8. Life time: 50, 000 hours
9. Housing material: Aluminum
10. Weight: 600g...
11. Working Temperature: -40 C~50 C
12. Applications:
1) Recessed lighting, shelf lighting, ceiling/wall coves
2) Cabinet and under counter lighting, office work station
3) Back lighting, step lighting, light boxes
4) Merchandising, exhibition stands, and panels
Model |
Description |
Picture |
Unit Price (Ex-factory, USD) |
EPILEDS chip |
BRIDGELUX chip |
CE0101-A 1W |
Size:Ø52*H20 mm
Cut-out size: Ø45 mm
LED: 1*1W
Luminous flux:(white)80-100LM
Input Voltage: AC 110V-240V, 50-60Hz Material: Aluminum Alloy |
Bitmap |
$3.9 |
$4.9 |
CE0101-B 1W |
Size:Ø68*H30 mm
Cut-out size: Ø55 mm
LED: 1*1W
Luminous flux:(white)80-100LM
Input Voltage: AC 110V-240V, 50-60Hz Material: Aluminum Alloy |
Bitmap |
$4.2 |
$5.2 |
CE0301 3W |
Size:Ø90*H46 mm
Cut-out size: Ø73-75mm
LED: 3*1W
Luminous flux:(white)240-300LM
Input Voltage: AC 110V-240V, 50-60Hz Material: Aluminum Alloy |
Bitmap |
$5.9 |
$7.9 |
CE0501 5W |
Size:Ø109*H68mm
Cut-out size: Ø90 mm
LED: 5*1W
Luminous flux:(white)400-500LM
Input Voltage: AC 110V-240V, 50-60Hz Material: Aluminum Alloy |
Bitmap |
$10.9 |
$13.9 |
CE0701 7W |
Size:Ø109*H68 mm
Cut-out size: Ø90 mm
LED: 7*1W
Luminous flux:(white)560-700LM
Input Voltage: AC 110V-240V, 50-60Hz Material: Aluminum Alloy |
Bitmap |
$11.9 |
$16.9 |
CE0901 9W |
Size:Ø135*H66 mm
Cut-out size: Ø115 mm
LED: 9*1W
Luminous flux:(white ) 720-810LM
Input Voltage: AC 110V-240V, 50-60Hz Material: Aluminum Alloy |
Bitmap |
$16.9 |
$22.9 |
CE1201 12W |
Size:Ø135*H89 mm
Cut-out size: Ø115 mm
LED: 12*1W
Luminous flux:(white)960-1200LM
Input Voltage: AC 110V-240V, 50-60Hz Material: Aluminum Alloy |
Bitmap |
$19.9 |
$26.9 |
CE1501 15W |
Size:Ø148*H91 mm
Cut-out size: Ø130 mm
LED: 15*1W
Luminous flux:(white)1200-1500LM
Input Voltage: AC 110V-240V, 50-60Hz Material: Aluminum Alloy |
Bitmap |
$25.9 |
$34.9 |

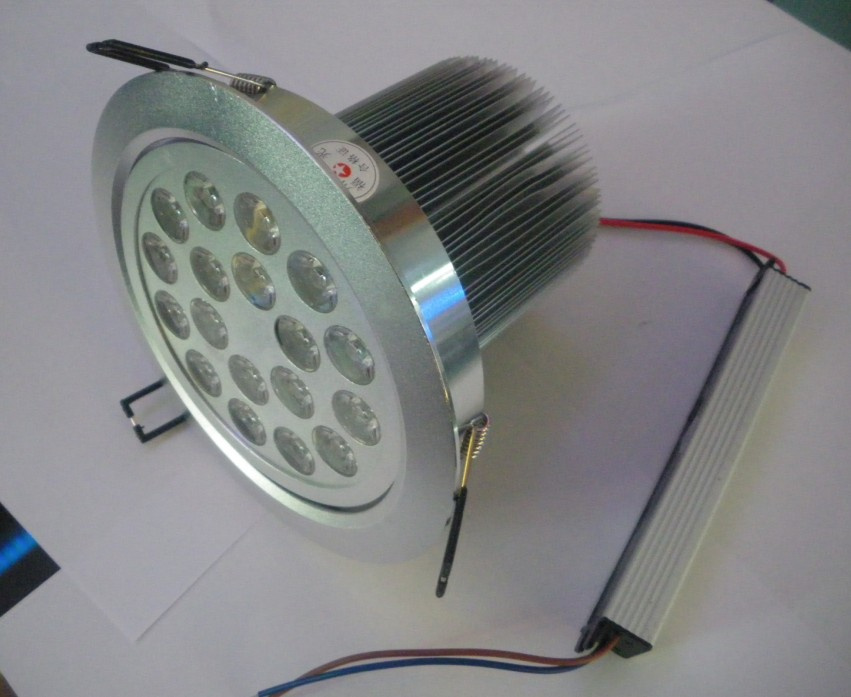

CE1801 18W |
Size:Ø160*H120 mm
Cut-out size: Ø145 mm
LED: 18*1W
Luminous flux:(white)1440-1800LM
Input Voltage: AC 110V-240V, 50-60Hz Material: Aluminum Alloy |
Bitmap |
$29.9 |
$39.9 |
|
|
|
|
|
REMARKS |
|
|
|
|
1. MOQ: 50 PCS / Model |
|
|
|
2. Optional Chip: Bridgelux Chip & EPILEDS Chip, 2 years warranty |
|
|
3. Luminous flux: Bridgelux Chip (white) 90-100lm/W; EPILEDS Chip (white) 80-90lm/W |
|
4. working temperature: -25~50 |
|
5. Sample Lead-time: 3 working days after got payment |
|
|
6. The samples price will be added 10% on the basis of above price. |
|
7. Production Lead-time: 5-7 working day after got payment |
|
|
8. Payment terms: T/T, 30% deposit, 70% before shipment. |
Starryshine is a professional LED light manufacturer with strong capability in R&D, Production, Marketing and Customer service. Our mainly product including LED Corn bulb, LED panel, LED R7S, LED G24 PLC, LED Bulb, LED Tube, LED AR111, 2G11, LED street light, LED high bay, underground light, landscape and so on. We have a lot of professional equipments such as optical distribution analysis devices, High speed SMT Machine, and expertized engineers. After years of development and with its advanced technology and high quality products distributor, project contractor and OEM partners. It's products are extensively applied in global appetence, star hotel, government project, etc
Nowadays 90% of our products are CE/RoHS/FCC/TUV/SAA certified and the QC pass rate is 99.9%, so can supply customer with high quality LED products and high cost efficiency. The stable application of our products is highly appreciated worldwide.
Our staff of sales and technical support is available to help you in selecting the right solution for your application as well as to provide you with samples of our products for evaluation. At Starryshine, we are committed to providing the highest level of customer service, competitive pricing, speedy delivery and a comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction
