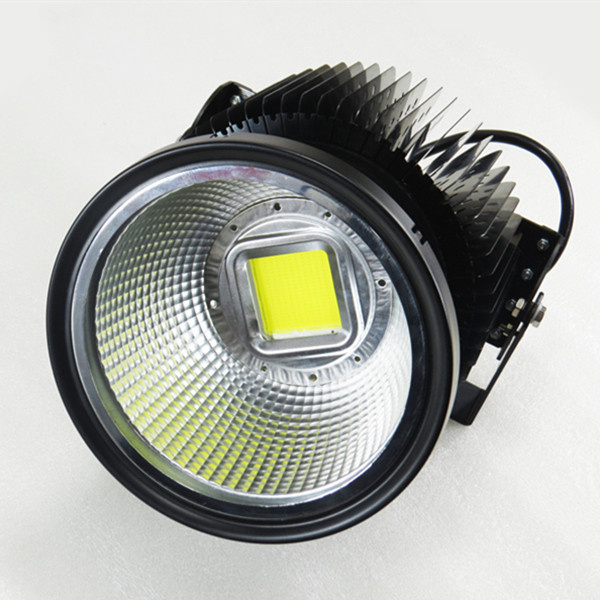

Bridgelux 100W 200W IP65 Industrial LED High Bay Light
1. Main Parameters
Power: 100W/150W/200W/300W/400W
Chip: Bridgelux (45MILx45MIL)
Certification: CE&RoHS
LED Driver: Meanwell
IP Grade: IP65
2. Feature
>>Protection level: IP65.
>>Fin Heat Sink Design: The industrial LED high bay light is with pure aluminum heat lamps fitted with
ultra-thin overall welded to ensure rapid heat conduction while using fins and air convection cooling, to
achieve the best cooling effect.
>>Bridgelux 45MIL Chip: The industrial LED high bay light adapts Chip with 1-5W power and integrated
light source, effectively ensuring the brightness.
>>Condenser Cup: The industrial LED high bay light adapts built-concentrating Cup highlighted with light,
light uniformity, so visual effect is more moderate.
>>Meanwell Driver Configuration: The industrial LED high bay light is with well-known brands Meanwell
Power CLG150W-48A, more stability and strong power.
>>Anti-glare Effect: The industrial LED high bay light can reduces glare, highlights the overall space
lighting and improve the overall brightness of the railway/carport/warehouse/garage etc.
3. Application
1) Warehouse
2) Sport Fields
3) Stadiums
4) Factories
5) Grocery stores
6) Parking garages
4. Company Introduction
We Victory Lighting is mainly focus on LED Outdoor Lighting ( LED Street Light, LED High Bay Light, LED
Flood Light and LED Canopy Light), LED Indoor Lighting ( LED T8 Tube Light, LED T10 Tube Light, LED
Bulb, LED Spotlight). Every product from Victory Lighting is managed by ISO9001, the product also gained
CE&RoHS.
For any further information about our Bridgelux 100W 200W IP65 Industrial LED High Bay Light, just be
free to contact me.: )
| Bridgelux 100W 200W IP65 Industrial LED High Bay Light |
| Power | 100W/150W/ 200W/300W/400W | Size | 260x260x320mm |
| Housing Material | Aluminum Alloy | Color Temperature | 3000K-6500K |
| Lumens | 100-110lm/W | Power Factor | > 0.95 |
| LED Chip | Bridgelux | Chip Model | 45MILx45MIL |
| Working Temperature | -20° C-50° C | Weight | 5.5kg |
| Insulation Grade | I | Corrosion-Proof Grade | WF2 |
| Cable | 8-14 mm | IP Grade | IP65 |
| Application | Warehouse,Industry, Garages | Voltage | AC85-265V |
| Warranty | 2 Years | Lifespan | ≥ 50, 000 hrs |
Shenzhen Victory Lighting Co., Ltd. Consists of a team of researchers who have undertaken the energy-saving application study for a long time and technicists of manufacturing lamps and lanterns.
Shenzhen Victory Lighting commits itself to apply the latest light source, new technique and new material into lights business, provides a variety of moveable or fixed energy-saving lamps and lanterns by itself and offers the best and efficient service. Victory' s products are used in the area ranged from electric power, railways, public securities, fire protections, police offices, metallurgies, coal mine, petrochemical industries, oil fields, armies to other industries.
Victory Lighting is identified as a servant enterprise of Energy-Saving Lamps and Lanterns. It takes being professional, honest, speedy and practical as its tenet; Its will is people foremost and meeting customers' needs; Its goal is highly serve for our clients; Its reputation bases on perfect quality of its products and it has scientific managements. So Victory is ready for becoming a modern sustainable development company in shareholding system.
As serving agent, we all take the responsibility of saving energies for society and reducing costs of ourselves. Today, the lack of energies becomes heavier and heavier. So with the saying of an advocate to save energies in publics, we also devote ourselves as much as possible; And we focus on the services in all business. Not only can we provide the services from pre-producing, middle producing to after services, but also services with personalities on light's scheme, lights' projects or energy-saving scheme are satisfied to our customers.
Board of directors, board of shareholders, board of supervisors and staff committee are established here. The operating team consists of a general manager, majordomo, suboffices and divisional managers. Its departments include marketing departments, quality control departments, agents, general accounting departments, human resource departments, administration depts., R&D and PD.
According to the ISO9001: 2000, Woye strictly and completely management of products' quality and services.
