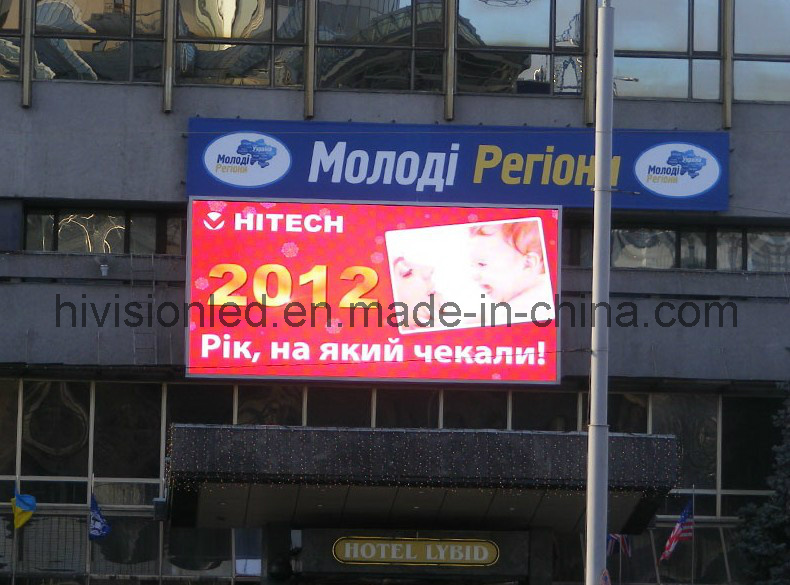

P10.66 DIP Outdoor Screen:
Features:
1.1R1G1B with high brightness LED
2.High contrast
3.Lower power consumption
4.High refresh rate to give better colr rendition
5.Able to eliminate the mosaic to show good ripple-free video images
6. Using DIP technology make the screen have a excellent effect when it plays .
7. The cabinet become more firmed , and corrosion-resistant .
8.Synchronization through the screen body color and brightness adjustment, screen body presents a delicate and vivid color performance;
9. High contrast, high refresh rate, making the LE display render the image without any delay, smear phenomenon;
10. Flight case professional packaging protection, of the screen body control equipment has played a good protection;
11.Unique waterproof case designed to meet the IP65 protection standard, and can be directly installed in outdoor use.
12.Superior components, reduce heat to extend the use of screen body time to improve the life cycle of the screen body.
HIVISI WAS THE LED SIGN SUPPLIER FOR 2010 GUANGZHOUASIAN GAMES P10.66 OUTDOOR LED SIGN:
ABOUT HIVISI:
|
P10.66 outdoor full-color LED display |
|
Item |
Details |
Parameters |
|
Module |
Pixel pitch |
10.66mm |
|
|
Module resolution |
24*24pixels |
|
Module Size |
256*256mm |
|
Standard Cabinet |
Physical resolution |
96*72pixels H*W |
|
Display Size |
1024*768mm H*W |
|
Physical density |
6912pixels/cabinet |
|
Module quantity |
12pcs = 4 (w)*3(h) |
|
Material |
steel |
|
Weight |
48kg approx. |
|
Average power consumption |
173W |
|
Max power consumption |
520W |
Electricity
parameter |
Brightness |
65 00 cd/ m ² |
|
Brightness adjusted |
100 grade by software or by Auto-optic induced |
|
Color processing |
8 bits |
|
Display color |
16 trillions |
|
Physical density |
8800 pixels/ m ² |
|
Whole display flatness |
≤ 1.2mm Juncture |
|
Best view distance |
7-60m |
|
Best viewing angle |
V ≥ 120° H ≥ 60° |
|
Storage temperature |
-40°C - 60 °C |
|
Working temperature |
-20 °C - 60°C |
|
Driving Method |
1/4 |
|
Refresh frequency |
> 300Hz |
|
Frame rate |
75Hz |
|
Humidity(RH) |
10%-90% |
|
Protection grade |
Front IP65, Rear IP54 if not specified |
|
Working voltage |
DC 5V |
|
Power supply |
AC 110V ±10% / 220V ±10% |
|
Average power consumption |
260W/M2 |
|
Max power consumption |
800W/M2 |
|
MTBF |
10,000 hours |
|
Screen lifetime |
100,000 hours |
Control
System |
Control System |
Linsn |
|
Signal Interface |
DVI |
|
Communication distance |
CAT5cable: ≤ 100m Fiber Cable: ≥5 00m |
|
Signal transfer mode |
dot to dot synchronized with computer monitor |
