Home LED Light Products Beam 5r Platinum Moving Head Light

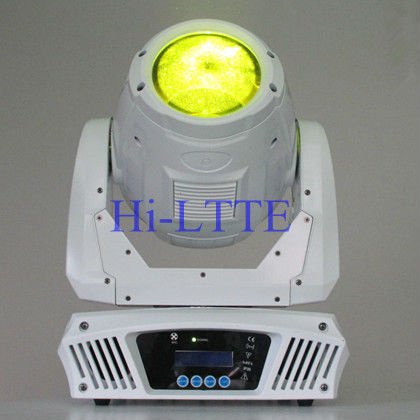

Beam 5r Platinum Moving Head Light

Beam 5r Platinum Moving Head Light
Price: Negotiable/Piece
Trade Terms: EXW
Min Order: 1/Box
Pay Type: T/T,Western Union,Paypal,Money Gram
Contact Supplier
Guangzhou Hi-LTTE Electronic Technology Co., Ltd.
Showroom Product Company Profile
Model Name: Optical System Beam 5R Moving Head Light
Model Number: HH-2C

Feature:
The Beam 5RPro is the next evolution in extreme beam moving heads. With improve optics, rotating 3 prism wheel (8-facet prism, 3-facet prism & T-shape prism), remote focus and faster movements speeds, this unit is the next evolution from our very successful Platinum Beam 5R. This new advance optical design, rotating 3 prism wheel, dimmer, strobe and focus allow for razor sharp extreme projections.

Voltage
AC110-240V by Switch Power Supply, 50-60Hz

Power Consumption
305W at 220V,50Hz

Light Source
189W Philips Platinum Projector Lamp

Life Span
2000 hours

Color Temperature
8000K

Ballast
Electronics ballast

Beam Angle
1.8°- 3.8°

Color Wheel
14  fixed dichroic colors plus an open aperture

Static  Gobo Wheel
12 rotating gobos + open

Prism
8-facet prism, 3-facet prism & T-shape prism

Focus
Linear focus from close to far

Frost
frost adjustable speed



Strobe
Mechanical Strobe 1-12 F.P.S

adjustable strobe speed

Movement
Pan0-540º/Tilt 0-270º
With Pan/Tilt fine function Auto correction function

Pan/Tilt Fine
16 Bit



Control
16 DMX Channel
LCD display
High temperature protection

Housing
Composite plastic, IP20

N.W. / G.W.
17kg  / 21kg

Packing  Size
460*460*560mm










Moving Head Beam DMX Channels:

Channels
Value
Function

1
0-255
Pan 0-540

2
0-255
Pan Fine 16 bit

3
0-255
Tilt 0-270

4
0-255
Tilt Fine 16 bit

5
0-255
Pan/Tilt Speed

6
0-255
Gobo  Wheel Rotating

7
0-255
Gobo Indexing

8
0-255
Gobo  Rotating

9
0-255
Color Wheel

10
0-255
Strobe

11
0-255
Dimmer

12
0-255
Prism wheel

13
0-255
Prism Rotating

14
0-255
Frost

15
0-255
Focus

16
0-255
Lamp on/off

Prod Model: HH-2C
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item Name: Optical System Beam 5r Moving Head Light
Lighting Source: 189W Philips Platinum Projector Lamp
Control And Programming: 16 DMX Channels DMX-512 & LCD Display
Optics System: High Brightness Optical System Glass Lens
Output: Lux140, 000@10m
Color Temperature: 8000k
Prism: Rotating 8-Facet Prism, 3-Facet Prism & T-Shape Pr
Function: Focus, Dimmer, Strobe, Frost
Color & Gobo Wheel: 14 Dichroic Colors + White & 12 Rotating Gobos + O
Net Weight: 18kg
IP Rating: IP20
Type: Philips Projector Lamp
With over one decade of experience, Hi-LTTE Electronics Technology Co., Ltd. is one of the fast growing lighting manufacture in China. We've been designing and developing contemporary moving head stage light in this field. Hi-LTTE products, with high quality and competitive price, are widely used on the stage, concerts, halls, TV studios, theaters, festivals, and other entertainment field. Now our moving heads can be found all over the world.

Since 1998, the owner of Hi-LTTE has been engaged in the sales of professional stage lights and our factory was found in 2003, which located in Guangzhou, China, closed to Guangzhou International Airport. Over 75 employees work at Hi-LTTE's primary 3, 000 square meters facility. Thanks to our R&D senior technicians, engineers and skilled workers showed selfless devotion to their work that our new products undate is very fast.

All Hi-LTTE products approved CE certification, RoHS report and TUV test. Before packing, products must go through serious, aging test ensure they are ready for toughest working conditions. And all products are packed by specially designed containers of flight cases for safe transportation to destination.

We'll wow your next event...Let's work on the order for you.

Your own specifications for the order is also welcome. We are expensive deal with OEM order since we have distributors over countries.

Warranty for ONE YEAR. Suggestions and spart part would offer when the light unworked.

In the future, we are dedicated to controlling production cost and product quality strictly and upgrading our after-sales service. We are confidence to provide you the best moving head stage light.
