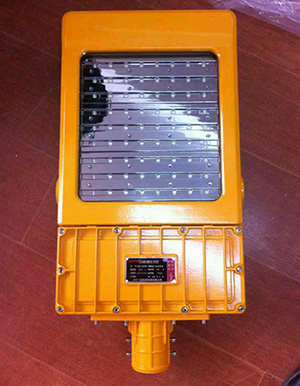

BAT55 anti-explosion light energy-efficient LED floodlight (IIB,IIC,DIP)
Youtube video web: https://www.youtube.com/watch?v=G1k4nEWTH2w
Product Description
1. Can be used in hazardous areas: Zone 1 and Zone 2 .
2. Can be used in explosive gas atmospheres of Category II B and II C where the temperature classification is T1-T4.
3. Hazardous zone : 20. 21. and 22
4. Flammable dust atmosphere.
5. widely used in the fields of oil, chemical industry , spaceflight ,war industry and so on.
Voltage | RATED power | INLET thread | Lighting source | Ex-mark | Degree of protection | Erosionproofclass | cableouterline (mm) |
AC220v,DC24-36 | 50W-140W | G3/4" | LED | Exde II BT6/CT6 GB | IP66,IP67 | WF1 WF2 | Φ 9- Φ 14 |
APPlications:
- Suitable for explosive gas environment Zone1 and Zone2.
- Suitable for IIA,IIB explosive gas environment.
- Suitable for Hazarous dust area: Zone20, Zone21, Zone22.
- Can be used in the environment of temperature group for T1~T4.
- Designed for petroleum explosion, refinery, storage, chemistry, medicine, military etc. sites with potential explosive atmosphere.
Techinical parameters:
- Meet a criterion:G3B3836.1, GB3836.2, GB3836.3, GB12476.1, IEC60079-0,IEC60079-1, IEC60079-7, IEC61241-1, EN60079-0, EN60079-1,EN60079-7, EN61241-1,
- Ex-proof Mark:Exed II BT6/CT6 Gb, DIP A21 TA, T6.
- Rated voltage: AC220V, DC24-36
- Ligting Source: LED
- Rated power: 50W,60W,72W,85W,100W,110W,120W,130W,140W
- Protection grade:IP66,IP67
- Corrosion-proof grade:WF2,WF1
- Inlet Thread: G3/4"
- Cable outer dia:9mm~14mm
Product Features:
- Aluminum alloy enclosure, surface plastic-sprayed on high-pressure electrostatic technique.
- High impact resistance tempered glass cover, stainless steel exposed fasteners.
- Seal gasket is made of heat resistant and anti-aging slicone rubber, with good features of water and dust proof.
- Cabinets of light source, electrical and connection are separated wjocj effectively decreases the temperature increasing in cabinets of light source and electric, and ensure the longtime working life. More convenient and safe in installation and maintenance.
- Reasonable LEDs layout, high efficiency and energy saving, luminous factor≥120lm/W, color rendering index ≥80, extra long lifetime >50000 hours, maintenance for long time; green product without pollution.
- Double optical design, patented reflector, high efficiency and even illumination.
- Wide input voltage range 150~260V(or DC24/36V), constantpower output, constant output power, power factor ≥0.98, with instant voltage, over current, open circuit, short circuit and surge protection etc.
- Good color rendering, cold white, nature light, warm white available for different request, look more comfortable and improve the efficiency.
- Light angle adjustable according to users request, horizontal or vertical installation.
- Steel conduit or cable wirings.
