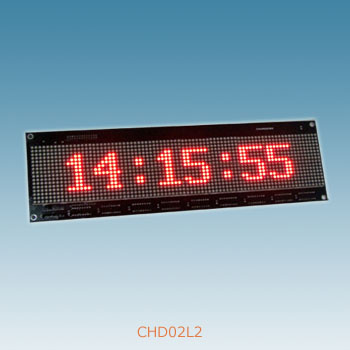

Available LED Lots Display For Parking System
Parameter
Size: 304cm*76cm
Dots distance: P4.75mm
Pixel diameter: 3.75mm (2.0mm 3.0mm 5.0mm)
Display pixel: 16*64 ( 8PCS character)
Module pixel: 8*8
Single color: Red green yellow blue white
Working Voltage: DC7V-36V
Brightness: ≥ 4500CD/m2
Max -Power: <250W/m2
Communication mode: RS232 / R485
Packing: Carton
1. Memory management divide into 220PCS area, the user can control every area conveniently
2. Up to 10 kinds of display mode, remain time and mode may be free to change by user
3. Key-press switch the display content, control simply
4. There are three kinds communicated mode: RS232 / RS485 /CAN
5. The communication agreement be opened, customer progress second-develop as your requirement, so simpler than the LCD
6. Specification: Lattice module ( 2.0 /3.0 /3.75 /5.0 ), has 3/4/5 words for your selection.
7. Color: Single color or two colors
8. Display language: English etc.
9. Goods with high quality and low price. Good after-sale service
|
serials |
specification |
size(mm) |
Size(include outer frame)(aluminum) |
comment |
|
1 |
φ 5.0 (10 character) |
610*122 |
|
module/red/RS485/RS232 |
|
2 |
φ 5.0 (8 character) |
488*122 |
630*158 |
module/red/RS485/RS232 |
|
3 |
φ 4.8 (8 character) |
384*104 |
404*118 |
High-brightness led /yellow/RS485/RS232 |
|
4 |
φ 3.75 (10 character) |
380*76 |
|
module/red/RS485/RS232 |
|
5 |
φ 3.75 (8 character) |
304*76 |
324*115 |
module/red/RS485/RS232 |
|
6 |
φ 3.0 (10 character) |
320*64 |
340*90 |
High-brightness led /yellow/RS485/RS232 |
|
7 |
φ 3.0 (8 character) |
256*64 |
|
module/red/RS485/RS232 |
|
8 |
φ 2.0 (8 character) |
160*40 |
|
module/red/RS485/RS232 |
|
9 |
Outdoor waterproof(P10, P16, P20) |
|
|
The size can be made as the customer’ s requirement |
Shenzhen Newabel Electronic Co., Ltd Was established in 2000.
It is a high-tech enterprise integrated research, manufacturing and sales of intelligent card management systems. Our main products include access control, smart lock, intelligent card reader, time attendance, patrolling and parking management system, etc.
As the leader of the smart card system developer & manufacturer in China, we provide a set of comprehensive and scientific solutions effectively, supportive and cooperative to work with our partners for produce customization and localization. Our R&D team never stops developing new products software to meet all kinds of market demand. In 2009 only, we have successfully launched 10 modes of new modes, and help our overseas partners completed 18 big projects and solve many relevant technical problems.
We have held ISO9001: 2000 quality management systems certification, approved by QS, CE, UL, FCC, RoHS.
Our products have had extensive application to the fields of telecommunication, electric power, military materials, intelligential zones, .
Our long-term partners: EMERSON, HITACHI, HUAWEI, ZTE, .
We are the only ODM supplier to them for intelligent cards and access control panels. We reply on our combined R&D and production time of just 34 days: 20 days to customize and item and 14 more to complete an entire order.
We welcome OEM/ODM orders for as few as 100 units and as many as 50, 000 units.
