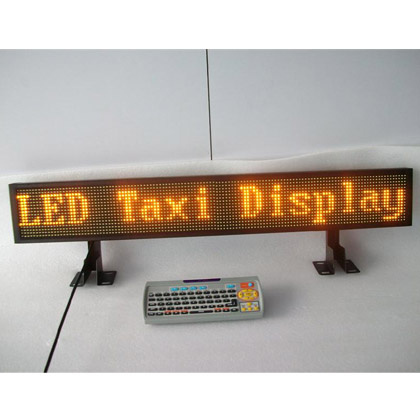

The auto LED display should be applied for floating advertising, information publishing, individualized presentation of the vehicle owner etc. With 8 characters in Chinese or 16 characters in English displayed in one line simultaneously. The holder and display speed can be adjusted according to the user's requirements.
There are several control modes for this product as follows:
A. Serial data wire.
B. Flash memory disk.
C. Remote controller.
D. GSM network (Alter the display contents by sending mobile phone messages. )
E. GSM network and GPRS (Alter the display contents by sending mobile phone messages or mass messages with computers. )
F. GPRS and GPS. (Alter the display contents by sending mass messages with computers, adding the GPRS positioning function. )
The alarm function can be implemented under all control modes, among which SMS sending function is added to the GSM mode, computer mess message sending function to the GSM network and GPRS mode, and functions of synchronous advertising contents displayed on buses of the whole city, satellite positioning management and theft-proof function to the GPRS and GPS mode.
With light weight, high technology and durable quality, it, undoubtedly, is your ideal and best choice.
| Specification Form |
| Pixel Pitch | P7.62 | Max Power Consumption | 25W |
| Pixel configuration | red or yellow | Operating Temperatures | 9v-33v |
| Display Dimension | 976*122mm | Humidity Range | 0%- 70% non condensing |
| Total Dimensions | 1000*160*43mm | Packing size | 1045*100*200MM |
| Max Lines | 2 Lines, 16 Characters per line | Input voltage | 9v-33v |
| Font Height | 5.5cm (55mm) | Output voltage | 5v adjustable |
| Enclosure Material | cartoo | Displaying mode | right to left: 3S/ 4S/ 5S
up to down: 3S/ 4S/ 5S |
| Brightness | 600mcd-1000mcd | Lifespan | >20,000 hours |
| N.W. | 4.4gk | Displaying mode | right to left: 3S/ 4S/ 5S
up to down: 3S/ 4S/ 5S |
| G.W. | 5kg | MTBF | >10,000 hours |
