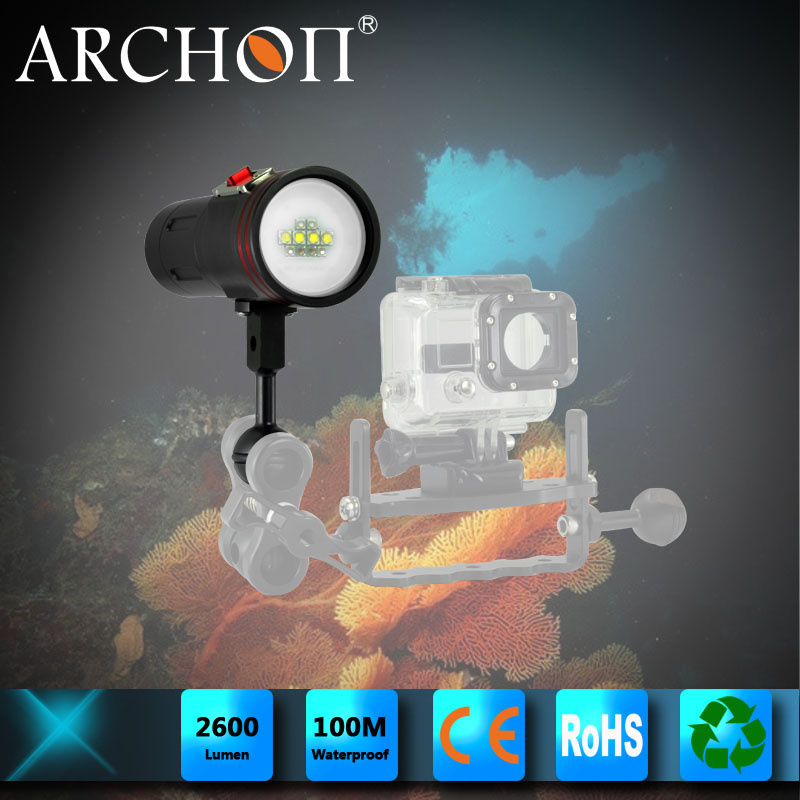

W40VR DIVE LIGHT PRODUCT SPECIFICATIONS:
Model: W40VR(2,600lumens underwater photography Light)
Description: Multifunction diving video light
OPERATING MODES:
Switch 1: Red light-purple light- UV light-OFF
Switch 2: White light-high-low-SOS-OFF
The two switches can be operated separately or simultaneously
LIGHTS SOURCE:
Bulb: White CREE XM-L U2 LED *4 (max 2600 Lumens); Red CREE
XP-E N3 LED*2 (max 200 Lumens),Purple 6565 LED*2,UV LED*2
Color temperature: White LED: 5700-7000k;
Reflector: no hotspot design, no reflector
Lens: 4mm Polycarbonate Board;
Angle of light beam:110 degree wide beam angle,
BUILD:
Body material: Durable aircraft-grade aluminum;
Maximum operating depth: 100 meters deep
Surface treatment: Premium Type Ill hard-anodizing.
Color: Black
Dimensions:124.8mm (length)*50mm (dia. Of head).
Impact resistance: 1.5M.
Underwater Weight: 220 grams (with battery)
BATTERY:
Battery: 32650 Li- ion battery *1.
Operation Instruction
Successive switching ON-OFF within two seconds to cycle through white, red, purple, UV.
SAFETY FEATURES:
Battery over-discharging protection
Polarity reversing protection.
Gas release valve
Model | W40VR Multifunction UV LED Diving Video Light |
| Bulb | White CREE XM-L U2 LED *4 ( max 2600 Lumens); Red CREE XP-E N3 LED*2(max200 lumens), purple 6565 LED*2, UV LED*2 |
| Color temperature | White LED:5700-7000K |
| Output levels | White high-white low-SOS; Red-purple-UV |
| Runtime | High: 60 min (White), low: 300 min (Red, Purple, UV) |
| Switch mode | Switch 1:red light-purple light- UV light-OFF Switch 2:white light-high-low-SOS-OFF
The two switches can be operated separately or simultaneously. |
| Reflector | No hotspot design, no reflector |
| Lens | 4mm Polycarbonate Board |
| Body material | Durable aircraft-grade aluminum |
| Angle of light beam | 120degree |
| Surface treatment | Premium Type III hard-anodizing |
| Circuit | Strengthened type step-up and step-down voltage constant current drive circuit, high efficiency double mode DC - DC regulator (PWM / PFM) and circuit in case of over-discharge of lithium-ion batteries. |
| Low-voltage-alarm function | Flash 3 times when the battery voltage lower than 2.6V then Switch to low brightness mode automatically Specially designed for diving. |
| Battery | 32650 Li- ion battery *1 With battery over-discharging protection, polarity reversing protection |
| Operation voltage | 2.8V to 4.5V |
| Dimensions | 124.8mm (length)* 50mm (dia. of head) |
| Weight | 345grams (without battery); 483 grams (with battery) |
| Underwater Weight | 220 grams (with battery) |
| Impact resistance | 1.5 M |
| Operation Instruction | Successive switching ON-OFF within two seconds to cycle through white, red, purple |
