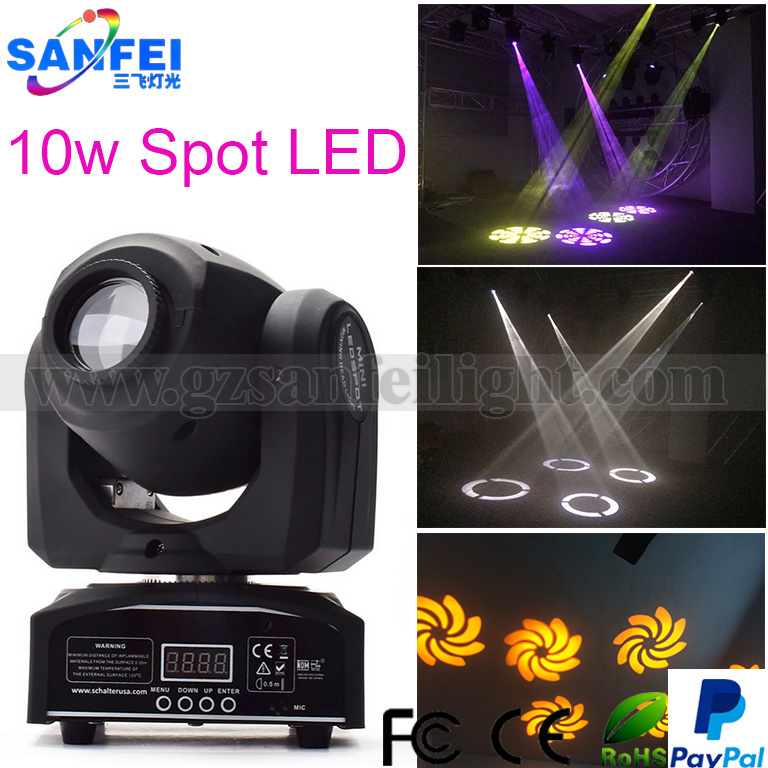

Newest Gobo 10W Moving Head LED Spot Light
Specification:
Voltage:AC100~240v 50/60HZ
Power comsuption:26W@120V, 27W@230V.
Light Source:10W Cree LED Source.
Menu Display:LED display
Rotating gobo wheel:7 fixed gobos + spot, Gobo Shake effect, Gobo scroll mode
Prism:3-facet prism
Dimmer:0-100%
Focus:Manual focus
Pan:540°
Tilt:230°
Beam Angle :13°
Control Channel:9/11CH
N.W:3.5KG
G.W:4KG
1. "CH9" Mode of DMX 9CH
DMX 9CH Mode Channel |
| CH | number | Function Description |
| CH1 | 0-255 | Pan |
| CH2 | 0-255 | Tilt |
| CH3 | 0-255 | Color wheel |
| CH4 | 0-255 | Gobo wheel |
| CH5 | 0-255 | Strobe |
| CH6 | 0-255 | Dimmer |
| CH7 | 0-255 | X/Y Speed |
| CH8 | 0-255 | modes |
| CH9 | 0-255 | Dim modes |
2."CH11" Mode of DMX 11CH
DMX 11CH Mode Channel |
| 1 | 0-255 | Pan |
| 2 | 0-255 | Pan fine |
| 3 | 0-255 | Tilt |
| 4 | 0-255 | Tilt fine |
| 5 | 0-255 | Color wheel |
| 6 | 0-007 | Gobo 1 |
| 008-015 | Gobo 2 |
| 016-023 | Gobo 3 |
| ......... | .......................... |
| 056-063 | Gobo 8 |
| 064-071 | Gobo 1 shake |
| 072-079 | Gobo 2 shake |
| ......... | .......................... |
| 120-127 | Gobo 8 shake |
| 128-189 | GOBO rotation from fast to slow |
| 190-193 | Stop |
| 194-255 | Gobo rotation from slow to fast |
| 7 | 0-255 | Strobe |
| 8 | 0-255 | Dimmer |
| 9 | 0-255 | X/Y speed |
| 10 | 0-069 | Non |
| 070-079 | Turn off the light when X/Y moving |
| 080-089 | Non |
| 090-099 | Turn off the light when color wheel moving |
| 100-109 | Non |
| 110-119 | Turn off the light when gobo wheel moving |
| 120-199 | Non |
| 200-209 | reset |
| 210-249 | Non |
| 250-255 | Sound |
| 11 | 0-020 | Normal |
| 021-040 | stage |
| 041-060 | TV |
| 061-080 | Architectural |
| 081-100 | Theatrical |
| 101-255 | Normal
|
Packaging & Delivery
| Price term | EXW FOB |
| Payment terms | TT, Paypal, Western union |
| Shipping Way | 1. by Express ( DHL, Fedex, Ups, EMS)
2. by Air
3. by Sea |
| Port of departure | Guangzhou |
| Sample time | 1-3 business days |
| Mass Production time | 2-7 days, but ultimately subject to order quantity |
| Packing | 1.Using EPE packing the goods in case damage
2. Then put it into the Standard carton
3. Flight case optional |
| Warranty | Two years |
| After-sell Service | 1.If there is a problem with the product,please describe it and send the necessary picture or video to us for analyzing.
2.Then we will guide you how to fix it and provide free accessories if needed.
3. For big problem, you can send the products to our factory, then we will send a new one to you! |
About us:
Guangdong Sanfei Stage Lighting Equipment Co., Ltd, founded in 2005, built our own brands, engaged in professional stage lighting and equipment research and development, production, installation, sales.
We have a skilled professional design and management personnel, to make our products both from the appearance and internal structure through careful design, strict inspection and quality guarantee.
You can visit www.gzsanfeilight.com to know more about us and our products.
Our Services:
a. we are sure to provide you high quality with competitive price.
b. sample order is available for our first cooperation
c. Any idea of the design, just send me your design image, we could help to suit your market.
d. Payment term: TT(30% as deposit, 70% as balance before shipping) / Western Union / Paypal
e. As usual we do EXW price, also we have several long term shipment partners that could provide competitive shipping cost to any country port, so my pleasure to provide FOB, EXW price as reference.
f. Any inquiry, we would try to reply at once, and wont let you wait more than 24 hours.
Why us?
-Price: We are factory and able to offer better price than trade company;
-Good quality: We are a manufacturer and exporter of various 200 230W beam light, LED moving head ,LED beam moving head light,LED par light .we are professional on the moving lights assembly and testing;
-On time delivery: Delivery the goods in the confirmed time;
-Professional seller: Good communication in patient and well know our products;
-OEM: Welcome.
Tel: + 8613760668725
Guangzhou Sanfei Stage Lighting Equipment Co., Ltd is a professional stage lights manufacturer, located in Baiyun District Guangzhou of China. It has been in this line of business for 8 years and has very good markets in Europe, North America, South America, Middle East, and North Africa, We have widely experience to export and sincerely provide OEM and ODM.
Our products are suitable for various entertainment and recreation place, such as stage, the multimedia hall, TV showroom, disco, night club, bar, KTV, and home party.
Our main products are Beam lights, moving head lights, LED PAR lights, LED wall washer lights, LED effect lights, Strobe lights, Controller, fog machine, dozens of products which all have been certified by CE and RoHS.
BEYOND YOUR DREAM is the spirit of our company. Guangzhou Sanfei Stage Lighting Equipment Co., Ltd pay more attention to the quality, we try our best to improve ourselves in every step, what's more, we concerns every worker's professional attitude and study. Also, we focus on every client's requirements, we hope that with the help of our hardworking, you will have an excellent development, being stronger and stronger, and achieve your business grow bloom in the coming future.
