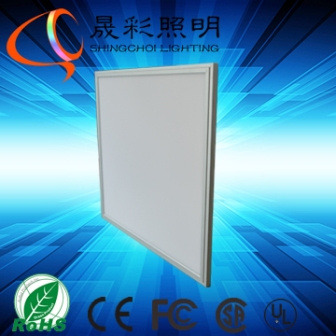

Aluminum LED Panel Light, 600*600, 36W Square Panel

LED PANEL LIGHT TECHNICAL DATA

Input Voltage	85-265V	Lighting Source	Epistar
Wattage	36W	Dimmable	No
Light Output	80-85lm/W	Warranty	3 Years
LGP	Mitsubishi	Housing Material	Anodized Aluminum
Power Factor	>90	Body  Color	Silver/White/Black
CCT	2700k-6500k	Size	595*595*12mm
CRI Rating	>80	MOQ	100 pcs
Beam Angle	120°	Sample Available	Yes

LED PANEL LIGHT GENERAL DESCRIPTION:

1. The LED panel light is currently the most effective solution for replacing old tiles equipped with fluorescent tubes. With electrical savings of up to 60% an estimated life of over 30,000 hours, operational, maintenance and replacement costs drop significantly with an LED Panel.

2. SHINGCHOI LED panel light are in different style with different design, which using the light side guide technology, it brings incomparable visual comfort with a perfect homogeneity of the light. It's uniform and soft, much more real visual, no dazzle light, no dark zone.

3. LED panel light is ideal for commercial light as offices, bank offices, conference rooms and home light as kitchen, bathroom, bedroom and so on.


LED SIDEWAY PANEL LIGHT FEATURES

1.                                Imported LGP, light transmitting rate over 80%
2.                                Superior aluminum frame, anodize oxidation processing, well heat dissipation, long life span,      high-grade appearance. (Different coated frame is welcome.)
3.                                Instant start, no humming and flickering, no dark area, uniform and soft light, light output over 80lm/w
4.                                Isolation constant current power supply, much more safe. PF>0.9, energy saving up to 80%
5.                                Epistar Leds, CRI>80, more real
6.                               Special circuit design to ensure the independent operation of each led chip
7.                                Easy and various installation, suspended, mounted, built-in, etc
8.                               CE & RoHS certificate for product. UL, PSE for driver can be offered
9.                                With 3 Years warranty


INSTALLATION GUIDE

EMBBDDED INSTALLATION

1 .Take out the power supply.
2. Put it into the back side of the panel light.
3. After the installation of input and output of power supply, please put the panel on the ceiling .
4. Turn the front side against the floor. (P3.4)
5. Adjust the alignment of panel and the ceiling, then finished. (P5)
6. After installation, turn on the power to check. (P6)

SUSPENDED INSTALLATION:
1. Fix the hanging line on the ceiling.
2. Lock sleeve to the thread of panel light.
3. Connect the input line of power supply with AC power.
4. Turn on the power to check.


MOUNTED INSTALLATION:
1.Fix the bracket of LED panel light.
2.Screw the bracket on the ceiling roof or wall.
3.Take the side off.
4.Put the LED panel light into the bracket from this side.
5.Fix the side which was taken off by step 3.


PACKING AND DELIVERLY

Product size (mm)	N.W (kg)	Note	Carton Size (mm)	Pcs/carton	G.w(kg)
300*300	2 kg	1 pcs/box	350*220*405	5pcs/carton	11.5kg
595*595	3.5 kg	1 pcs/box	645*220*690	5 pcs/carton	18 kg
620*620	7.6 kg	2 pcs/box	665*210*710	6 pcs/carton	24.5 kg
300*1200	3.8 kg	1 pcs/box	345*220*1390	5 pcs/carton	19.5 kg
600*1200	8 kg	1 pcs/box	645*130*1305	3 pcs/carton	24.2 kg

APPLICATION

Led panel light can be extensively applied to General lighting, such as mall, store, hotel, office, supermarket, commercial building, station, warehouse, residential, parking lot, home, restaurant, railway, subway station,
bank, exhibition gallery, library, closet, factory, etc. Replace conventional fluorescent lamp or sodium lamp.
