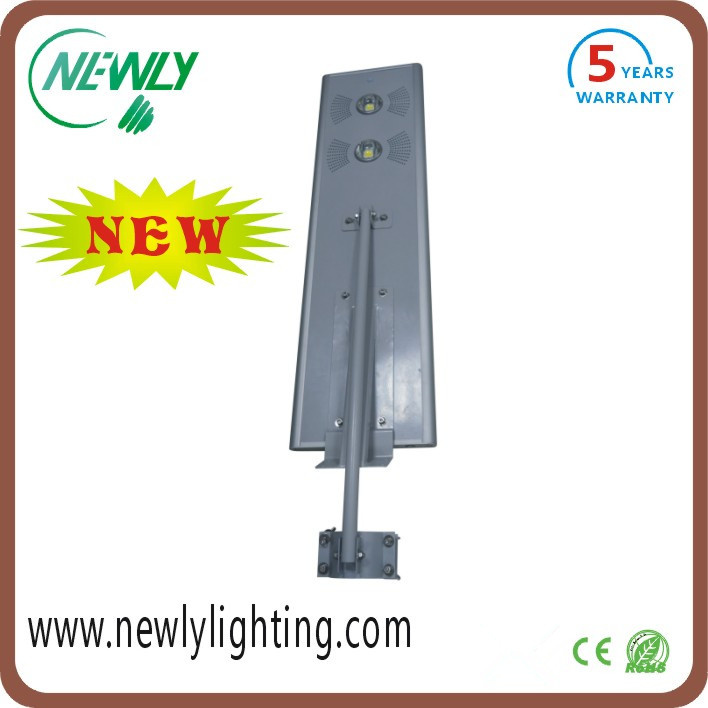

Parameter of solar led street lighting
Item No. | Accessories | Specification | Parameter |
XLETY-BS-40W
(Montion sensor) |
Solar panel |
Sunpower solar panel |
18V 60W |
Lithium battery
for solar energy |
Lithium battery | 12V24AH |
| Material | High quality aluminum |
| LEDS |
Bridgelux,
Convex principle |
12V 40W |
| Size L*W*T (MM) | 1180*325*140mm |
| Montion sensor | Yes |
100% light when the people come,
and 50% light when the people left |
Over current protection | Yes |
| Lumen(lm) | All-electric mode | 3250-3500 |
| Power-saving mode | 1620-1800 |
| N.W./G.W. | 18.5kg/19kg |
| Colour tempeature(K) | 5000-6000 |
| Lighting indensity(LX) | 30 |
| Working time(h) | Full brightness mode | ≥15 |
| Power-saving mode | ≥40 |
| Working temperature(ºC) | Discharge temperature | -20ºC-+60ºC |
| Charging Temperature | -20ºC-+70ºC |
| Storage Temperature | -20ºC-+45ºC |
| Protection class | ≥IP65 |
Recommended mounting
height range (m) |
6-7m |
| Recommended fix up the lamp distance(m) | 18-20 |
| View angle(°) | 120 |
| Package | 1sets/Ctn, 23kg |
| Outer Packing | 1320*400*220mm |
Features:led street light
New design of intergrated, simple, stylish, lightweight, practical.
Using the solar power, green energy, low-carbon environment, and create green earth from everybody.
Using infrared body sensor technology,100% light when the people come,50% light when people left , save energy.
Using lithium iron phosphate batteries, green batteries, low-carbon environment, to ensure that the product life
Don't need install wiring, it is very easy to install
Waterproof design , safe and reliable
Scalable timing, sound, electricity complementary, and other smart mobile monitoring module
Modular design, easy installation, maintenance, repair
Using alloy material as the main structure, with good anti-rust, anti-corrosion function.led street light
Advantages for 40w solar led street lighting r sale
Save 80% more energy compared with traditional lighting fixtures
Easy to install and use, secure and reliable
No UV or RF interference, No mercury or lead
Light body is made of good quality aluminum alloy with painting or anodic treatment on surface, exiguity and unique design, excellent heat dissipation
High quality, high efficiency, high CRI & luminous flux,
long life span>50000hrs
High brightness, low consumption, green for environment
PMAM lens, 120°for your choice
Built-in LED Meanwell driver with IC ensure stability of light, it can work efficiently under
AC85265V in different countries and regions.AC12/24Vled driver is also availableled street light
