Advantages:
- a. All In One Integrated Design(Put Solar Panel, LED Lamp, Battery and Controller in One Box)
- b. Without Any Cable, Easy to Install and Ship
- c. Longer Service Life
- d. Easy to Maintain and Replace Traditional Lights
- e. Save Energy and Eco-friendly
- f. Support Long Working Time Up To 3-4 rainy days Once the Battery Full Charged
- g. Waterproof Grade IP65 for Outdoor Application
- h. Resist any Bad Weather Condition and Working Temperature Range from -20°C to 60°C
Newsky power
New design

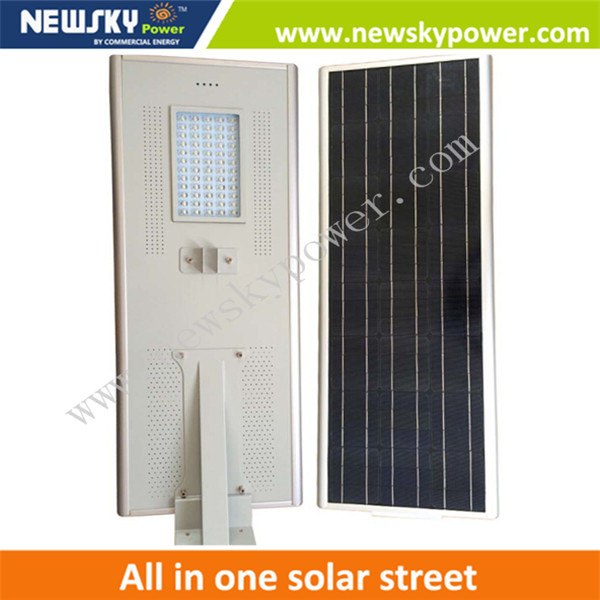

all in one solar street light for park
all in one solar street light for park
specification
| Model | NSP50 (no sensor) | NSP60 (no sensor) |
| LED Light | Max power | 12V 50W | 12V 60W |
| Led chip | Bridgelux , USA |
| Lumen (LM) | 6000Lm | 7200Lm |
| Life time | 50,000hours |
| Solar panel | Max power | 18V/80W | 18V/90W |
| Solar cell | High efficiency, Mono |
| Life time | 25years |
| Battery | Capacity | 39AH | 42AH |
| Type | Lithum-ion LiFePO4 |
| Life time | 5 years |
| Charging | By sun | 6-10 hours effective sunlight |
| Lighting | discharge | >12hours | >12hours |
| Work temp | Range(ºC) | Charging:0ºC~+60ºC, discharging: -20ºC~+60ºC storage:0ºC~+45ºC |
| Colour temp | Range(k) | 6000-6500k |
| Height | Range (m) | 8-9m | 8-9m |
| Spacing | Range (m) | 25-30m | 25-30m |
| Work mode | Customized available | Time control, Full power +dimming | Time control, Full power +dimming |
| Material | Aluminium alloy |
| Certificate | CE / ROHS / IP65 |
| Warranty | 3years |
| Packing & Weight | Product size(mm) | 1080*450*153 | 1080*450*153 |
| Product weight | 24kg | 26 kg |
| Carton size(mm) | 1190*520*220 | 1190*520*220 |
| GW .for carton | 24.5kg | 26.5kg |
| Packs Containers | 20GP | 231sets | 231sets |
| 40HQ | 516sets | 516sets |
all in one solar street light for park
Material of all in one solar led street lighting :
1.High quality aluminum alloy, high strength, resistant to rust.
2.Anti-static paint, excellent corrosion resistance.
3.Waterproof sealing washer can bear high temperature, adapted to a variety of climates.
******************************************************************************************************************
all in one solar street light for park
FAQ
1. can the lamp work in marine environment?
Yes, it is suitable for marine. The shell material is Aluminium alloy , the inside components has anti-corrosion treatment. The waterproof is IP65.
2. how many day will work in continuously rainy days?
it can work continuously in 3-4 rainy days.
3. light on time and working mode?
NSP8W-NSP40W: Light on at dusk, light off at dawn auto. PIR motion sensor detection.
Full power lighting when a human move in the sensors range. 30% power lighting when a human move out.
NSP50W-NSP60W: Light on at dusk, light off at dawn auto .Time control, Full power + dimming power.
4. What's the color temperature you can make?
The temperature is 6000K, it canbe customized according customer's request.
5. can you accept OEM, is it free?
Yes, we supply OEM service. It is free if the order quantity over 100pcs.
6. what't the life span and how to change?
The lifespan of battery is 5years. It is very easy to replace it..
7. Do you accept customized production?
Yes, we accept ODM for bulk order. The power of solar panel, LED light, capcity of battery canbe customized.
8. can the lamp work in cold place?
Charging:0ºC~+60ºC,discharging: -20ºC~+60ºC storage:0ºC~+45ºC
work condition:
temperature during the day should be higher than 0ºC
temperature in night should be higher than -20ºC.
*******************************************************************************************************************
Warranty
3 years warranty time for the whole lamp.
*******************************************************************************************************************
