Crep Opto Co., Ltd is specialized in R&D, production and marketing of led bulb lights. Our company passed and strictly enforces the requirements of ISO9001quality management system to promote all our product through CE, ROHS SAA and FCC and other international safety certification. We can supply 3~12.7W LED bulb light.

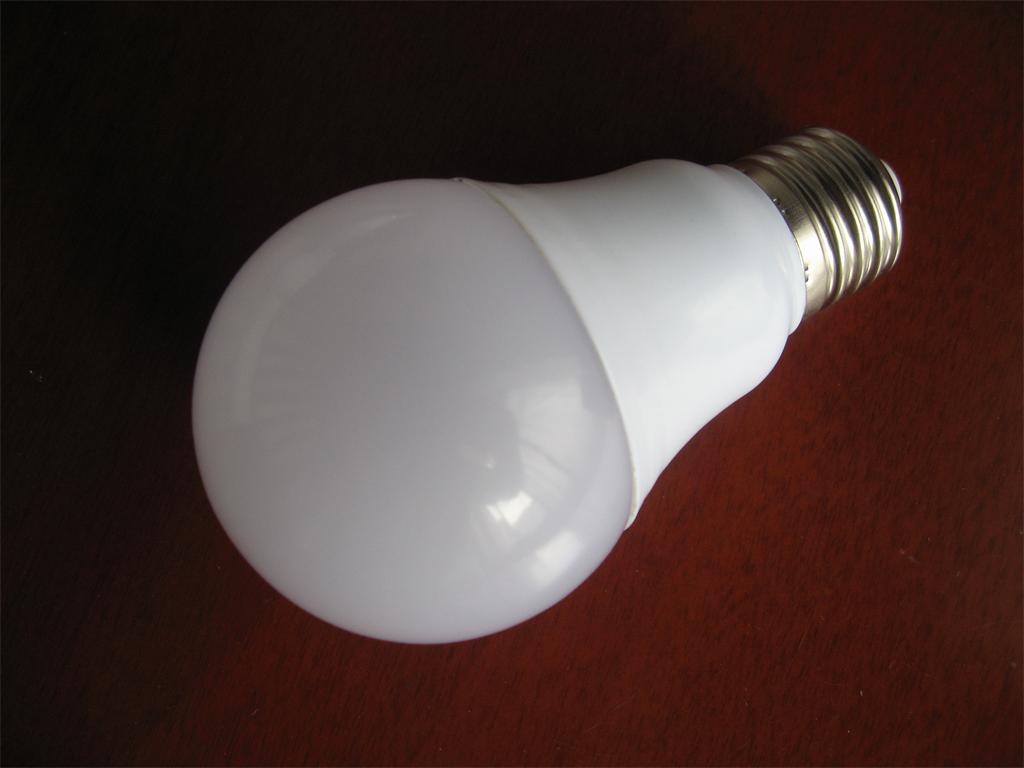

Model: CPS-DP-E27-47/46
Power: 9/12W
Input volatge: AC100~240V 50/60Hz
Chips: Epistar SMD5630 /SAMSUNG 5630
Size: D65*130mm
Luminous flux: 850lm/1100lm
CRI: >82Ra
Lifespan: 50000hrs
Certificate: CE. RoHS
Main feature
1. Use imported Epistar SMD5630 chips and high lighting transmittance rate PC cover, the lumenious effiency reach 85lm/W
2. Use high quality CE testing led driver, the PF is above 0.92.
3. The housing adopte composite material including the plastic layer plus al alloy layer that can keep the heat-sink efficency and prevent electrical shock.
4. The power can be made as 5W/7W(60mm*110mm) 9W/12W(65mm*130mm) the luminous flux can reach 425/595/765/1020lm
It can be used for replace the 40W~75W Incandescent bulb.
5. Wide bean angle can reach 300 degree.
5/7W (D60*110mm)
9W 12W ( D65*130mm)
Crep other 300 degree beam angle LED Bulb
|
Item |
Unit |
CPS-DP-E27-46 |
CPS-DP-E27-47 |
|
Total power |
W |
12 |
9 |
|
LED power |
W |
11(24PCS SMD5630) |
8(14PCS SMD5630) |
|
Size |
mm |
Φ65*130 |
Φ65*130 |
|
Lumens( Typ ) |
Lm(Ttp) |
1000 |
750 |
|
Lighting efficiency |
Lm/W |
83 |
83 |
|
illumination |
Lux@1M |
85 |
72 |
|
Lux@2M |
23 |
18 |
|
Lux@3M |
12 |
8 |
|
forward current |
mA |
140 |
140 |
|
nominal voltage |
V/Hz |
100-240V AC50/60Hz |
|
colour temperature |
K |
WW:2500-3500K; NW:4000-5000K; CW:5500-6500K |
|
color rendering index |
Ra |
Typ:80 |
|
Beam angle |
Degree |
320 |
|
designed life |
Hrs |
>40000 h |
|
Working life |
Hrs |
>50000 h |
|
Item |
identification |
range of application |
Unit |
|
input voltage |
V |
100~240V AC50/60Hz |
V/Hz |
|
working current |
mA |
Max.150 |
mA |
|
anti-static electricity |
ESD |
Space discharg 8kV ,Contact discharg 4kV |
V |
|
operating temperature |
Topr |
-25-+45 |
°C |
|
storage temperature |
Tstg |
-30-+50 |
°C |
Pa
|
Item |
package size |
quantity /box |
Net weight |
Gross weight |
|
CPS-DP-E27-46 |
360*360*310mm |
50pcs |
4.2Kg |
5.2Kg |
|
CPS-DP-E27-47 |
360*360*310mm |
50pcs |
4.2Kg |
5.2Kg
|
