Home LED Light Products 9W Recessed Lamp Ceiling Down Light LED Downlight (SW-CL09-A01)

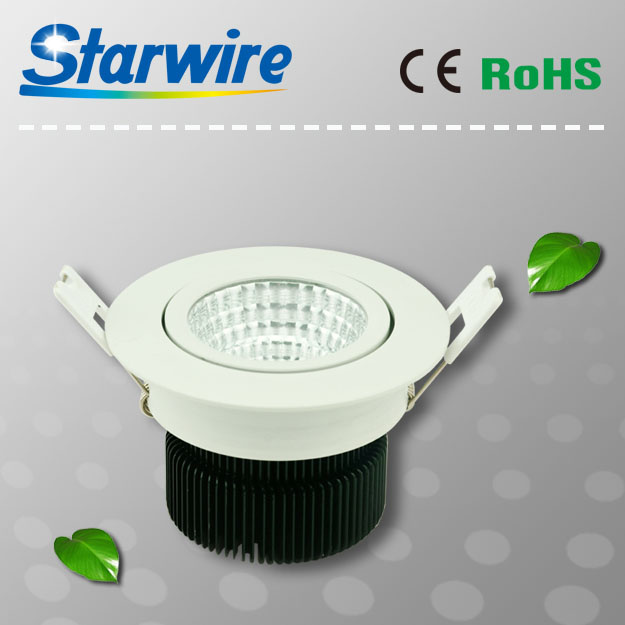

9W Recessed Lamp Ceiling Down Light LED Downlight (SW-CL09-A01)

9W Recessed Lamp Ceiling Down Light LED Downlight (SW-CL09-A01)
Price: US $ 29/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 5/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram

2015 Starwire Lighting Top Quality Commercial downlights

Driver&COB:
1. Quality LED Chip: Original Cree/Citizen COB, Samsung 5630 led and Mainland encapsulated Epistar 17*34 chip COB
2. Brand driver:  Philips, Osram, Meanwell, Tridonic and so on.

Test Facility:
1. Goniophotometer(Brand: Everfine, with 3.5mx12m dark room, can generate IES document)
2. Integrating sphere(Brand: Everfine, 1.7meter diameter)
3. ERP aging test room(approvalled by TUV Rheinland)

Option:
1. RA80 standard, RA90 RA95 is available.

Certification:
CE RoHS(approvalled by TUV Rheinland), SAA, UL is pending


Model

SW-CL08-A01 & SW-CL09-A01

Input Power

8W± 10%

Input Voltage

AC100-240V 50/60Hz

LED Current

300mA

Light Source

Epistar

CCT

3000K/4000K/5000K

Beam Angle

60º

CRI

>80

Luminous Flux(lm)

3000K

616lm± 10%



4000K

648lm± 10%



5000K

670lm± 10%

Model

SW-CL08-A01

SW-CL09-A01

Product size:
Size: Φ90*61mm,
cutout: Φ75-80mm
Size: Φ90*61mm,
cutout: Φ75-80mm

IP Rate

IP20

Adjustable direction

2 direction

Surface color

White+Black

Working ambient temperature

-10 ~ 50ºC


COB LED Downlight Selling Points


1. 99.99% Quality Guaranteed: 3 years warranty!
2. Elegant Design/ 50,000hours Long Life-span/Reasonable Prices!
3. High Lumen Output:
Super bright LED Chips, Unique large size encapsulation of LED,
Make the light looks more even and beautiful;
4. Good Heat Dissipation:
Use aluminium as the material of heat dissipation;
5. Solid-state, high shock and vibration resistant;
6. Constant current driver;
7. No ultraviolet and infrared radiation;
8. No mercury or other harmful elements;
9. No flash of strobe light.

Prod Model: SW-CL09-A01
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color Temperature: Cool White
Lamp Body Material: Chrome
Source Number: Single Plug
Installation: Exposed Type
Lamp Installation: Plug Lamp
Switch Type: Touch On/Off Switch
Warranty: 3 Years
Application: Home Furnishing
IP Rating: IP44
Certification: RoHS
Shenzhen Starwire Technology Co., Limited, is a professional manufacturer specializing in producing and selling various LED related products: LED bulbs, LED Strip, LED modules, LED floodlight, LED tube and other related products. "No captious customer, only deficient service" is our company's business concept and service principle. "To be the best LED light supplier in China" is our mission. With the effort of 200 workers, we've earned our customer's trust and support since foundation in 2007.
Through our working experience and manufacturing technical capabilities, our company has already obtained ISO Quality Certification and CE Certification. Our R&D department is constantly researching and developing new and innovative lighting series products for the ever-changing market needs. We choose famous LEDs from well-know LED producer to ensure the quality of high power LED products, with product quality controlled by our company. Our quality promise is: There is no best, only better. We strive to exceed 99% yields, and customer satisfaction is our goal.
