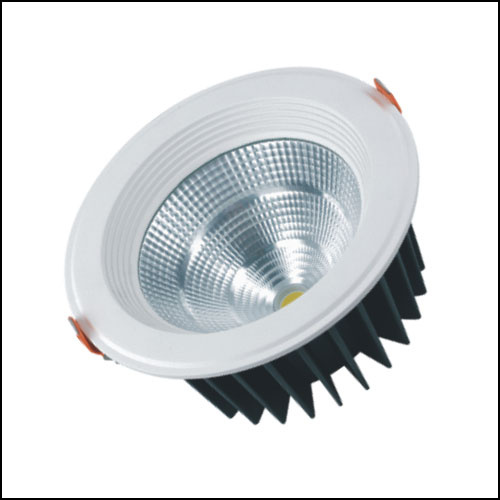

9W LED Down light
Product Description:
Brand: ALLWAY LIGHTING
Model: LQ-TD033B-3F/4F/5F/6F/8F/10F
Power: 1*9W/1*15W/1*20W/1*30W/1*40W/1*60W
Specifications:
Model NO: LQ-TD033B-3F4F/5F/6F/8F/10F
Input Voltage: AC100~240V/ 50~60Hz
LED Chip: Citizen
Power Factor: PF≥ 0.9
CCT: 3000K / 6000K
CRI: ≥ 80(3000K), ≥ 70(6000K)
Beam angle: 24° /60°
Lamp Temperature: ≤ 50º C
Working Temperature: -20º C~+50º C
Material: Die-casting Magnesium
Features:
1. Driver: Adopt series circuit, with function of automatic protection circuit.
2. Input Voltage: 100-240VAC, Wide voltage design, available for whole world use.
3. Energy saving: Only 20% power consumption of fluorescent lamp and
Incandescent lamp.
4. Environment friendly: No UV or IR radiation.
5. Long lifespan: >30.000hours.
6. Maintenance Free, Easy for installation: Ceiling or wall surface-mounted.
7. Quality: CE, ROHS, FCC, SAA, C-Tick.
NOTICE:
1. Please read the specification first, to make sure the service environment matches the conditions in
The specification before using.
2. Please confirm the applicable power supply before using.
3. Make sure the switch of product is off before connect to the power supply to prevent electric shock.
4. Operation against rules may damage your property even harm to your personal safety.
5. Preliminarily estimate required quantity of LED lights, then according to the power rating of single LED
Light to figure out the total power and design power supply plan.
6. Dangerous high voltage, Non-professionals are not allowed to maintain the products.
7. If the exterior flexible cable or wire is damaged, it must exchange by the supplier, its agent or other
Similar qualified personnels to avoid dangers.
| Specifications |
| Item Number | AW-TD033B-3F |
| Diameter | Φ108*52 mm |
| Hole Size | Φ95 mm |
| Power | COB-9W |
| Led Quantity | 1 x 9W |
| Flu | 540 LM |
| Packing Quantity | 50 pcs/carton |
| Light source | (CITIZEN) COB |
| Voltage | AC100-240V 50/60HZ |
| Color Temperature | 3000K/6000K |
| Beam angle | 24º / 60º |
| Lamp temperature | ≤50°C |
| PFC | ≥0.9 |
| CRI | ≥80(3000K),≥70(6000K) |
| Material | die-casting Magnesium alloy |
Allway Lighting is professinal LED lighting manufacturing company that is founded in 2006 and locates in Zhongshan City.
Our main product is LED downlight, panel light, ceiling light, track light and bulb.
Our factory covers 5000 square meters and runs around 100 employees.
We have a skilled team for production, qualified R&D team for new product developing and an experienced team for sales service.
There are a wide range of qualified and novel downlights available, which 20 of them owns structure patents. Most of our products are qualified with GS/SAA/FC/CE/RoHS/CCC standard and our company is running ISO9001 system. What's more, we are able to design and develop new product for you, free of charge.
We dedicate to LED lighting developing and manufacturing.
You're welcome to contact us for continuous cooperate.
