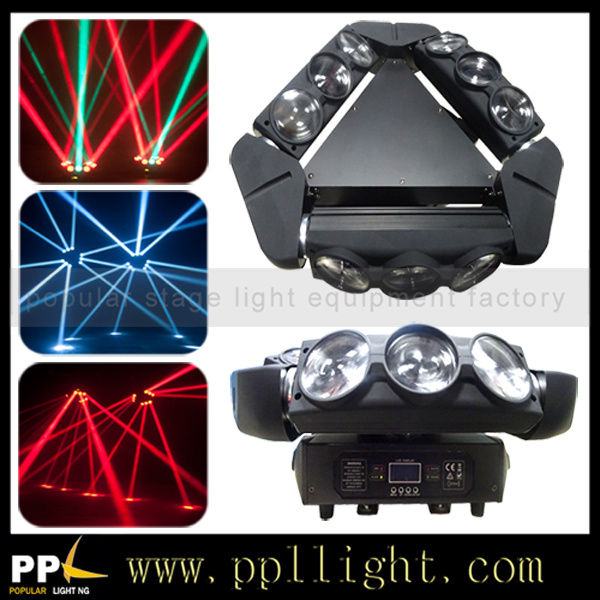

Feature:
1.RGBW 4IN1 CREE LED
2.Unique lighting fixture with quick sweeping narrow beams
3.combined with an 3 x 3-Zone LED chase
4.smooth moving head ,X asix endless rotate.
Technical Parameter:
Power Consumption: 140W maximum
Voltage: AC 100-240V 50/60Hz- IEC socket
light source:9 x 10-Watt RGBW Cree LEDs
Extremely Long Life:50,000 hr
3 Operational modes: Sound Active, Show Mode, DMX Controlled
Master/Slave Set Up or Stand Alone
2 DMX Channel Modes: 12/43 DMX Channels
DMX-512 Protocol
Dimming: 0 - 100% electronic dimming
Includes exciting sound active built-in programs
LED pulse & strobe effect
Tilt:0 - 185 degree from smooth Stepper Motors
Pan:0 - 360 degree
Beam angle: 5 Degrees
Includes Omega quick lock brackets
Mount on a wall, trussing, or set on the ground
PowerCon AC IN/OUT on rear to daisy chain power (up to 5 @ 120V and 9 @ 230V )
Display :4-Button DMX LED Display
Dimensions (LxWxH): 458 x 429 x 208mm
Weight: 10.6 kg
Channel Chart:
| 12CH | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| Function | X motor | Y1 motor | Y2 motor | Y3 motor | Dimmer | Strobe | Red Dimmer | Green Dimmer | Bulb Dimmer | White Dimmer | Effect | Effect Speed |
|
|
|
|
|
|
|
|
|
|
|
|
|
| 43CH | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| Function | X motor | X motor rotate | Y1 motor | Y2 motor | Y3 motor | Dimmer | Strobe | LED1 Red Dimmer | LED1 Green Dimmer | LED1 Blue Dimmer | LED1 White Dimmer | LED2 Red Dimmer |
| 13 | 14 | 15 | 16 | 17 |
| 18-39 |
| 40 | 41 | 42 | 43 |
| LED2 Green Dimmer | LED2 Blue Dimmer | LED2 White Dimmer | LED3 Red Dimmer | LED3 Green Dimmer | LED3 Blue Dimmer |
| LED8 White Dimmer | LED9 Red Dimmer | LED9 Green Dimmer | LED9 Blue Dimmer | LED9 White Dimmer |
Trade terms:
| Price Term | exw price |
| Payment terms | T/T,Paypal,Western union |
| Shipping Way | 1.By express(DHL,Fedex,Ups,EMS) |
| 2.By air |
| 3.By sea |
| Sample time | 1-3 workdays |
| Production time | general 5-10 days,depend on your order quantity |
| Packing | 1.Standard Carton |
| 2.Flightcase |
| Warranty | 1 years |
| After-Sell server | 1.If there is some problems with the product,please describe it and sent thenecessary picture or video to us for analyzing. |
| 2.Then we will guide you how to fix it and provide free accessories if needed. |
3.1year quality guarantee at least, and we will provide free parts for replacement if any problem belong to us during the period(Delivery cost paid by customer);1 year later, we can provide spare parts for replacement based on certain charge.
|
Company profile:
Guangzhou Baiyun Popular Stage Light Equipment Factory is a professional stage lighting manufactory which provides integrated services of research, production, marketing, after-sales inquiry, repair and maintenance. Our equipment are widely used in professional theater, entertainment centers, bars, parks, clubs, nightclubs and multifunctional units of conference halls. Compliant with CE and RoHS standards, our products main involve LED moving head lights, LED PAR lights, controllers, Moving head light, etc.
With strong beliefs in "Practical, Professional & Powerful" to the products, the company provides remarkably superb lighting Performance to all Professional Audience.
Hope we can grow together on the coming days.
Why choose our products?
It's one of our best selling item. Using top quality light with very favourable price. Save money! Stable quality. Once you check ourproduct, you will love them. Good quality for each parts. Even package.
So, no need to worry about quality. Our quality won't let you down. As we never make low quality products. Welocme company who care about Quality!
Keep aways from rubbish products! Trust us! Choose us!
