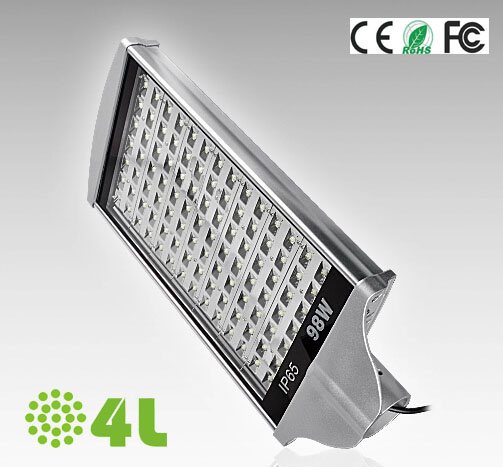

Basic Info.
Model NO.:4L-S009-98W
IP Rating:IP65
Certification:CE, FCC, RoHS
Color Temperature:Warm White/Nature White/Cool White
LED Chips Brand:BRIDGELUX
Lamp Body Material:Aluminum
Input Voltage:AC85-265V
Power:98W
With Light Source:With Light Source
Application:Outdoor, Highway, Parking Lot, etc...
Warranty:3 Years
Luminous Flux:130 lm/W
LED Quantity:98PCS LED
Power Efficiency:>90%
Pf:>0.95
Light Source:BRIDGELUX LEDs
Export Markets:Global
Product Description
Features:- Integated 6063 aluminum housing for the heat dissipating,
greatly extending the life span of lighting source.
- Free of dust and water, suitable for outdoor.
- Processed by painting treatment and anodic oxidation, solid and corrosion resisting.
Street light for Applications: Outdoor, Highway, parking lot etc...
Mechanical Specifications:
IP Rating: IP65
Heat Radiator: Anodized Aluminum
Packing Type: 1unit /CTN.
Power Consunption | 98W |
| Luminous Flux | 130lm /W |
| Input Voltage | AC85-265V |
| Tatal Harmonic Distortion | ≤9% |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| CCT | 2700--3200K/4000-4500K/6000-6500K |
| CRI | 75-85 |
| Junction Temperature | ≤75°C |
| Working Temperature | -40°C - + 55°C |
| Storage Temperature | -25°C - + 55°C |
| IP Grade | IP65 |
| Beam Angle | 120° |
| Dimension (mm) | 485*305*80MM |
