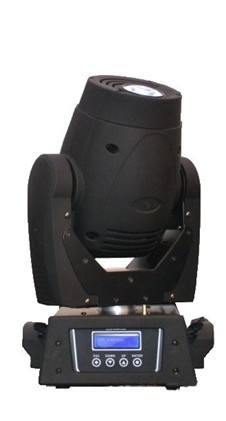

90W LED SPOT Light
Technical Specification
Voltage: AC90-260V 50-60Hz; Consumption: 240W
Luminus high power 120W white LED unit(CSM-360-W65S-D22)
50, 000 hours lifepan and low power consumption
16bit smooth and precise resolution for PAN/TILT movement
540° /630° Pan and 270° Tilt movement
Scan position memory, auto reposition after unexpected movement
1 color wheel with 7 dichroic colors plus open
Variable direction rainbow effect with speed adjustable
1rotatable gobo wheel with 7 rotatable interchangeable gobos plus open(3metal and 4glass gobos)with speed adjustable, stream effect, dithering effect and rotatable clockwise or anticlockwise
1 static gobo wheel with 9 interchangeable gobos plus open
Gobo size 27.9mm(external dimensions)/23mm(inner dimensions)
1 rotatable 3-facet prism with speed adjustable and variable direction
2meter to infinite electronic focus
15° Projection beam angle
Improved optics and flat beam field
Electronic linear IRIS
0-100% linear dimmer with 1-18times/sec high speed ecetronice strobe
LED shutter with variable speed
16 DMX channels, Other DMX modes available, 3pin DMX connectors
DMX512, master-slave and sound activated controllable or auto operation(8built-in programs)
Blue background LCD display
45 degrees max ambient temperature;
IP20 protection rating, 55dB at 3dB rating;
Dimensions: 203x300x437mm Packing dimensions: 490x370x375mm
N. W: 12KGS G. W: 15KGS
