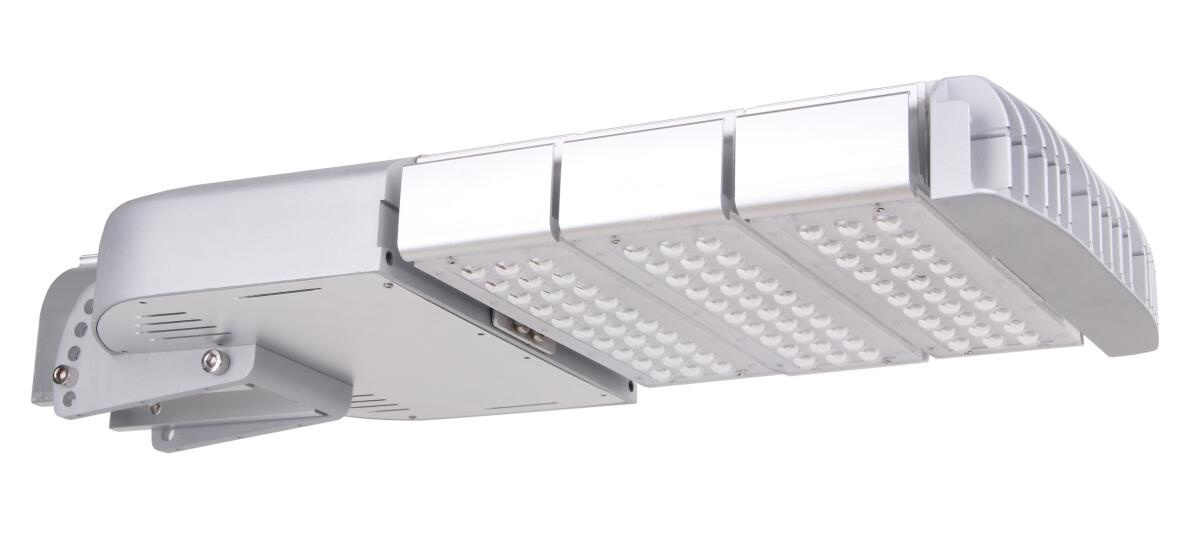

90W High Power LED Street Light

Item: PL-ST90W 3 Years warranty, 9900lm, bridgelux chip

Pecification:
Power: 90W
Material: High quality Aluminum
Size: 581*280*70mm
Working voltage: AC85-265V
CCT: WW, NW, CW
Lifetime: >50000hours
Ra: >80
Power Factor: >95%
Luminaire Efficiency: >90%
Luminous flux: 9000-9900lm
Total Harmonic Distortion: < 9%
Workign temperature: -40~60 Centigrade
Body temperature: <65° C
LEDs: Epistar/Bridgelux chip
Light Distribution: Symmetrical type/ Circular flare;
Light Design: LED+ Reflector Secondly Light Distribution
GW: 7kg
Warranty: 3years
Certification: CE&ROHS

Feature:
1. High efficiency imported Bridgelux led chip as light source Luminous efficiency: 110-120LM / W;
2. Long lifespan: 50, 000hrs, 25 times more than normal energy-saving lamps, Energy saving up to 70-90%;
3. Great heat dissipation design of integration of heat sink and housing.
4. No hot-radioactive, no mercury, no sodium, no UV radiation and other elements harmful to human health;
5. Beneficial to the environment: LED light for all-solid-body impact resistance is not easy broken, waste recycling, pollution-free can be called the "Green Color illumination light source;
6. Adapt to the environment strong: In the -40 -80 ° C, humidity ≤ 65% of the environment.
7. Realistic lighting effect without light distortion.
8. New high efficency constant current driver. Wide range of input voltage.

Advantage:
1. LED street light through various rigorous testing process to make sure the quality of each led street light.
2. Applied with high quadric optics non-imaging lens to ensure luminaries' efficiency over 95%.
3. Inner high efficiency(95%)heat protection system, with the latest high efficiency and constant currency driver, making the products can work under unstable voltage.
3. Could be equipped with solar power system. DC12V/24V/36V etc.
4. Light body adopt high-pressure cast aluminum, It has some advantage of impact resistance, corrosion resistance and so on.
5. Use of special materials with high thermal conductivity, with special design to increase the area of heat! Ensures air exchange, good cooling effect.
6. Professional circuit design, each LED can work separately, avoid the influence caused by a broken single LED.

Application:
1. Important for urban roads, quick way, highway.
2. School, square, garden, Residential area etc.
3. Solar, wind street light.

Model No.	PL-ST90W
Power	90W
Luminous flux	9000-9900lm
Power factor	≥0.98
Total hamornical distortion	≤9%
Power efficiency	≥91%
Illuminance  Uniformity	0.4
Color Rendering Index	WW:Ra≥68; PW/CW:Ra≥75
Beam angle	120 degrees
Working voltage	DC30-36V
Input voltage	AC85V-265V
Frequency range	50Hz--60Hz
Junction Temperature	≤80°C
Working Temperature	-40°C~+55°C
IP Rate	IP65
LED Working life-span	≥50000H
Certificate	CE,RoHS
Packing dimension
Net weight/Gross weight	7kg
