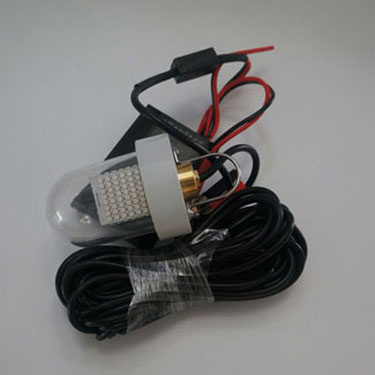

90w Electronic Fish Lamp LED Underwater Lure Light Fish Gathering Lamp Specifications:
Model No. | LF-FSL-90w |
LED Power | 90W |
Luminous Efficiency | White 100lm/w & Green: 75lm/w; Blue: 20 lm/w |
Luminous Flux | White: 8550lm Green: 8100lm |
Input Voltage | DC12-24V |
Power Factor | >0.95 |
THD | <15% |
Operating Temperature | -30°C~50°C |
Storage Temperature | -30°C~65°C |
Color Rendering Index | >80 |
Light Distribution Curve | Round Optical Spot |
Lighting Angle | 360 degree |
Color Temperature | Green: 510-570nm; Blue: 380-495nm; White: 3,000-10,000K |
IP Rating | IP68 |
Product Size(Φ*L) (mm) | 80*140 |
N.W (g) | 1900 |
90w Electronic Fish Lamp LED Underwater Lure Light Fish Gathering Lamp Instructions:
Put the light into the net underwater, then light it up.
Connection and notes:
1. 8W-90W LED fishing lights are low input voltage only with DC12-24V. Usually connect with battery.
For high input voltage, please use transformers to down to 12V-24V
2. The red clip should be connected to the anode, the black one connected to the cathode. (see below)
3. LED fishing light only use in water.
4. Plase keep the lamp in water a few minutes after power off, so that the heat dissipated. And the lamp
life will be longer

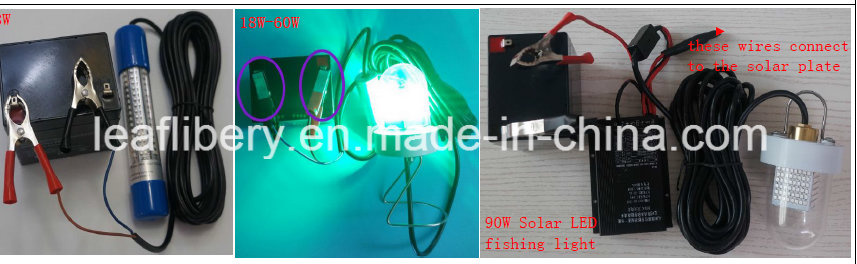

5. 90W solar LED fishing light is able to powered by battery as well as solar plate. Alligator clips is for
battery and the 2 pcs wires is for solar plate. Do not connect the wires with battery otherwise the
driver will burn out.

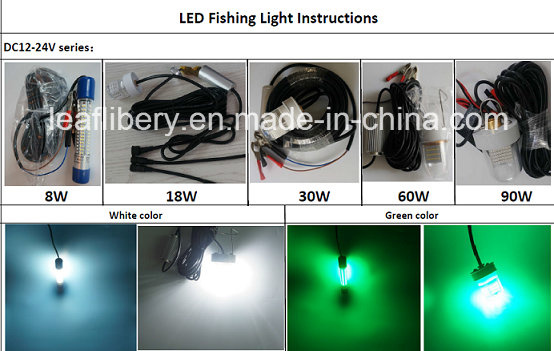

90w Electronic Fish Lamp LED Underwater Lure Light Fish Gathering Lamp Details :
1. 12V underwater lights attract different fish and other species.
2. 1000,000 Hours of continuous use
3. 5 Sided LED Fishing Light (360 degree view)
4. Can be used both in fresh water and salty water.
5. SMD Super Bright LED Lights, >100 lumens brightness
6. IP68 waterproof design for underwater fishing
7. Underwater and good Fishing Light for catching baits and squids.
8. Heavy Duty 6M Power Cord with battery clips.
9. 11Watts, 0.9 amp draw, 1080 lumens brightness, ultra-low battery consumption (runs 8 X Longer than halogen)
90w Electronic Fish Lamp LED Underwater Lure Light Fish Gathering Lamp Application

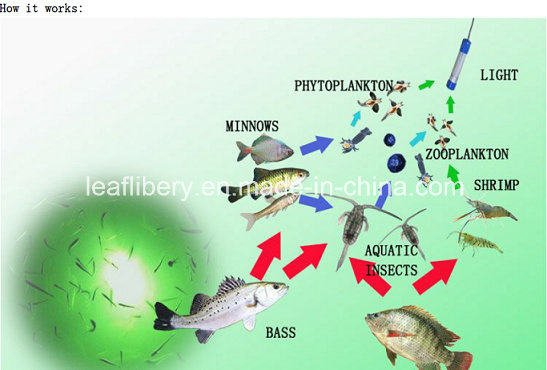

Fishery: to promote the hatchery and growth of the fish
Fishing: installed on the boat to attract the fishes when fishing in the sea
We deal with High Powered LED Fishing Lights , lighting Gathering fish , fish Gathering light , Fishing With our Green ,blue Lights, fishing gear and fishing equipment90w Electronic Fish Lamp LED Underwater Lure Light Fish Gathering Lamp keywords: led fishing light, LED fish light, fishing light, fish light, fishing tackle, fishing lamp, camping light, led fish lamp, led light, led lighting, led lamp, flashlight, led torch, led flashlight, led, underwater light, led underwater light, underboat light, boat light, led boat light LED Advantages Include:
Long-lasting - LED bulbs lastup to 10 times as long as compact fluorescent lights, and far longer thantypical incandescent light bulbs you are use to using.
Durable - Since LEDs donot have a filament, they are not damaged under circumstances when a regularincandescent bulb would be broken. Because they are solid, LED bulbs hold upwell to jarring and bumping.
More Efficient - LED light bulbsuse only 6-36 watts of electricity(1/3rd to 1/30th of Incandescent or CFL).
