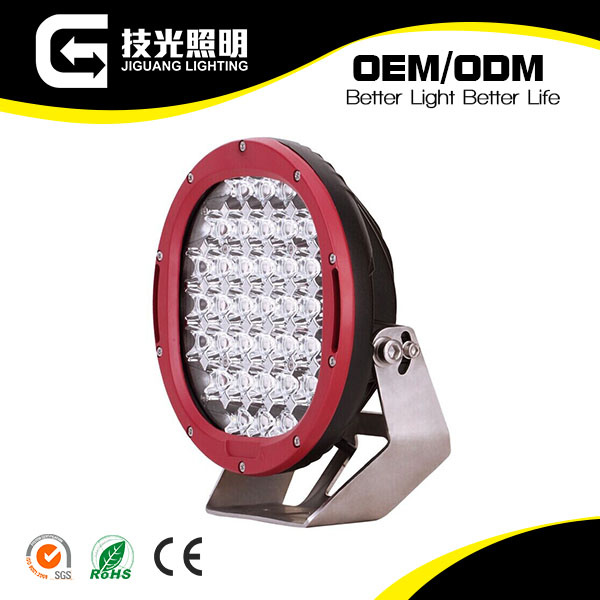

9" high power led work light 185 watt led driving light for offroad
Product Description:
| Model | JG-9185 |
| Power | 185W |
| Input Volt DC | 9-32V DC |
| Size | 9 inch |
| LED chip | 37pcs*5w high intensity USA CREE LEDs |
| Lumens | 15000LM |
| Colour Temperature | 6000K |
| Lens | PMMA |
| Body | Diecast aluminum housing |
| IP rating | IP67 |
| Life time | 50000 hours |
| Mounting Bracket | Alu firm bracket |
| Beam | Flood beam ,Spot beam |
| Housing color | Red and Black |
| Warranty |
1 years |
Product Features:
LED Power:185W (37 pcs of 5W Cree LED)
Rated operating voltage:9-32V
Waterproof rate: IP 68
Colour Temperature:6500K
Housing:ADS12 die-casting aluminum housing
Lens:PMMA Transparent Anti-Glare Lens
Shape:Round
Light Angle:30° (SPOT BEAM)
Life Span:over 50000 hours
Dimensions:9 inch
Current:11.5A@9-32V
Theoretical Lumens Output:16680LM
Operating Lumens Output:15000 LM
Operation temperature:-40°C ~ 85°C
Size:223x90x285mm
TIPS:
.Box includes X 2 : 1x LED Spotlight, 1x Clear Protective Cover, 1x Spreader Protective Cover, 1x Connector Cable, 1x Mounting Hardware
.These rugged and stylish LED driving lights produce an intense broad spot beam that illuminates your entire forward viewing area. The appearance of objects in the smooth white beam makes them appear naturally as they would in daylight. This increases safety and reduces strain on your eyes.
.WARNING: This light may have a high current draw at low voltage, please ensure your wiring is suitable.
CONSTRUCTION
The pressed aluminum cast housing provides a strong case for the lighting components whilst also acting as a cooler via the rear fins. The premium quality PMMA lens ensures that the light is robust and protected against intrusion.
LEDs
37 x 5W CREE XP-G LEDs optimize high lumen directional lighting to offer 15,000 lumens of extremely bright light at a colour temperature of 6500K - cool white.
WATERPROOF AND DUSTPROOF
Each light is uniquely sealed to achieve an IP68 rating, ensuring that they are completely dust tight and are suitable for immersion under water up to 3 metres deep.
PROTECTIVE COVERS
Each light is supplied with both a clear protective cover and a flood light cover so you can easily set your lights to suit your application. The injected molded covers simply click on to the front of the light and provide maximum protection from impact.
Services and transport:
- Warranty: product warranty for one year
- OEM Service Offered, Design Service Offered, Buyer Label
-OEM Experience: 4 Years
- Price/Payment: T/T, Western Union ,Paypal
- Shipping: by sea or air
- Delivery time: 5-20 days
Application:
1. Off-Road vehicles: ATV, SUV, UTV, truck, Fork lift, train, boat, bus, and tanks
2. Engineering vehicles: Excavator, dozer, road roller, bulldozer, crane and mining truck etc.
3. Specialized vehicles: Fire engine, police car, rescue vehicle, communication vehicle, military command vehicle etc.
Why choose us?
1.OEM Experiences above 4 Years In LED Automotive Lighting Industry
2.Factory Manufacturing Enterprise Provide with you Competitive Price and superior quality
3. Have stable supply chain which can guarantee our product quality and prompt delivery
4.Trial Order small quantity for retail and wholesale are accepted
5. Fully equipped with advanced machines and Experience workers
6.OEM Service Offered, Design Service Offered, Buyer Label
7.Sincere Service!(Effective pre-sale communication+Good after sale service )
8.Jiguang Lighting Co.,Ltd and our products have already pass a series of attestations including ISO9001,ISO14000,CCC,CE,EMARK,SAE,ECE,EMI certification.
