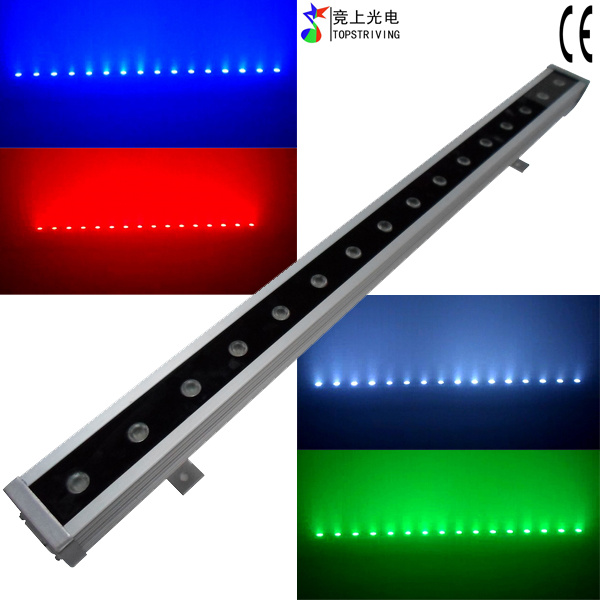

LED BAR RGBW 16
TECHNICAL SPECIFICATIONS:
Power supply: 90-240V 50/60Hz
Power consume: MAX. 130W
IP 65 water proof
Equipped with 16 PCS of 8W high MCD RGBW LEDs
100, 000 hours of LED life
Beam angle: 45°
DMX-512-connection: 3-pin XLR
Power connection: 3-pin XLR
Dimensions: 1100*78*98mm
Weight: 4.0kgs
DETAILED PARAMETERS:
1. IDEAL FOR BARS, DISCO HALLS, SMALL SHOWS,
CABARETS, MUSIC SHOPS, MOBILE DJs, etc.
2. AC 90-240V 60/50Hz
3. IP 65, POWER: 150W, FOUR DIGITAL LED DISPLAY
4. Die cast alu. Housing with 16*four in one RGBW 8W high MCD LEDs
5. LONG LIFE 100, 000 HOURS, AUTO MODE AND MASTER/SLAVE,
6. DMX 512 PROTOCOL FUNCTIONING AS FLASH, DIMMING,
SINGLE COLOR, COLOR 8. MACROS, MIXING COLORS, COLOR FADES, etc.
8.8/12/20/36/68 DMX channels
9. LOW POWER CONSUMPTION, LOW HEAT, LOW MAINTENANCE AND BRIGHT OUTPUT
10. ITEM DIMENSION: 100*7*7CM
11. ITEM WEIGHT: 4KGS
OUR SERVICE:
1. Your inquiry related to our products or prices will be replies in 24 hours.
2. OEM&ODM, any your customized lightings we can help you to design And put into product without any charges
3. Shipping method: DHL, UPS, FedEx, TNT door to door service, by sea, by air, etc
4. Promised After-sales Service
5. Definitely high brightness with good material inside
6. Customised LED Quantity Design
DMX CONTROLLING |
|
|
|
|
DMX MODE |
d-0 |
d-1 |
d-2 |
d-3 |
d-4 |
d-5 |
|
SINGLE COLOR SECTIONS |
16 |
1 |
2 |
4 |
8 |
16 |
|
SINGLE COLOR LED QUANTITY PER SECTION |
1 |
16 |
8 |
4 |
2 |
1 |
|
CONTROL CHANNELS |
64 |
8 |
12 |
20 |
36 |
68 |
|
|
CH1=R1 |
CH1=MASTER DIMMER |
CH1=MASTER DIMMER |
CH1=MASTER DIMMER |
CH1=MASTER DIMMER |
CH1=MASTER DIMMER |
|
CH2=G1 |
CH2=STROBE |
CH2=STROBE |
CH2=STROBE |
CH2=STROBE |
CH2=STROBE |
|
CH3:B1 |
CH3:MODES/ PRESET SHOWS |
CH3:MODES/ PRESET SHOWS |
CH3:MODES/ PRESET SHOWS |
CH3:MODES/ PRESET SHOWS |
CH3:MODES/ PRESET SHOWS |
|
CH4=W1 |
CH4=RUNNING SPEEDS |
CH4=RUNNING SPEEDS |
CH4=RUNNING SPEEDS |
CH4=RUNNING SPEEDS |
CH4=RUNNING SPEEDS |
|
CH5=R2 |
CH5=R |
CH5=R1 |
CH5=R1 |
CH5=R1 |
CH5=R1 |
|
CH6=G2 |
CH6=G |
CH6=G1 |
CH6=G1 |
CH6=G1 |
CH6=G1 |
|
CH7=B3 |
CH7=B |
CH7=B1 |
CH7=B1 |
CH7=B1 |
CH7=B1 |
|
CH8=W4 |
CH8=W |
CH8=W1 |
CH8=W1 |
CH8=W1 |
CH8=W1 |
|
*** |
|
CH9=R2 |
CH9=R2 |
*** |
*** |
|
*** |
|
CH10=G2 |
CH10=G2 |
*** |
*** |
|
*** |
|
CH11=B2 |
CH11=B2 |
*** |
*** |
|
*** |
|
CH12=W2 |
CH12=W2 |
*** |
*** |
|
*** |
|
|
*** |
*** |
*** |
|
*** |
|
|
*** |
*** |
*** |
|
*** |
|
|
*** |
*** |
*** |
|
*** |
|
|
*** |
**** |
**** |
|
CH61=R16 |
|
|
CH17=R4 |
CH33=R8 |
CH65=R16 |
|
CH62=G16 |
|
|
CH18=G4 |
CH34=G8 |
CH66=B16 |
|
CH63=B16 |
|
|
CH19=B4 |
CH35=B8 |
CH67=G16 |
|
CH64=W16 |
|
|
CH20=W4 |
CH36=W8 |
CH68=W16 |
