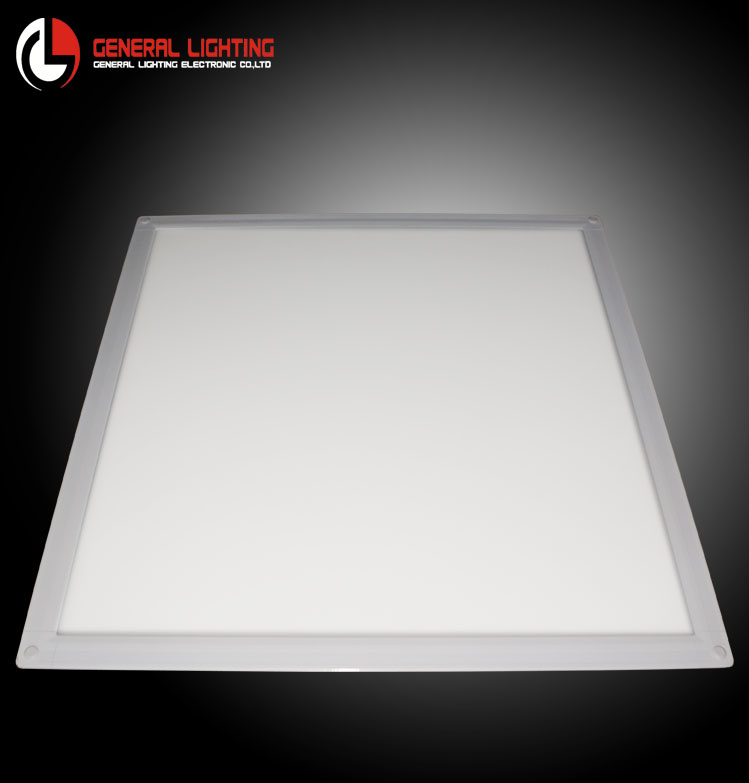

8mm Ultra-Thin LED Light Panel/LED Panel Light
Features of LED Light Panel
Part No.: GL-PL-E600-PW/NW/WW LED Panel
Dimension mm: 605*605*8mm
LED type: SMD2835
LED Q'ty(PCS): 180pcs
Material: Aluminium + PMMA
Input voltage: 28-36V ~ 1.1A
Working temperature: -10° C~40° C
Installation method: Embedded. Hanging
IP Rate: Ip41
3.0Kg () N. W. ± 0.1Kg
Technical Parameter of LED Light
CCT.: 2900 --6500K
Flux. (± 10%): 3300lm
LED Power: 35W
Light Efficiency()± 10%: 80lm/W
CRI: Ra>70
Lux. At 2Meters(± 10%): 210lx
Dimmable: Yes
Lighting Angle: 120°
P F: >0.9
Q'ty for series connection and parallel connect ion: 10S 9P * 2
Beam Way: Beam at two sides
LED Light panel Series
1. Super bright LED as lighting sources;
2. TUV CE certificated;
3. Input voltage: 28-36V;
4. Imported light diffusion material, mercury and lead free;
5. High lumen output, high efficiency energy saving up to 60%;
6. Excellent heat dissipation structure long lifespan, normal use can reach over 30, 000hours;
7. Lead free, eco-friendly, conform to the requirements of ROHS
LED Light Panel
|
NO |
Part No |
CCT |
Flux.(±10%) |
Input Power |
Light Efficiency
(±10%) |
CRI |
Lux.at 2Meters
(±10%) |
dimmable |
Lighting
Angle |
PF |
|
1 |
GLM-ACAA-X |
3000K-4000K-
6000K |
1300lm |
18W |
75 lm/W |
Ra>80 |
90lx |
yes |
120° |
>0.9 |
|
2 |
GLM-ACAB-X |
1900lm |
24W |
80 lm/W |
Ra>80 |
105lx |
yes |
120° |
>0.9 |
|
3 |
GLM-ACAH-X |
3200lm |
40W |
80 lm/W |
Ra>80 |
240lx |
yes |
120° |
>0.9 |
|
4 |
GLM-ACAC-X |
3200lm |
40W |
80 lm/W |
Ra>80 |
210lx |
yes |
120° |
>0.9 |
General Lighting Electronic Co., Ltd, founded in 2008, is a comprehensive and high-tech enterprise for LED lighting. With three subsidiaries, GL headquarters lies in China South City Global building of Shenzhen, and has two big plants in Shenzhen and Dong guan city, totally 800 employees and 20, 000 plant area.
As a lead enterprise, be professional in the R& D, manufacturing and lighting control solution for LED lighting products, GL does its best to serve the advanced-tech and excellent quality LED lighting products to its valued clients all round the world. GL has developed the commercial lighting, civilian lighting and intelligent residential lighting control system so far, which includes 8 items, 20 series and more than one hundred of products to meet many different clients' requirements. With the fast development, GL pays much attention to technology creation, obtains more than 20 technical patents, and has applied to be the National High-tech Enterprise and Shenzhen High-tech Enterprise. GL lighting products has got GS, TUV, UL, ETL certificates and also successfully get through the ISO9001 Quality Management System, BSCI Factory Inspection Audit.
Today, in the competitive market, GL cooperates with the well-known companies at home and abroad to explore the markets. Since GL's establishment, its sales figures rise up with 100% each year.
Be professional; To be dedicated; By Innovation; Try to insist.
In the near future, GL will be an excellent pioneer to explore and create the new LED lighting market for the transformation from " Made in China" to "China Creation".
