Product Features

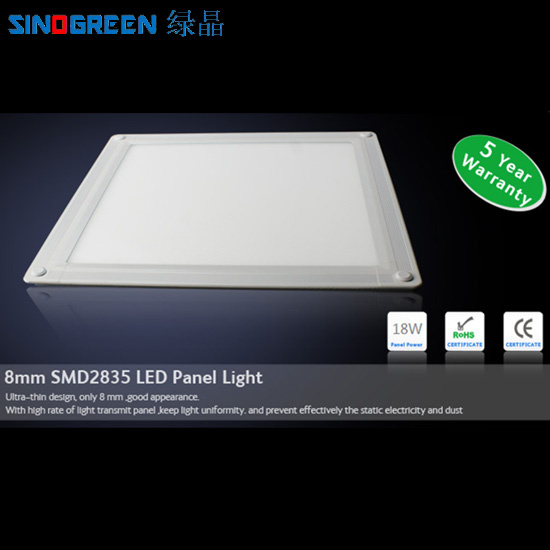

300X300X8mm LED Panel Light
Super bright 2835LED as lighting sources, aluminium frame with good heat conduction.
Instant start, no flickering, no humming. Input voltage 28-36V ~ 1.1A(LED Panel Light with constant current driver), No electric wave, Imported light diffusion material, mercury and lead free.
High lumen output, high efficiency, energy saving up to 60%, Eco-friendly, energy-saving and high luminous efficacy. Excellent heat dissipation structure, long lifespan, normal use can reach over 30, 000hours.
TUV CE certificated, lead free, eco-friendly, conform to the requirements of RoHS.
NOTE
1.300X300X8mm LED Panel Light When installation, try to avoid the minefields, strong magnetic field and high-voltage area;
2. Ensure a solid connection correctly in order to avoid short-circurt damage to components and trigger fires;
3. Installed in a well-ventilated place to ensure appropriate environmental temperature;
4. Please check local voltage in accordance with the product requirements before using the product;
5. To prohibit the live wiring for LED panel light, check to confirm the wiring correct, confirm no short-circuit and then power on;
6. In case of failures. Do not maintain it in private.
Applications
LED panel lights Application: Widely used in offices, public spaces, hotels, bars, corridor, Shang Dynasty, toilets and Western restaurants, museums, exhibition halls and other projects
8mm LED Panel Light 18W (300*300*8mm) |
Product No. | LJ-PL8-18W-3030 | Size | 300*300*8mm |
Material | alloy + PMMA | LED Light Source | SMD2835/88pcs |
Input Voltage | AC100V-AC240V | Working Frequency | 50-60Hz |
Output Power | 18W | Power Factor | >95 |
LED Luminous Flux | 1500-1600lm | Ra | 80 |
LED Llife | 50000H | Beam Angle | 120° |
LED Color Temperature | 2900-6500K | Ingress Protection Rating | IP41 |
THD | <15% |
Working temperature | -10Degrees Centigrade~ +40Degrees Centigrade |
Warranty | 5 Years |
Certification | CE\TUV |
Hangzhou Sinogreen Optoelectronics Co., Ltd.Is located in Hangzhou, the beautiful West Lake, which is a research and development production and sales-oriented manufacturing enterprise.Specializing in industrial lighting, commercial lighting, environmental LED lighting design, the company has passed ISO9001:2000 quality management system certification.
The company has an independent R & D centers and R & D team, and is equipped with advanced testing equipments and production equipments.Besides company's own R & D team, the company has established a long-term and friendly strategic partnership and production base with China Tsinghua University, Peking University, Zhejiang University, and China Jiliang University, which has laid a solid foundation for company's products development and technoligical upgrading.
In the application areas, the company has developed LED street lighting, LED commercial lighting, LED lighting, LED moving lighting, wind and solar LED street lighting and other LED products, and has independent intellectual property rights in many fields.So far, the company's products have got 3C, CE, RoHS, UL, FCC, SASO and other related certification.
Our products sell well at home and abroad, and customers are from in nearly 50 countries on five continents and regions.The company has agencies in each provinces and branch companies more than ten provinces, with improved marketing channels and service network.
Leading technology, excellent products, solid quality, and integrity service is our requirements and responsibilities for each product.We will try our best to make contribution to the human's promotion of new energy and energy conservation.
