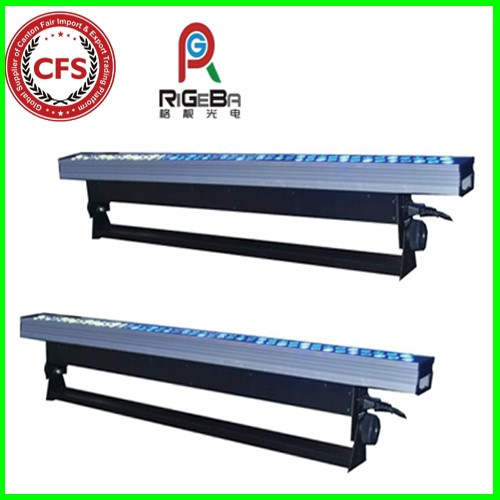

84X3w RGBW High Power Linear Light
Price: |
Negotiable/Piece |
Trade Terms: |
EXW |
Min Order: |
4/Piece |
Pay Type: |
T/T,Western Union |
84x3w RGBW High Power Linear Light
Ø Unlimited programming effects
Ø Special lighting effect
Ø 32-bit colour (16.7 million color combinations)
Ø Modular & highly portable
Ø No technical experience required
Ø Quick and easy installation
Ø More affordable than any existing solutions
Ø Sealed for long, durable lifetime
Ø No bulbs to replace
Ø Indoor use in well temperate rooms
Channel |
Value |
Function |
CH1 |
0 |
Autorun mode |
1--128 |
Overall mode |
129--255 |
Three section mode |
CH2 |
0-229 |
Ten kind of autorun (Autorun mode) |
230-255 |
Two kind of sound control (Autorun mode)
(230-240 & 241-255) |
0-128 |
Dimmer for all color (Overall and three section mode) |
129-255 |
Strobe (Overall and three section mode) |
CH3 |
0--255 |
Speed of autorun (Autorun mode) |
0--255 |
All red dimmer(Overall mode) |
0-255 |
Red of first section (Three section mode) |
CH4 |
0-255 |
All green dimmer(Overall mode) |
0-255 |
Green of first section (Three section mode) |
CH5 |
0-255 |
All blue dimmer (Overall mode) |
0-255 |
Blue of first section (Three section mode) |
CH6 |
0-255 |
All white dimmer (Overall mode) |
0-255 |
White of first section (Three section mode) |
CH7 |
0-255 |
Strobe speed (Overall mode) |
0-255 |
Red of second section (Three section mode) |
CH8 |
0-255 |
Green of second section (Three section mode) |
CH9 |
0-255 |
Blue of second section (Three section mode) |
CH10 |
0-255 |
White of second section (Three section mode) |
CH11 |
0-255 |
Red of third section (Three section mode) |
CH12 |
0-255 |
Green of third section (Three section mode) |
CH13 |
0-255 |
Blue of third section (Three section mode) |
CH14 |
0-255 |
White of third section (Three section mode) |
CH15 |
0-255 |
Strobe speed (Three section mode)
|
Prod Model: |
RG-LW17 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Lighting Source: |
1W/3W × 84PCS (R: 21, G: 21, B: 21, W: 21) |
Protocol: |
Usitt DMX512 |
Data In / Out: |
Locking 3 Pin XLR |
Net Weight: |
4.8 Kg |
Item No.: |
Rg-Lw17 |
Name: |
LED Bar 84W 1W/3W RGBW |
Lens Angle: |
25° |
Power: |
AC100 - 240V, 50 - 60Hz |
Maximum Power: |
90W/260W |
DMX Channel: |
17 |
IP Rating: |
IP33 |
Certification: |
CE |
Beam Angle: |
45?? |
Lifespan: |
50000 hours |
Electric Current Type: |
AC |
Input Voltage: |
110 - 240V |
Emitting Color: |
Full Range |
Diffuser: |
Die-Casting Aluminum |
