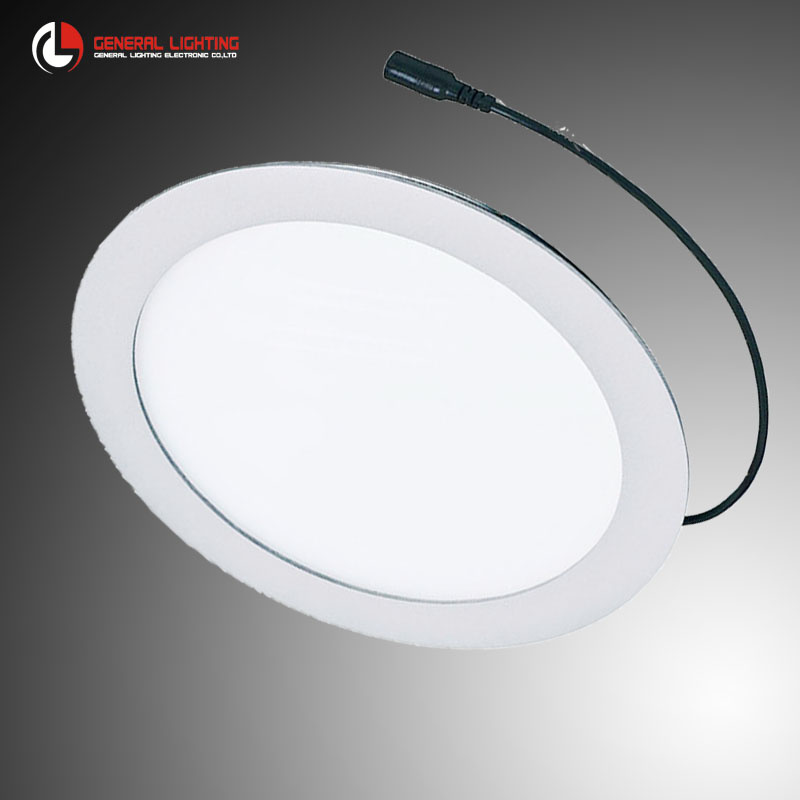

84PCS SMD2835 18W LED Round Panel
Features of LED round panel
Holecutting Size(E): 280mm
Installation Way: Embedded
Working Temperature...-20 C -40 C
Light Angle: 120°
Lifespan: 30, 000H
IP Rate: IP41
Input Voltage: 100-240VAC
Power(± 5%): 18.0W
Working Voltage( DC): 720mA
LED Qty. / Type: 84PCS/ 2835
CCT: 2800- 7500K
CR I: Ra>80
Luminous Flux: 1200~1330lm
Illuminance at 1m(± 5%): 260lx
P F: >0.9
II. Application
1. Super bright SMD2835 LED as lighting sources; High efficiency, energy Saving,
Eco- friendly;
2. Aluminium alloy frame with high- thermal conductivity, simple and nice;
3. Integrated heat dispersion structure, low lumens depreciation and long lifespan;
4. External constant current driver, universal available;
5. Easy to install.
1. Hotels;
2. Meeting rooms;
3. Factories and Offices;
4. Commercial lightings;
5. Residential or public facilities.
III. Drawing of Products
Tel.:
Luminous efficacy >80lm/W;
Light source: Low power SMD LEDs (placed in the edge of the plate)
Quick response when power on, no noise, no UV, no strobe light;
Adpot own-designed LED driver with high power factort;
Low luminous decay, Quick response when power on, long lifespan, no noise, no UV, no strobe light, no pollution;
Lightguide material: Al-alloy shell, High thermal conductivity
Color: Single color, bi-colour, RGB; (various colors available)
Input Voltage: AC100V~240V available
Color temperature: 5500K-7000K( Optional, according to your requirement )
Ambient temperature: -20~40º C
Lifetime: ≥ 100, 000hrs
Beam angle: 90°
Installation: Convenient and efficient, push-in type.
Certificate: CE, RoHS & ETL approved, with 2 years quality warranty.
Model |
Siaze |
Lume |
Ra |
Power |
A |
B |
C |
D |
GL-T3W05 |
110mm |
95mm |
62mm |
66.5mm |
320-360lm |
>75 |
6W |
GL-T4W05 |
122mm |
97mm |
62mm |
82mm |
420-500lm |
8.5W |
GL-T5W05 |
153mm |
107mm |
76mm |
104mm |
780-900lm |
13.5W |
GL-T6W05 |
185mm |
123mm |
94.5mm |
140mm |
1000-1150lm |
16.5W |
GL-T7W05 |
210mm |
128mm |
107.5mm |
154mm |
1200-1400lm |
19.5W |
GL-T8W05 |
237mm |
133mm |
114.5mm |
187mm |
1450-1600lm |
19.5W |
