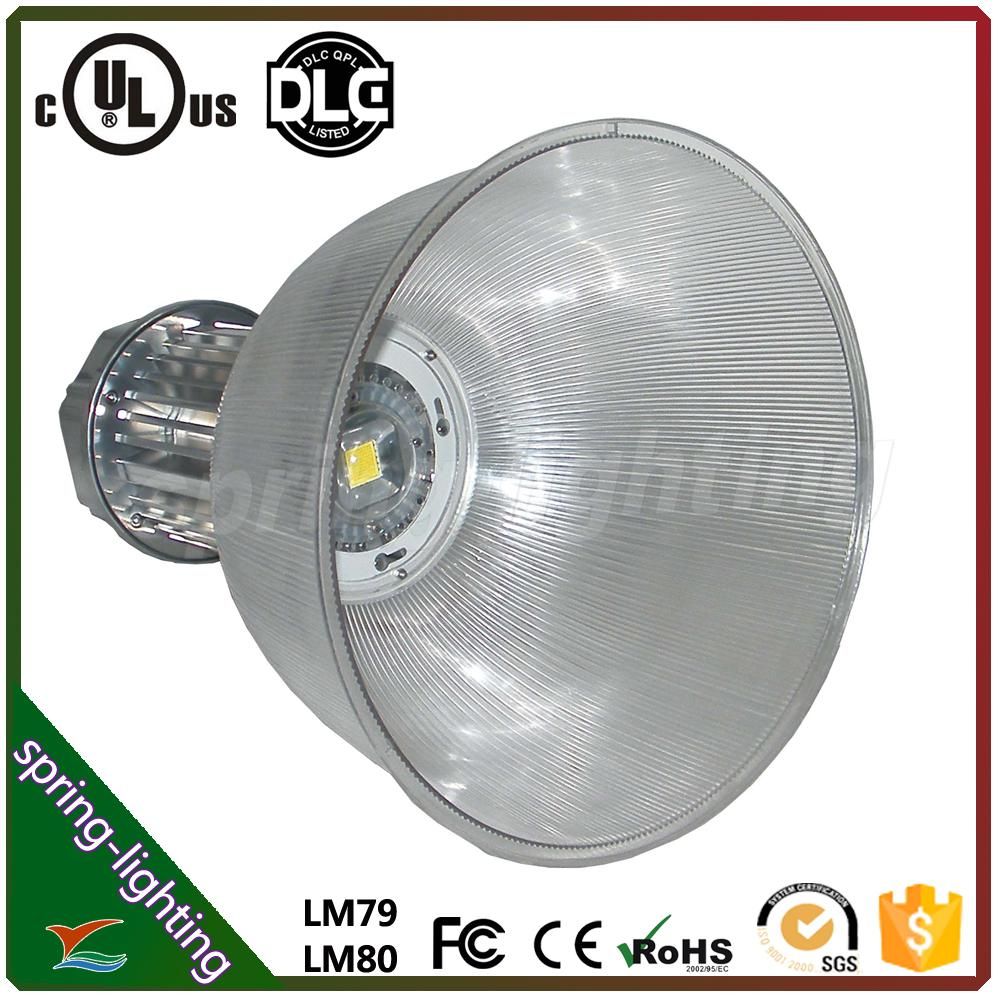

UL,cUL,DLC led high bay light,80W,long lifespan>50000 hours,dimmable,PC reflector,90 degree,
dustproof,high brightness,5 years warranty
Products Parameters:
Products Name |
dimmable led high bay light |
ITEM |
SPL-HBL60WBS |
SPL-HBL80WBS |
SPL-HBL100WBS |
SPL-HBL150WBS |
SPL-HBL200WBS |
SPL-HBL300WBS |
Input Voltage Range |
90-265Vac or 90-305Vac or DC12/24V |
Frequency Range |
47Hz~63Hz |
Power Factor |
0.95 |
LED Type |
Bridge lux 45mil Chip |
LED Consumption |
60W |
80W |
100W |
150W |
200W |
300W |
Lamp Consumption |
60W-62W |
80W-82W |
100W-105W |
150W-155W |
200W-205W |
300W-306W |
Led Luminous Efficiency |
>90-100lm/W |
Led Initial Flux |
>5400lm |
>7200lm |
>9000lm |
>13500lm |
>18000lm |
>27000lm |
Color Temperature |
Detail information refer to above LED parameters table |
Color Rendering Index |
Ra>72(Can be customized>80 . >90) |
Beam angle |
45° / 60° / 90° / 120° / PC45° |
LED Junction Temperature |
75ºC |
Working Temperature |
-35ºC~ +50ºC |
Working Life-span |
>40000Hours |
Power line |
VDE H05RNF 3G1.0mm or UL SJTW 3G18AWG |
Features for dimmable led high bay light :
1.Bridgelux LED Chip, high luminous efficiency- 95~110lm/w and long lifespan for dimmable led high bay light ;
2.MEANWELL or other High efficiency LED Driver, wider input voltage range: AC100-277V for dimmable led high bay light ;
3.Stretched aluminum with fins cooling design,better heat dissipation,LED Tj < 85ºC for dimmable led high bay light ;
4.Excellent lampshade design, greatly improved the lighting utilization and evenness for dimmable led high bay light.
