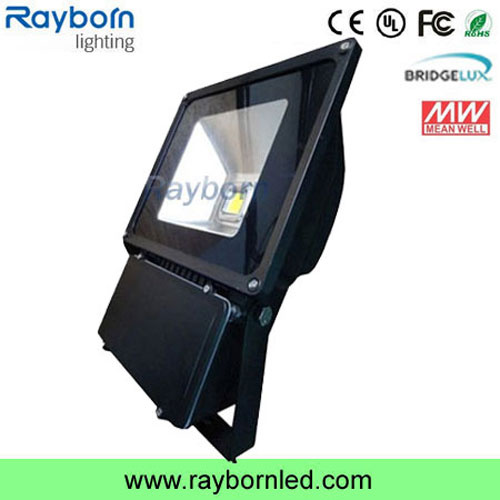

LED Floodlight/Tunnel Light (10-150w)
Item No.: RB-FLL-80W1-A
LED Chip: Bridgelux
Input Voltage: AC 85~265V
LED Power: 80W *1PCS
LED Luminous Flux Warm White, White
Viewing Angle: 120 degree
Color Temperature Warm White 2700K~3500K
Pure White 4000K~5500K, Cool White 6000K~7000K
Luminous Flux: 5450LM (warm white), 5530LM(pure white), 5500LM(cool white)
Color Rendering Index Warm White Ra≥ 68; PW, CW Ra≥ 75
IP Grade: IP65
Body Size: 285*360mm
Working Life-span: 50000 H
The color of the lamp shell Silver
Certificate CE & RoHS
| 80W LED Floodlight Main Technical Parameters |
| Item No.: | RB-FLL-80W1 |
| Input Voltage: | AC 85-265V |
| Freqency Range: | 50Hz~60Hz |
| Power Factor: | >0.95 |
| Power Efficiency: | >90% |
| LED Power | 80W |
| LED QTY: | 1pc*80W |
| LED Working Voltage: | DC 30~36V |
| System Consumption: | 89W |
| LED Luminous Flux | Warm White | 6650LM |
| Nature White | 6850LM |
| Pure White | 6900LM |
| Viewing Angle: | 110 degree |
| Illuminance Uniformity: | >0.6 |
| Color Temperature | Warm White | 3000K~3500K |
| Pure White | 4000K~4500K |
| Cool White | 6000K~6500K |
| Color Rendering Index | Ra>78 |
|
| Light Distribution: | LED points visible |
| Light Design: | LED+ |
| LED Junction Temperature: | ≤115ºC |
| Working Temperature: | -40ºC~50ºC |
| IP Grade: | IP65 |
| Working Life-span: | 50000 H |
| Power Line: | 1.0 m three line |
| Connect Wire | Brown | L |
| Blue | N |
| Yellow / Green | G |
| The color of the lamp shell | Black is available |
| Certificate | CE/ROHS |
| Certificate | 360*288*110mm |
| Net Weight: | 5.9KG |
Features:
LED flood light adopted optical light distribution, that is no glare, no light pollution, highly directional light and more even luminous beam.
1, High bright imported single integrated(COB) LED chip as light source:
Led flood light with good heat dissipation, low light depreciation, pure light color, no double-shadow High intensity, high resistance of shock or vibration etc.
2, Universally wide range voltage(85-265V):
Led flood light advanced constant-current driver be used which can start quickly, be high safety and reliability.
3, Unique heat sink design:
Led flood light perfectly combine with power box, effectively transmit the heat, thereby lowering the body's temperature, ensure the life of LED chip and power driver.
4, Surface treatment:
Led flood light static sprayed leading to better heat-resisting, high weather resistance, corrosion resistant, water proof and dust proof.
5, All the leakage screw material is 304 stainless steel, and frame is hex screws.
6, waterproof and dust proof:
Led floodlight Sealed by reliable silicone rubber, can bear heat above 150 degree, no aging, good sealing of lamp, waterproof and dust proof.
7, Energy saving:
Led floodlight use high power LED and it is equipped with imported high efficient power, save more than 70% energy compare with sodium lamp.
8w Waterproof Floods Lighting Competitive Advantage:
1. CE & RoHS &TUV IP65 approved, Quality Guaranteed
2. Imported original Cree & Bridgelux & Epistar chip, superior light source
3. OEM & ODM welcome, independent R&D ability, patent design.
4. Fast delivery, 3-15 workdays depends on order quantity after payment confirmed
5. Reliable quality & credit, 3 years warranty and 50.000 hours lifespan
FLOOD LIGHT Applications:
Factory, gymnasium, boatyard, billboards, buildings, lawns, landscaping, offices, the site of light project and decorative lighting projects etc.
Our Good Service
1. Your inquirey related to our products or price will be replied within 24 hours
2. All your inquireies will be well explained by our experienced staff
3. OEM&ODM, also provide customized service
4. Distributor ship is available for your unique design and some our current models
5. We will keep secret for customer sale area, design ideas and all other private information
Payment Terms and Delivery Time:
1. T/T 30% deposit and the balance paid completely before the delivery.
2. Lead time for 50~500pcs: 5-7days, 500~1000pcs: 7-15days. Samples 3 working days after getting the payment.
3. Shipment: DHL, UPS, EMS, Fedex, by air or by sea.
FAQ
Q1.What is the main business of Rayborn Lighting ?
A: Rayborn focus on LED home lighting products from 2008 till now. Rayborn is the top
suppliers of led indoor and outdoor lighting fixtures. Especially focus on LED panel light,led
tube light, led downlight and so on. Outdoor lighting focus on led floodlight, led street light,etc.
Q2. What is the warranty of Outdoor LED Lighting?
A : Rayborn outdoor LED Lighting offer 3~5 years warranty depending on different types.
Q3. What is the payment term?
A: For sample order, we can accept T/T, Paypal, West Union, 100% in advance. For bulk
order, 30% deposit in advance by T/T, 70% balance before shipping. For very big order. L/C is negotiable.
Q4. Can I add my logo on the led Lighting label?
A : Yes,our led lighting can print customer's logo on inner and outer carton.
Q5. What kind of certificates Rayborn Got?
A: Rayborn led light got CE,EMC,LVD,ROHS,FCC,C-tik,UL,SAA Certification.
Rayborn Lighting Co., Ltd. is a professional LED manufacturer, focuing on industrial LED Light and commerical LED light research, development, production, sales and service, was in High-end operation and service provider in High power LED. Under the conuntry "saving" policies, we are striving to create environmental protection, energy saving, long life lighting and earned a reputation of being a quality supplier of LED lighting.
We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions, our factory has passed the authentications of ISO9001: 2000, CE, FCC, RoHS, TUV authentication.
With the direction of High power LED light, industrial LED light and commerical LED light, company developed milti-stlye series of LED lighting, including LED Flood light, LED Tunnel Light, LED High Bay light, LED Ceiling light, LED Tube Light, LED Down Light, LED Strip, LED Bulb, LED spot light.
We warmly welcome domestic and overseas agents and wholesaler to join us, to light up a green planet, for a more environmental earth.
