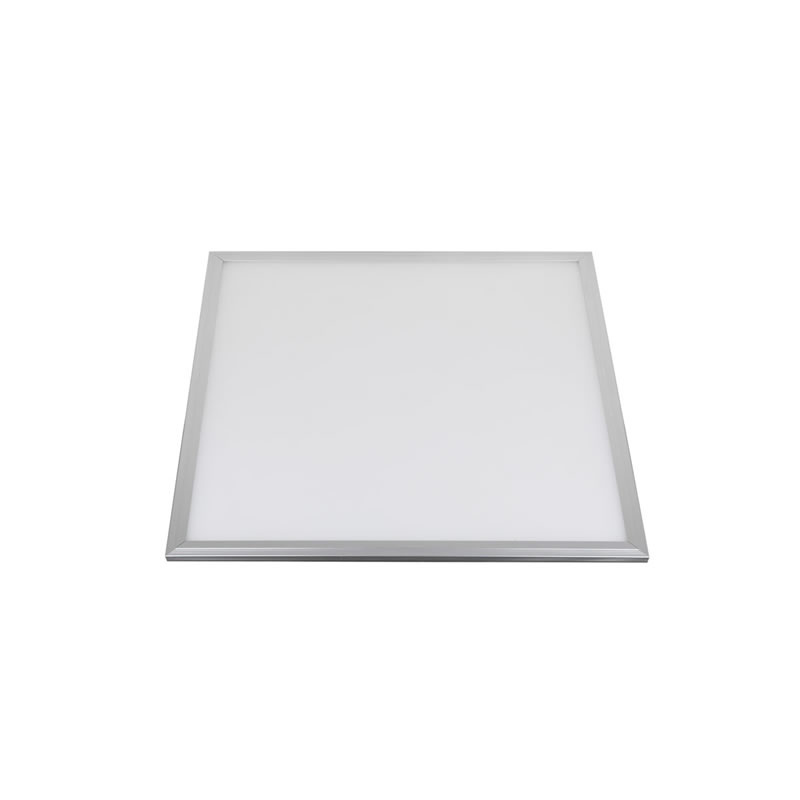

80-240V AC 10w surface mounted led panel light 300X300mm
This 80-240V AC input voltage flat led light panels can be surface mounted or suspended with warm and white color available, which can be with round or square(flat ) shaped
Many SMD2835 LEDS around the frame, the mixed soft light is transmitted from the PMMA panel, we can also offer SMD5630 one, if your need customized design or SMD, welcome to contact us.
This led light panel is with constant current driver, it will be stable to use.
***LED Panel Feature***:
1. Input voltage 110-240VAC with outside Power supply
2. Panel Input voltage 24V DC
3. Full color available
4. Super thin Panel 10.4mm, 4 size: 300X300, 600X300, 1200X300, 600X600mm
5. Dimmerable or change color with Pros Light DC dimmer and Controller
6.2-way mounting- wall mounted and suspension installation
7. Ultra-Efficient LED Lighting(eco-friendly, lower power consumption)
8. Beautiful, Comfortable Light (colors fully revealed)
9. No Hotspots, No Glare
10. UV-protected, safe to use
11. Long Lifespan, usally >10, 0000 hours
12. RA>80
***LED Panel Application***:
Commercial Lighting
Office Lighting
Warehouse Lighting
Supermarket Lighting
***The accessories we can offer is as below***:
/led street light
/led high bay light
/led canopy light
/floodlight/wallwasher/underground
/underwater/downlight/round-square
/flat led panel luminous lamps
Size available is as below:
600x600mm(60x60cm/2ft by 2ft)
30x30cm(300x300mm/1ft x1ft)
2ft x 4 ft(60x120cm)
| Item No. | Size | Color | Voltage | Lumen | Watt |
| PL-P300x300-W | 300x300x10.4mm | white | 24V DC | 642lm | 10w |
| PL-P300x300-M | warm white | 477lm | 10w |
| PL-P300x300-RGB | RGB | / | 10w Max. |
| PL-P600x300-W | 600x300x10.4mm | white | 24V DC | 1512lm | 21w |
| PL-P600x300-M | warm white | 1124lm | 21w |
| PL-P600x300-RGB | RGB | / | 26w Max. |
| PL-P1200x300-W | 1200x300x10.4mm | white | 24V DC | 3319lm | 45w |
| PL-P1200x300-M | warm white | 2418lm | 45w |
| PL-P1200x300-RGB | RGB | / | 52w Max. |
| PL-P600x600-W | 600x600x10.4mm | white | 24V DC | 3319lm | 42w |
| PL-P600x600-M | warm white | 2418lm | 42w |
| PL-P600x600-RGB | RGB | / | 52w Max. |
Pros Light is an established high-tech factory specialized in the research, development, engineering, and marketing of LED based lighting solutions. We have professional engineers always staying at the forefront of LED technology. We are especially well-placed in the field of Power LED thermal management and related lighting solutions.
Our product range:
1. LED Street Light
2. LED Bulb & Spotlight
3. LED Downlight
4. LED Panel
5. LED WallWasher & Floodlights
6. LED Explosion proof Light
7. LED High bay light
8. LED Tube T8
9. OEM & ODM Projects
