Product Specifications

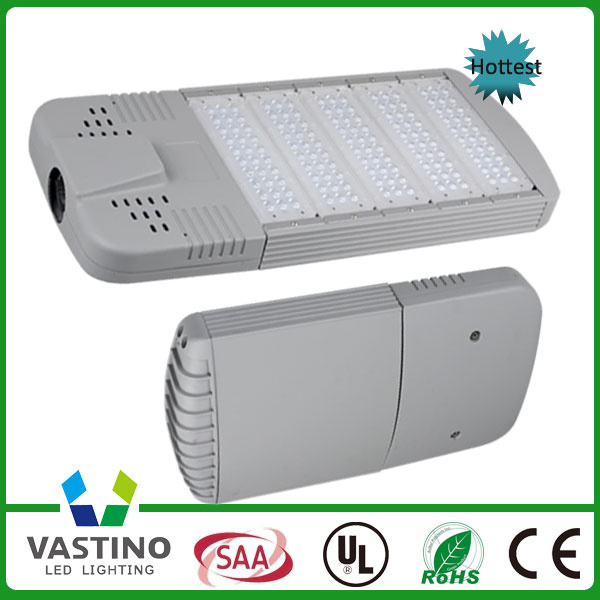

Product Name: 80-200W LED Street Light with 5 years warranty
Product Model
Power | Color Temperature | Model |
80W | 2700-3000K 4000-4500K 6000-6500K | YSST-8025-004 |
100W | YSST-10035-004 |
120W | YSST-12035-004 |
150W | YSST-15045-004 |
180W | YSST-18045-004 |
200W | YSST-20055-004 |
Product description and application:
Ø Efficient SMD technology:imported OSRAM chip package (SMD3030 series), long life, low light failure
Ø Efficient cooling material technology:High thermal cooling aluminum radiator sawtooth structure, larger cooling area, cooling faster.
Ø Low thermal resistance packaging technology:LED light source directly encapsulated to cooling integrated module new LED light source packaging technology,silver with ceramic packaging technology and liquid metal solid crystal packaging technology.
Ø Efficient uniform temperature cooling technology:Modular cooling, independently of each other, if a single module corruption does not affect use.
Ø Radiating shell assembly technology:achieved a plurality of modules assembled together Structure ,flexible replace the required power of traditional lighting .
Ø Through the combination by LED light source module and the heat sink,the main components of the LED lamps with a standardized, universal key technology.
Ø With high efficiency,high bright,long lifespan and good energy saving effect;Mainly used in fast-track, main roads, secondary roads, factory road lighting, public places lighting, garden lighting and other places.
Product Feature:
Ø Efficiency:Used the Meanwell driver,high efficiency,save 60%-80% electricity bill compared with the traditional lamp;
Ø Beam angle:support for 113 degree adjustable,It can be combined with the road width and pole height adjustable lamp head angle;
Ø Led:Use Osram SMD3030 Led source,Cri80,no light pollution,with with high transmittance PC material lens.
Ø Light failure:Single module 48pcs SMD 3030, low current design, lowered LED chip temperature down and extend the life of the light source;
Ø Radiator:a big touch area for Lamps radiator blade structure with air,Accelerate the natural convection of air,Good radiating result.
Ø Light Distribution:rectangular and asymmetric light distribution designSolve the main road LED light distribution puzzles.
Product Specifications
1.Basic parameter
Model | Led | Size (mm) | N.W (kg) | Shell color | Material | IP Grade | Adjust | Installation size (mm) |
YSST-8025-004 | 96PCS*1W(2 model) | L538*W350*H106 | 6.6 | Grey | AL | IP65 | 113° | D60 |
YSST-10035-004 | 144PCS*1W(3 model) | L638*W350*H106 | 8.3 |
YSST-12035-004 | 144PCS*1W(3 model) | L638*W350*H106 | 8.3 |
YSST-15045-004 | 192PCS*1W(4 model) | L738*W350*H106 | 10.1 |
YSST-18045-004 | 192PCS*1W(4 model) | L738*W350*H106 | 10.1 |
YSST-20055-004 | 240PCS*1W(5 model) | L838*W350*H106 | 11.7 |
2.Electrical parameters
Model | Power(W) | Input Voltage(V) | efficiency (%) | Power Factor |
YSST-8025-004 | 80W | AC100-240V 50-60Hz | >90 | >0.95 |
YSST-10035-004 | 100W |
YSST-12035-004 | 120W |
YSST-15045-004 | 150W |
YSST-18045-004 | 180W |
YSST-20055-004 | 200W |
3.Optical parameters
Model | CCT(K) | Lumen (lm/W) | Illuminance (6M/8M/10M/12M) | Beam angle | CRI |
YSST-8025-004 | 2700-6500K | 104±10% | 55/30/20/14 Lux | 90*135° | >80 |
YSST-10035-004 | 100±10% | 62/35/23/16 Lux |
YSST-12035-004 | 100±10% | 70/39/26/18 Lux |
YSST-15045-004 | 100±10% | 92/48/32/20 Lux |
YSST-18045-004 | 100±10% | 104/55/37/24 Lux |
YSST-20055-004 | 100±10% | 116/59/40/26 Lux |
Storage and usage environment
Storage temperature | -20ºC~+65ºC |
Operating temperature | -20ºC~+45ºC(25ºC best) |
Ambient humidity | 20-90%RH |
Life and warranty
Lifespan | 3(Lumen maintain70%) |
Warranty | 3 years |
Packing Information
Model | Packing material | Outer size L*W*H(mm) | CTN/PCS (PCS) | Gross weight (KG) |
YSST-8025-004 | Outer box K=K | L578*W390*H146 | 1 | ±5% |
YSST-10035-004 | L673*W390*H146 | ±5% |
YSST-12035-004 | L678*W390*H146 | ±5% |
YSST-15045-004 | L778*W390*H146 | ±5% |
YSST-18045-004 | L863*W390*H146 | ±5% |
YSST-20055-004 | L963*W390*H146 | ±5% |
Instruments:
1. Please read the product specifications, confirm compliance with the conditions for use environment on the specifications, before installation;
2. Before the product access to power, make sure the switch is off;
3. Lighting by a qualified electrician to install, in line with IEE wiring electrical standards or national standards;
4. This product is suitable for indoor;
5. Do not use under high or low voltage state in a long-term, it will affect the normal use of the function and life;
6. Do not install used within flammable objects, no matter what the circumstances, the lamp is not to be covered by insulation material or similar;
7. Installation, replacement, cleaning the lamps, must cut off the power, to ensure personal safety
8. When finding lamp not working (self-extinguishing, flashing), check the connection plug contact performance, and power supply voltage , if normal, the fault persists, replaced by a new lamp;
9. When cleaning, use a soft cloth to wipe wring soap stick, wipe with a dry cloth, please do not use banana water until clean light surface volatile substances, do not spray any chemicals on the lamp, the lamp may be discolored or damaged;
10. Do not disassemble the product on their own, in order to avoid damage to the internal components. Disassemble that is not entitled to warranty service.
