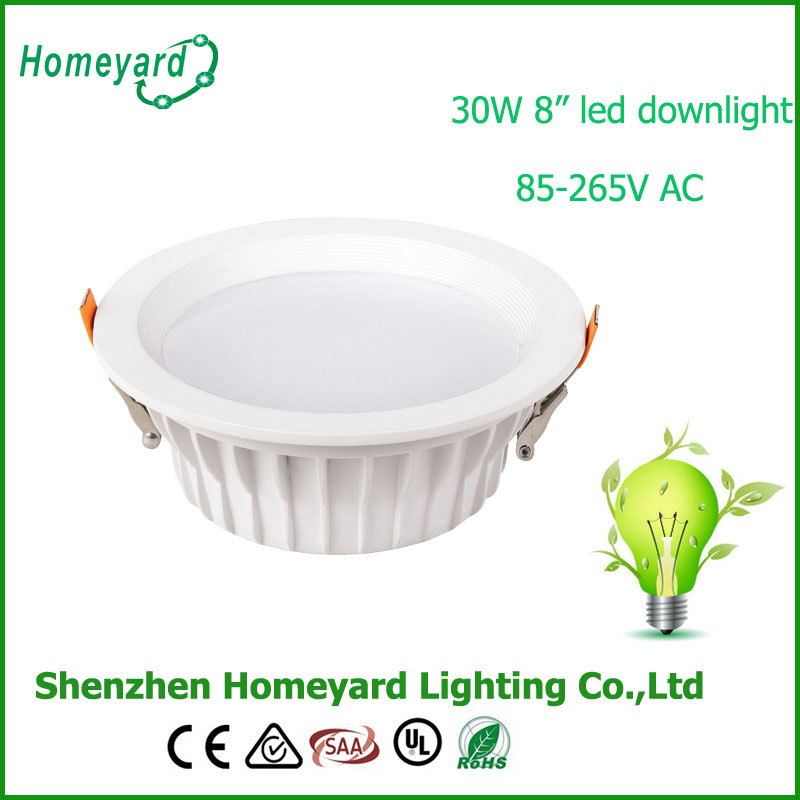

smd 5630 led downlight/8inch/smd led down-light
Model:HR-LD-SMD030WT38B
Power:30W
led type:smd 5630
led Qty:60pcs
CCT:2800-7500K
work Voltage:AC85-265V
Size:8inch
Body size:242*63MM
Cut Size:210MM
Total lumen:2700Lm
Product Description
2015 Hot Selling led downlight
1.Advantages:
1.Energy saving up to 70% than normal fluorescent lamp
2.Removable & Rotatable end-cap
3.Special circuit design,each LED works separately,If one fails,it doesn't affect other LED's work
4.Special structure design with excellent heat dissipation,120 viewing angle
5.50000 hours life span, 3 years' warranty
6. Isolated driver PF>0.9, driver efficiency>85%
2.Transport
* Express(UPS, DHL, FEDEX, TNT, etc) is available.
* Sea and Air delivery is available.
3.Delivery Time
* Offcial order- 10-20 working days after receiving the payment.
Sample order- 4-5working days after receiving the payment depend on the stock condition.
4.Payment
wester union/T/T,30% deposit and 70% balance before shipment
5. certification
CE ROHS SGS SAA
Benefits:
1. Low energy consumption: Compared with the traditional fluorescent tubes can be saved electricity about 60-80%
2. Long life span: 50000 hours, is 3.5 times than the traditional fluorescent tube light
3. Self-developed: Adopt the current driver power supply, with over-current, over voltage, lightning, high temperature protection
4. Interchangeable: Working voltage is AC110-240V, which can be used all the countries of the world, comply with the safety regulations.
Application:
* Living room, bedroom, kitchen, washroom;
* School, university, hospital, hotel;
* Conference, meeting room, show room, showcase;
* Commercial complexes;
* Factory, plant, warehouse, office;
* Supermarket, department store.
* PARK
| Item | Specification |
| Product Name | 8 inch SMD 5630 SMD LED Down-Light |
| Model | HR-LD-SMD030WT38B |
| Voltage | 85-265VAC 50-60HZ |
| Output current | 300-600mA |
| Power | 30W |
| Dimension | 8inch |
| Beam angle | 60° |
| Color range | 3000K/4000K |
| Life Span | >50000hrs |
| Work temperature | -20 -+50 degree |
| Fixture Material | Aluminium |
| Surface color | Silver/Brass/Shining White/Matt White |
| Lamp Head | Fixed |
| Protection Rate | IP20 |
| Certification | SGS,CE ,ROHS |
| Luminious flux | 2400lm (natural white) |
| Color Temperature | 3000K/4000k |
| Color Render Index | Ra≥85 |
| Power factor | ≥ 0.93 |
| Lumens Decline | 30% per 50000hrs |
| Warranty | 3 year |
| · Long life >50000hrs |
|
|
| · Economical |
|
|
| · Easily and fastly installl or replace traditional lamp |
|
|
| Feature | · Good color and luster |
|
|
| · Power saving and low cost |
|
|
| · Applicability |
|
|
| · Green |
|
|
| · Shake proof |
| Application | · Home and office lighting |
|
| · Shopping mall lighting |
|
| · Display case lighting |
|
| · Under cabinet lighting |
|
| · Art lighting |
|
| · Board lighting |
Shenzhen Homeyard Lighting Co., Ltd. is LED industry lighting manufacturer of design, production and international trade. The manufacturer address in Shenzhen, China. Our company advocate energy saving, environmental-friendly lighting. In the LED lighting market, we provide customers with LED industry lighting products of high energy saving. Low brightness declines and long lifespan, as well as the leading solutions application. We have a superior R & D team mainly focus on the research and development of the semi- high-end commercial LED lighting products. By virtue of leading design and advanced technology, We not only have got many certifications. Such as CE, RoHS, FCC, PSE, but also got many national patents. We specialized in the production of out door lighting. Such as LED high bay light, LED tunnel light, LED flood light, LED street light and so on. Our products are exported to many countries, such as Germany, America, Russia, Australia, Singapore, Japan etc. We adhere to the principle of "technology first, quality first, service first". In the advanced management system and strict quality control measures, we will bring more high-quality, high-energy and long life LED lighting products for the world.
