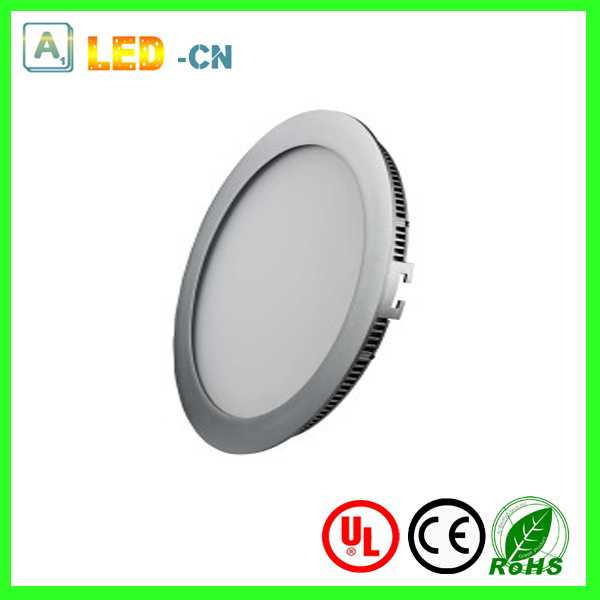

Diameter 180mm SMD3528 7w LED round panel light
Size: 180× 13mm
Input Voltage: AC100-240V
Current: 220mA± 10mA
Power: 7W
Light source: SMD-3528
LED chips: Epister Highpower
LED Qty: 88pcs
Colour temp: 5500-7000k
7W 180mm LED Round Panel Light
Diffuse angle: 170degree
CRI: >Ra70
Luminous flux: 550lm
Illumination(lm): 360lux
Lifetime: 30000 hrs
Working Temp: <40centigrade
Material: Alum+PMMA
IP Rating: IP65
Features of Panel light:
1. Unique and super-slim designation. The thickest part of the product is only 8.5 mm
2. Wide range of voltage which can be used all over the world. Constant current all through 85 V-264 VAC voltage range ensures protect the lifespan and brightness from voltage fluctuations.
3. Environmental-friendly: No mercury, no pollution. Assembly components can be very easily dismantled and outfit. Other people can recycle them without the help of manufacturers.
4. Safe and reliable. The driver isolates the high voltage and low voltage which ensure safety
5. More than 30000 hour's lifespan can save a lot of maintenance expense
6. No ultraviolet (UV) and infrared (IR) radiation. Human won't grow flecks even under the light long time.
7. High range of color temperature, almost all the color temperatures are available.
8. The light is very soft.
Led ceiling panel application place
This LED Panel light is widely used in shopping mall, exclusiue shop, restaurant, 4S shop, factory, hospital and amusemet place.
Size:dia180×13mm
Input Voltage: AC100-240V
Current: 220mA±10mA
Power: 6W
Light source:SMD-3528
LED chips: Epister Highpower
LED Qty:88pcs
Colour temp : 5500-7000k |
Diffuse angle: 170degree
CRI:>Ra70
Luminous flux:550lm
Illumination(lm):360lux
Lifetime: 30000 hrs
Working Temp: <40C
Material: Alum+PMMA
IP Rating:IP65 |
