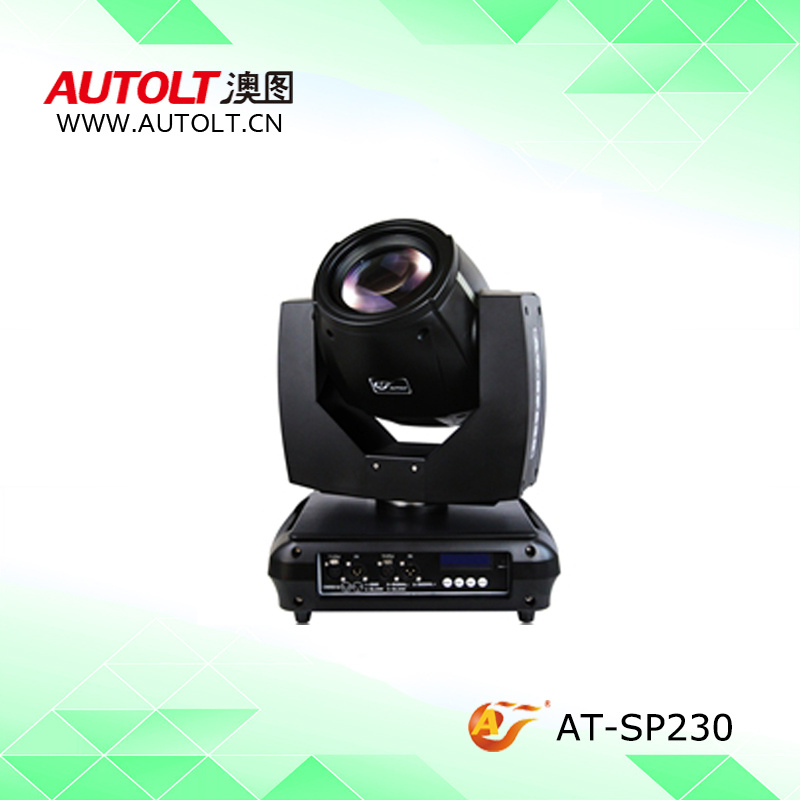

7r 230W Moving Head Beam Light
Features:
>>IP54 outdoor lighting
>>Metal halide Osram bulb
>>14 colors for color wheel
>>17 gobos for gobo wheel
>>Normally 2 years warranty
Specification:
Rated Voltage | AC 110~240V 50/60HZ |
Power Factor | >0.93 |
Rated Power | 300W |
Light Source Power | 230W |
Insulation Resistance | >2MΩ |
Leakage Current | <10mA |
Ballast | Electronic Ballast |
Electronic Safety Class | Class I |
E S D Protection | IEC61000-4 |
Lamp Type | Metal Halide |
Lamp Brand | OSRAM |
CRI | Ra>90 |
Lamp Lifespan | 2000Hours |
Beam Angle | 2°~4° adjustable |
Color Temperature | 8000K |
Housing Material | Aluminum Alloy & heat-proof Engineering Plastic |
Dimension | 337 X 379X 486mm |
Weight | 19Kg |
Installation | Can be hung upside down |
Communication Protocol | USITT DMX512(1990) |
DMX Channels | 16CHS(Standard mode) 20CHS(Expand mode) |
Temperature Detect | Automatically cut the lamp power when overheating |
Color | 14 colors |
Gobo | 17 gobos |
Prism | 1 rotation prism, variable speed rotating |
Strobe | Mechanical Strobe |
Focus | 2°~4°adjustable |
Console Control | Remote control lamp on/off by console |
Rotation Angle | X-axis 540° ; Y-axis 250° |
Rotation Speed | Horizontal 3.2S / Vertical1.9S |
IP Rating | IP54 |
Working Temperature | -25ºC~45ºC |
Cooling system | With rapid-speed cooling fan |
Channels | Channels Mode |
Standard mode function | Expand mode function |
1 | Color wheel | Color wheel |
2 | Strobe | Strobe |
3 | Dimmer | Dimmer |
4 | Static gobo | Static gobo |
5 | Prism | Prism |
6 | Prism rotation | Prism rotation |
7 | Effect movement | Effect movement |
8 | Frost | Frost |
9 | Focus | Focus |
10 | Horizontal | Horizontal |
11 | Horizontal micro-adjustment | Horizontal micro-adjustment |
12 | Vertical | Vertical |
13 | Vertical micro-adjustment | Vertical micro-adjustment |
14 | Empty operation | Empty operation |
15 | Reset | Reset |
16 | Lamp control | Lamp control |
17 | XY speed | Horizontal-vertical speed adjustment |
18 | Color wheel speed | Color wheel speed adjustment |
19 | Effect speed | Effect speed adjustment |
20 | Gobo speed | Gobo speed adjustment |
Why Choose us?
>>AUTOLT is a modern factory, owning good management, advanced production equipments, professional production lines and excellent quality control system.
>>AUTOLT R&D team launches new products constantly, leading the technology development in outdoor lighting.
>>Aiming to Mid and High-end market, AUTOLT applys with "quality first and service upmost" for long-term development.
>>AUTOLT owns rich experience in glorious projects, such as 2008 Olympic Games, 2010 Asia games, 2014 Youth Olympics, and 60th/65th/66th anniversary PRC founding, 70th anniversary anti-war victory on Sep.3rd,etc.
>>AUTOLT is very glad to offer you technical support and designing proposals anytime.
Service:
Price term | EXW, FOB,CIF |
Payment method | T/T, Western Union |
MOQ | 1PCS |
Delivery time | Sample order ---in about 3-15days |
20" container----In about 20-30days |
40" container----in about 25-45days |
Shipping method | DHL/UPS/FEDEX/TNT/EMS,etc |
By air |
By sea |
Packing | Carton packing,with PE bag and EPE for protecting lights from damage. |
Flightcase packing |
Warranty | 2 years, during this period, we'll offer you spare parts for free. |
Service | OEM, ODM and warm welcome you to become AUTOLT agent and lifetime technical service. |
